The scRNA-seq UMAP Circles Plot (“circles within circles”) places a single-cell UMAP embedding at the centre of the figure and wraps it with concentric circular annotation tracks — an inner ring with one sector per cell type, plus additional rings for condition groups and original samples. The sector order of the outer rings follows the clusters of the central embedding, so readers can read the “continuous cell atlas plane” and the “discrete cluster-level annotations” from a single figure.

The design was popularised by the Linnarsson lab’s Nature paper on the molecular architecture of the developing mouse brain, where a central t-SNE is surrounded by a radial dendrogram and colour rings annotating cluster classes, brain region, age, and cell cycle. The plot1cell R package turns this style into a few callable functions for any Seurat object, and it is routinely used for high-impact single-cell atlas figures.

In this tutorial we use plot1cell to draw the classic three-ring layout: a central UMAP coloured by cell type with density contours, a Cluster ring with per-cluster axes, and outer rings mapping disease/time-point groups and sequencing samples onto each cluster.

Note

If you want to reproduce this tutorial locally: all code chunks are set to eval: false because the plot1cell package is installed from GitHub and pulls several heavy dependencies (including a large human genome annotation package) that are not part of the Bizard build environment. The rendered figure above was produced by running exactly this code on a simulated dataset; simply copy the chunks into an R session where plot1cell is installed. The next section gives a fast, reproducible way to build that environment with micromamba.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming Language: R

  • Dependent packages: plot1cell, Seurat, circlize, randomcoloR, dplyr, ggplot2

Example

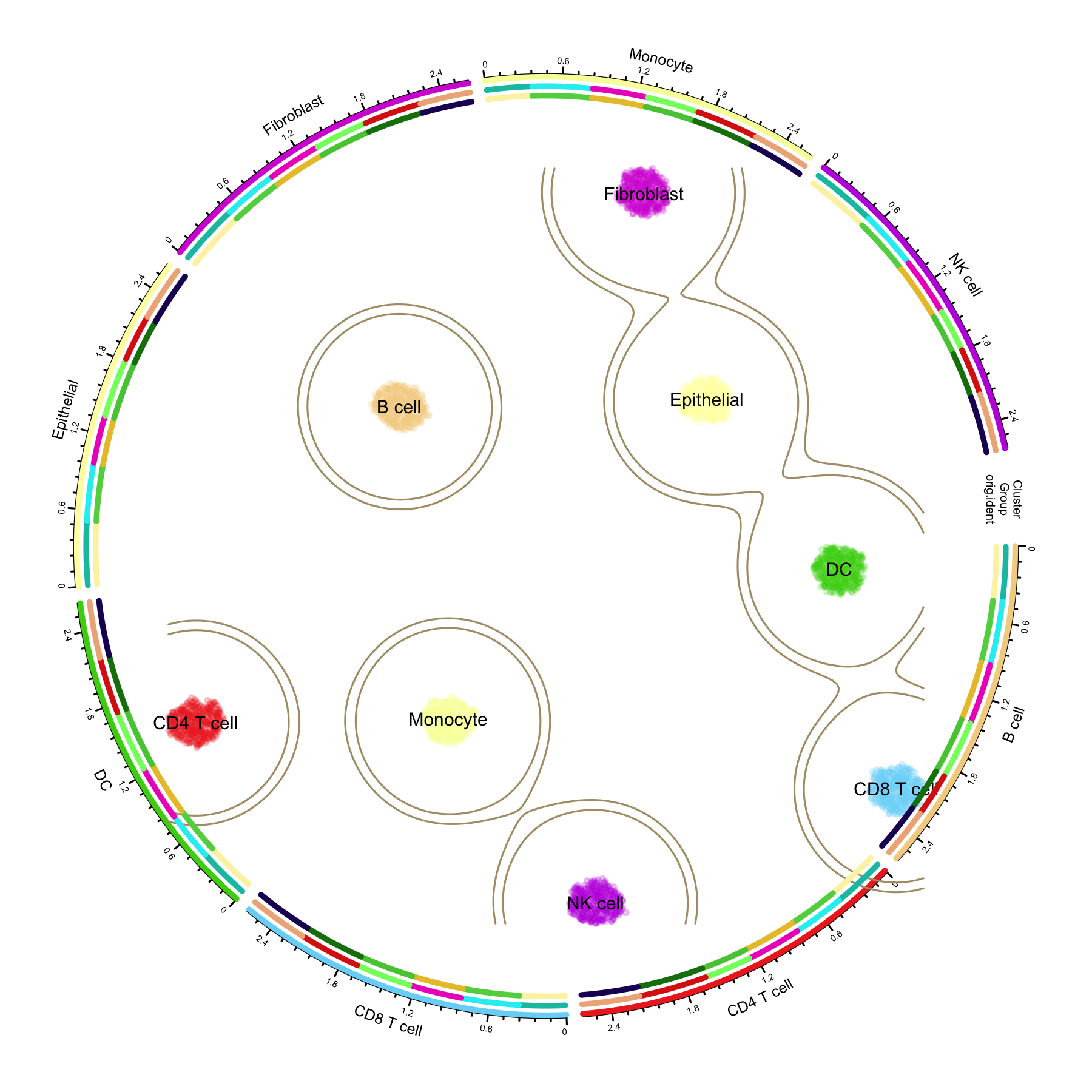

scRNA-seq UMAP Circles Plot DEMO

Data Preparation

Reference data: mouse acute kidney injury atlas

The plot1cell vignette ships an installer that downloads the mouse ischemia-reperfusion injury (IRI) single-cell dataset (GSE139107, published in PNAS 2020, “Cell profiling of mouse acute kidney injury reveals conserved cellular responses to injury”), integrates the six time-point samples with Seurat RPCA integration, and caches the result as an RDS file (more than 120,000 cells across 26 cell types):

library(plot1cell)
iri.integrated <- Install.example()

dir.create("data", showWarnings = FALSE)
saveRDS(iri.integrated, file = "data/iri.integrated.rds")

Simulated PBMC-style data (used for the demo figure)

To keep the tutorial self-contained, the demo figure is drawn from a simulated PBMC-style dataset: 3,360 cells across 8 cell types with marker-gene block structure, 6 sample groups, and 3 tissue sites. If you already have an integrated Seurat object, skip this block and read your own rds file instead.

library(Seurat)
set.seed(2026)

n_per_type <- 420
cell_types <- c("CD4 T cell", "CD8 T cell", "NK cell", "B cell",
                "Monocyte", "DC", "Fibroblast", "Epithelial")
n_type <- length(cell_types)
n_cell <- n_per_type * n_type
n_gene <- 1200
markers_per <- 40

gene_names <- paste0("Gene", 1:n_gene)
counts <- matrix(rnbinom(n_cell * n_gene, size = 4, prob = 0.25), n_gene, n_cell)
counts <- matrix(as.integer(pmin(counts, 30)), n_gene, n_cell)

# Add a marker block for each cell type
cell_idx <- rep(seq_len(n_type), each = n_per_type)
for (i in seq_len(n_type)) {
  block <- ((i - 1) * markers_per + 1):(i * markers_per)
  boost <- rnbinom(length(block) * sum(cell_idx == i), size = 8, prob = 0.2)
  counts[block, cell_idx == i] <- pmin(counts[block, cell_idx == i] + as.integer(boost), 120)
}
rownames(counts) <- gene_names
colnames(counts) <- paste0("Cell_", 1:n_cell)

# Sample-level metadata: 6 samples map to 6 injury time-point groups
groups <- c("Control", "4hours", "12hours", "2days", "14days", "6weeks")
site_lv <- c("Tumor", "Normal", "Margin")
orig.ident <- factor(sample(paste0("Sample_", 1:6), n_cell, TRUE))
lut <- setNames(rep(groups, length.out = 6), levels(orig.ident))
Group <- factor(lut[as.character(orig.ident)], levels = groups)
site <- factor(sample(site_lv, n_cell, TRUE), levels = site_lv)
celltype <- factor(rep(cell_types, each = n_per_type), levels = cell_types)

meta <- data.frame(
  celltype = celltype, Group = Group, orig.ident = orig.ident, site = site,
  row.names = colnames(counts)
)

sce <- CreateSeuratObject(counts = counts, meta.data = meta)
sce <- NormalizeData(sce, verbose = FALSE)
sce <- FindVariableFeatures(sce, nfeatures = 800, verbose = FALSE)
sce <- ScaleData(sce, verbose = FALSE)
sce <- RunPCA(sce, npcs = 20, verbose = FALSE)
sce <- RunUMAP(sce, dims = 1:15, verbose = FALSE)
Idents(sce) <- "celltype"

saveRDS(sce, "data/sce_sim.rds")

Data requirements of the circles plot

Three properties of the Seurat object drive the figure:

  1. Cell identities (Idents) define both the colour of the central UMAP and the sectors of the circular layout. Give the identity factor meaningful levels in a sensible order.
  2. Active identity levels determine the number of sectors, gaps, and colour count — prepare_circlize_data() reads levels(seu_obj) directly.
  3. Metadata columns for the outer tracks (Group, orig.ident, …) must exist in seu_obj@meta.data; factors are recommended so that track segment colours map consistently.
iri.integrated <- readRDS("data/iri.integrated.rds")
# Group needs to be a factor with meaningful level order
iri.integrated@meta.data$Group <- factor(
  iri.integrated@meta.data$Group,
  levels = c("Control", "4hours", "12hours", "2days", "14days", "6weeks")
)

dim(iri.integrated)
DefaultAssay(iri.integrated)
names(iri.integrated@reductions)
levels(iri.integrated)
levels(iri.integrated$Group)
colnames(iri.integrated@meta.data)

Visualization

Figure structure

  • Centre: the UMAP; each point is a cell, coloured by cell type, with KDE density contours separating major populations.
  • Ring 1 (Cluster): a circular track with one sector per cell type; each cell is assigned to the sector of its cluster, ordered by polar coordinate, with per-sector axes.
  • Outer rings (add_track): additional annotation rings (here Group and orig.ident) laid on top of ring 1, so every cluster arc is subdivided into condition/sample segments.

Build the circlize data and draw the three-ring figure

library(plot1cell)
sce <- readRDS("data/sce_sim.rds")

# 1. Transform the Seurat object: extract metadata + UMAP coordinates and
#    map every cell to its polar position on the circle
circ_data <- prepare_circlize_data(sce, scale = 0.8)

# 2. Colors. Fix the random seed so the random palette is reproducible.
set.seed(1234)
cluster_colors <- rand_color(length(levels(sce)))
group_colors <- rand_color(length(names(table(sce$Group))))
rep_colors <- rand_color(length(names(table(sce$orig.ident))))

# 3. Draw into a 6-inch square PNG at 300 dpi
png(filename = "circlize_plot.png", width = 6, height = 6, units = "in", res = 300)

# Central UMAP: points + density contours + cluster labels
plot_circlize(
  circ_data,
  do.label = TRUE,
  pt.size = 0.4,
  col.use = cluster_colors,
  bg.color = "white",
  kde2d.n = 200,
  repel = TRUE,
  label.cex = 0.6
)

# Ring 2: injury/time-point group track; Ring 3: sample track
add_track(circ_data, group = "Group", colors = group_colors, track_num = 2)
add_track(circ_data, group = "orig.ident", colors = rep_colors, track_num = 3)

dev.off()

Key parameters worth tuning:

Parameter Where Effect
scale prepare_circlize_data() Shrinks/expands the central UMAP relative to the rings (0.6–0.9 works well)
pt.size plot_circlize() Point size of the central UMAP; lower it for >50k cells
kde2d.n plot_circlize() Grid resolution of the density contours; raise for large atlases
contour.levels plot_circlize() Absolute density thresholds passed to contour() (default c(0.2, 0.3); values in 0–1)
bg.color plot_circlize() Canvas colour; "#F9F2E4" gives the warm paper look of the original paper
repel, label.cex plot_circlize() Cluster label repelling and font size
track_lwd add_track() Thickness of each annotation ring segment

References

[1] Wu H. plot1cell: A package for single cell data visualization. https://github.com/TheHumphreysLab/plot1cell

[2] La Manno G, Siletti K, Furlan A, et al. Molecular architecture of the developing mouse brain. Nature. 2021;596(7870):92–96. https://doi.org/10.1038/s41586-021-03775-x (source of the circles-within-circles design)

[3] Kirita Y, Wu H, Uchimura K, Wilson PC, Humphreys BD. Cell profiling of mouse acute kidney injury reveals conserved cellular responses to injury. PNAS. 2020;117(27):15874–15883. https://doi.org/10.1073/pnas.2005477117 (GSE139107 example data)

[4] 新叶910. plot1cell：绘制不一样的单细胞umap圈中圈. WeChat article. https://mp.weixin.qq.com/s/IxwniDMSju02R2wGMC9EvQ
