Parliament

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Parliament plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/parliament?lang=en

The parliamentary chart is a data processing method that looks like a parliamentary seat, with points representing a data set to show the share ratio of each group more flexibly.

Setup

System Requirements: Cross-platform (Linux/MacOS/Windows)
Programming language: R
Dependent packages: data.table; jsonlite; ggpol; ggplot2

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggpol", quietly = TRUE)) {
  install.packages("https://cran.r-project.org/src/contrib/Archive/ggpol/ggpol_0.0.7.tar.gz")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggpol)
library(ggplot2)

sessioninfo::session_info("attached")

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 ggplot2    * 4.0.1   2025-11-14 [1] RSPM
 ggpol      * 0.0.7   2025-12-23 [1] Github (erocoar/ggpol@0844060)
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

The loaded data are groups and their corresponding values.

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/parliament/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# View data
head(data)

  group value
1    G1   200
2    G2    46
3    G3    92
4    G4    80
5    G5   150

Visualization

# Parliament
p <- ggplot(data) +
  geom_parliament(alpha = 1, aes(seats = value, fill = group), color = "black") +
  coord_fixed() +
  scale_fill_discrete(name = "group", labels = unique(data$group)) +
  scale_fill_manual(values = c("#E64B35FF","#4DBBD5FF","#00A087FF","#3C5488FF",
                                "#F39B7FFF")) +
  ggtitle("Parliament Plot") +
  theme_void() +
  theme(legend.position = "bottom",
        plot.title = element_text(hjust = 0.5))

p

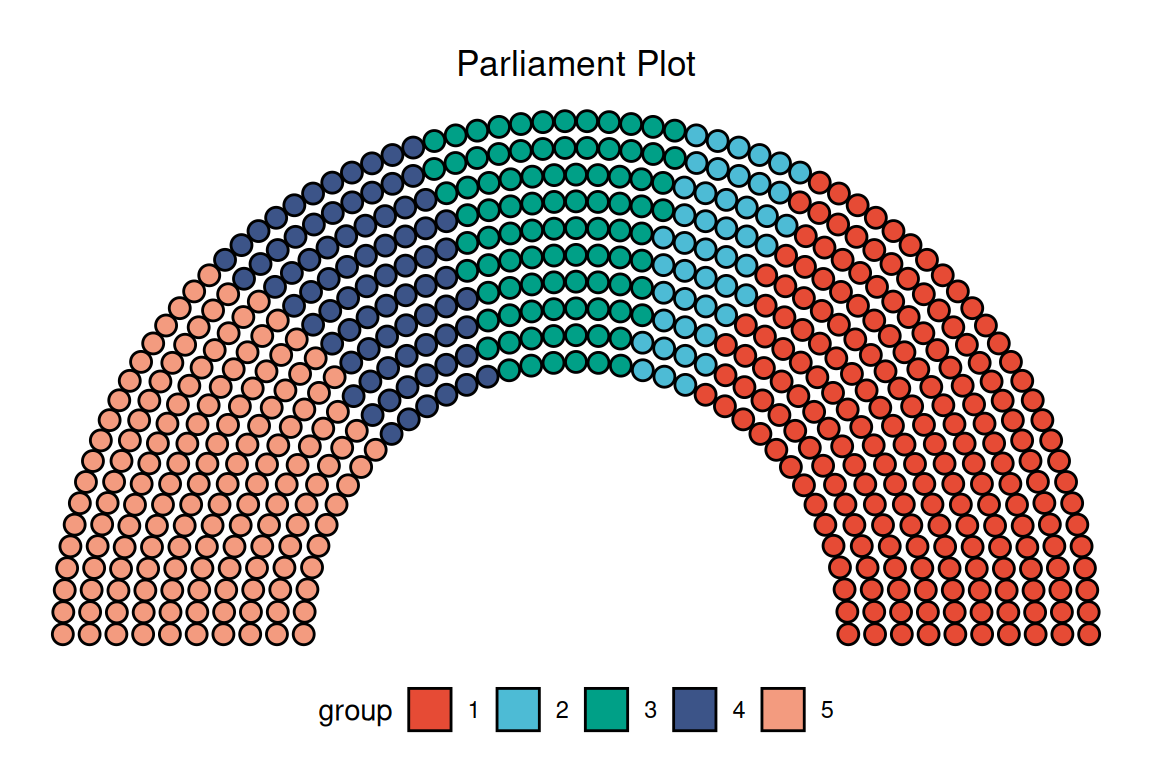

Different colors represent different groups, and each dot represents one data point. It’s a semicircle of points, the smallest fraction of which can be represented by a single point in a parliamentary diagram.
