EnhancedMA

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot EnhancedMA plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/pseudo-enhanced-ma?lang=en

Visualization of differentially expressed genes.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; EnhancedVolcano

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("EnhancedVolcano", quietly = TRUE)) {
  remotes::install_github('kevinblighe/EnhancedVolcano')
}

# Load packages
library(data.table)
library(jsonlite)
library(EnhancedVolcano)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package         * version date (UTC) lib source
 data.table      * 1.18.0  2025-12-24 [1] RSPM
 EnhancedVolcano * 1.29.1  2025-12-03 [1] Github (kevinblighe/EnhancedVolcano@b1f351b)
 ggplot2         * 4.0.1   2025-11-14 [1] RSPM
 ggrepel         * 0.9.6   2024-09-07 [1] RSPM
 jsonlite        * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/pseudo-enhanced-ma/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# Convert data structure
row.names(data) <- data[,1]
data <- data[,-1]
data$baseMeanNew <- 1 / (10^log(data$baseMean + 1))

# View data
head(data)
              baseMean log2FoldChange      lfcSE       stat       pvalue
COL6A3    8.494143e+04    -0.34453583 0.07607842 -4.5305972 5.881720e-06
ZNF157    2.456747e+00    -0.42976616 0.33693867 -1.2957785 1.950518e-01
RPL23P11  0.000000e+00             NA         NA         NA           NA
SCARNA10  4.406548e-01    -0.05657159 0.15265730 -0.2329492 8.158009e-01
RNU6-857P 0.000000e+00             NA         NA         NA           NA
TOPORS    5.331777e+02     0.10709656 0.12572643  0.8549637 3.925712e-01
                  padj  baseMeanNew
COL6A3    6.207728e-05 4.469624e-12
ZNF157              NA 5.750056e-02
RPL23P11            NA 1.000000e+00
SCARNA10            NA 4.314220e-01
RNU6-857P           NA 1.000000e+00
TOPORS    6.148749e-01 5.239278e-07

Visualization

# EnhancedMA
p <- EnhancedVolcano(
  data, lab = rownames(data), title = "MA plot", subtitle = "EnhancedMA",
  x = 'log2FoldChange', y = 'baseMeanNew', xlab = bquote(~Log[2]~ 'fold change'),
  ylab = bquote(~Log[e]~ 'base mean + 1'), ylim = c(0,12),
  pCutoff = as.numeric(1e-05), FCcutoff = 1, pointSize = 3.5,
  labSize = 4, boxedLabels = T, colAlpha = 1,
  legendLabels = c('NS', expression(Log[2]~FC),
                   'Mean expression',
                   expression(Mean-expression~and~log[2]~FC)),
  legendPosition = "bottom", legendLabSize = 16, legendIconSize = 4.0,
  encircleCol = 'black', encircleSize = 2.5, encircleFill = 'pink',
  encircleAlpha = 1/2) +
  coord_flip() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

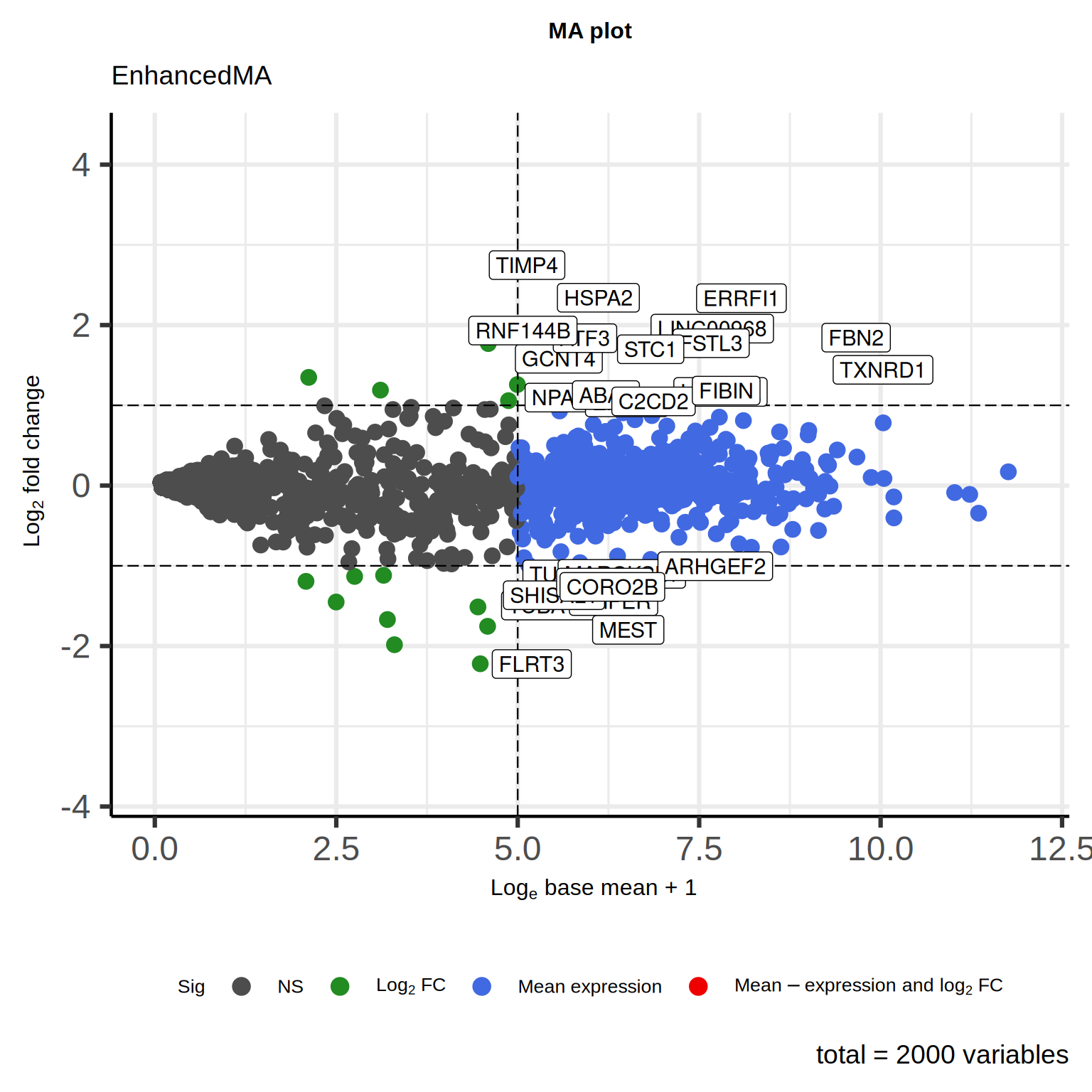

FigureΒ 1: EnhancedMA
