World Map

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot World Map plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/map-world?lang=en

Setup

System Requirements: Cross-platform (Linux/MacOS/Windows)
Programming language: R
Dependent packages: ggplot2; RColorBrewer

# Install packages
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("RColorBrewer", quietly = TRUE)) {
  install.packages("RColorBrewer")
}

# Load packages
library(ggplot2)
library(RColorBrewer)

Data Preparation

# Load data
data <- read.delim("files/Hiplot/116-map-world-data.txt", header = T)
dt_map <- readRDS("files/Hiplot/world.rds")

# Convert data structure
dt_map$Value <- data$death_rate[match(dt_map$ENG_NAME, data$region)]

# View data
head(data)

          region death_rate
1    Afghanistan       13.4
2        Albania        6.8
3        Algeria        4.3
4 American Samoa        5.9
5        Andorra        7.3
6         Angola        9.2

Visualization

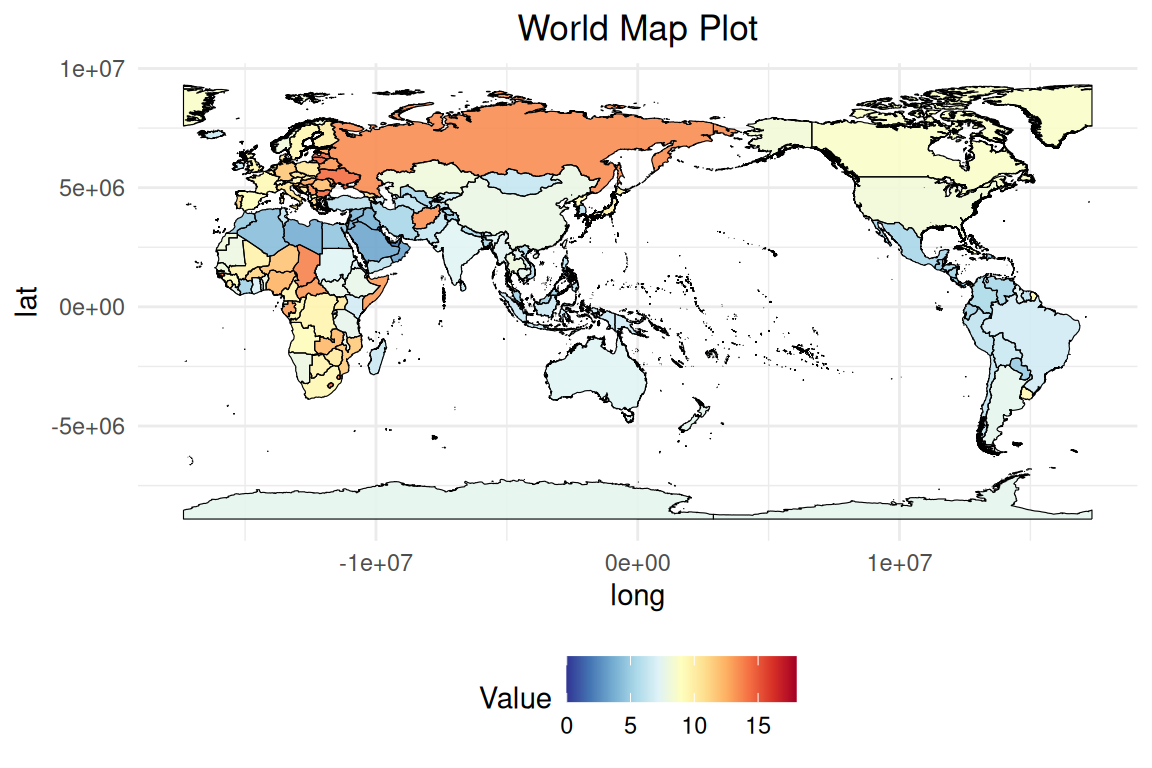

# World Map
p <- ggplot(dt_map) +
  geom_polygon(aes(x = long, y = lat, group = group, fill = Value),
               alpha = 0.9, size = 0.5) +
  geom_path(aes(x = long, y = lat, group = group),
            color = "black", size = 0.2) +
  scale_fill_gradientn(
    colours = colorRampPalette(rev(brewer.pal(11,"RdYlBu")))(500),
    na.value = "grey10",
    limits = c(0, max(dt_map$Value) * 1.2)) +
    ggtitle("World Map Plot") +
  theme_minimal() +
  theme(plot.title = element_text(hjust = 0.5),
        legend.position = "bottom", legend.direction = "horizontal")

p
