Easy SOM

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-10-27

🤖 AI Skill — Download the Bizard unified skill for your AI assistant ⬇️ Download Skill ZIP
🔌 MCP Server — Let AI agents (Claude Code, Cursor, …) query Bizard live: claude mcp add bizard -- npx @openbiox/bizard-mcp — or the free hosted instance (no install, faster from mainland China): claude mcp add --transport http bizard http://biotree.top:38123/bizard-mcp/mcp 📖 MCP Docs
📖 Cite Bizard — if Bizard helps your research, please cite: Li, K., Zheng, H., Huang, K., et al. (2026). Bizard: A Community-Driven Platform for Accelerating and Enhancing Biomedical Data Visualization. iMetaMed, e70038. 🔗 DOI / BibTeX
Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Easy SOM plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/easy-som?lang=en

Establish the SOM model and conduct the visulization.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; kohonen

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("kohonen", quietly = TRUE)) {
  install.packages("kohonen")
}

# Load packages
library(data.table)
library(jsonlite)
library(kohonen)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.6.0 (2026-04-24)
 os       Ubuntu 24.04.4 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-05-09
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.9.37 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.4  2026-05-06 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 kohonen    * 3.0.13  2026-01-22 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.6.0/lib/R/site-library
 [3] /opt/R/4.6.0/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/easy-som/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
target <- data[,1]
target <- factor(target, levels = unique(target))
data <- data[,-1]
data <- as.data.frame(data)
for (i in 1:ncol(data)) {
  data[,i] <- as.numeric(data[,i])
}
data <- as.matrix(data)
set.seed(7)
kohmap <- xyf(scale(data), target, grid = somgrid(xdim=6, ydim=4, topo="hexagonal"), rlen=100)

color_key <- c("#A50026","#D73027","#F46D43","#FDAE61","#FEE090","#FFFFBF","#E0F3F8",
               "#ABD9E9","#74ADD1","#4575B4","#313695")
colors <- function (n, alpha, rev = FALSE) {
  colorRampPalette(color_key)(n)
}

# View data
head(data[,1:5])
     alcohol malic acid  ash ash alkalinity magnesium
[1,]   12.86       1.35 2.32           18.0       122
[2,]   12.88       2.99 2.40           20.0       104
[3,]   12.81       2.31 2.40           24.0        98
[4,]   12.70       3.55 2.36           21.5       106
[5,]   12.51       1.24 2.25           17.5        85
[6,]   12.60       2.46 2.20           18.5        94

Visualization

# Easy SOM
p <- function () {
  par(mfrow = c(3,2))
  xyfpredictions <- classmat2classvec(getCodes(kohmap, 2))
  plot(kohmap, type="counts", col = as.integer(target),
       palette.name = colors,
       pchs = as.integer(target),
       main = "Counts plot", shape = "straight", border = NA)

  som.hc <- cutree(hclust(object.distances(kohmap, "codes")), 3)
  add.cluster.boundaries(kohmap, som.hc)

  plot(kohmap, type="mapping",
       labels = as.integer(target), col = colors(3)[as.integer(target)],
       palette.name = colors,
       shape = "straight",
       main = "Mapping plot")

  ## add background colors to units according to their predicted class labels
  xyfpredictions <- classmat2classvec(getCodes(kohmap, 2))
  bgcols <- colors(3)
  plot(kohmap, type="mapping", col = as.integer(target),
       pchs = as.integer(target), bgcol = bgcols[as.integer(xyfpredictions)],
       main = "Another mapping plot", shape = "straight", border = NA)

  similarities <- plot(kohmap, type="quality", shape = "straight",
                       palette.name = colors)

  plot(kohmap, type="codes", shape = "straight",
       main = c("Codes X", "Codes Y"), palette.name = colors)
}

p()

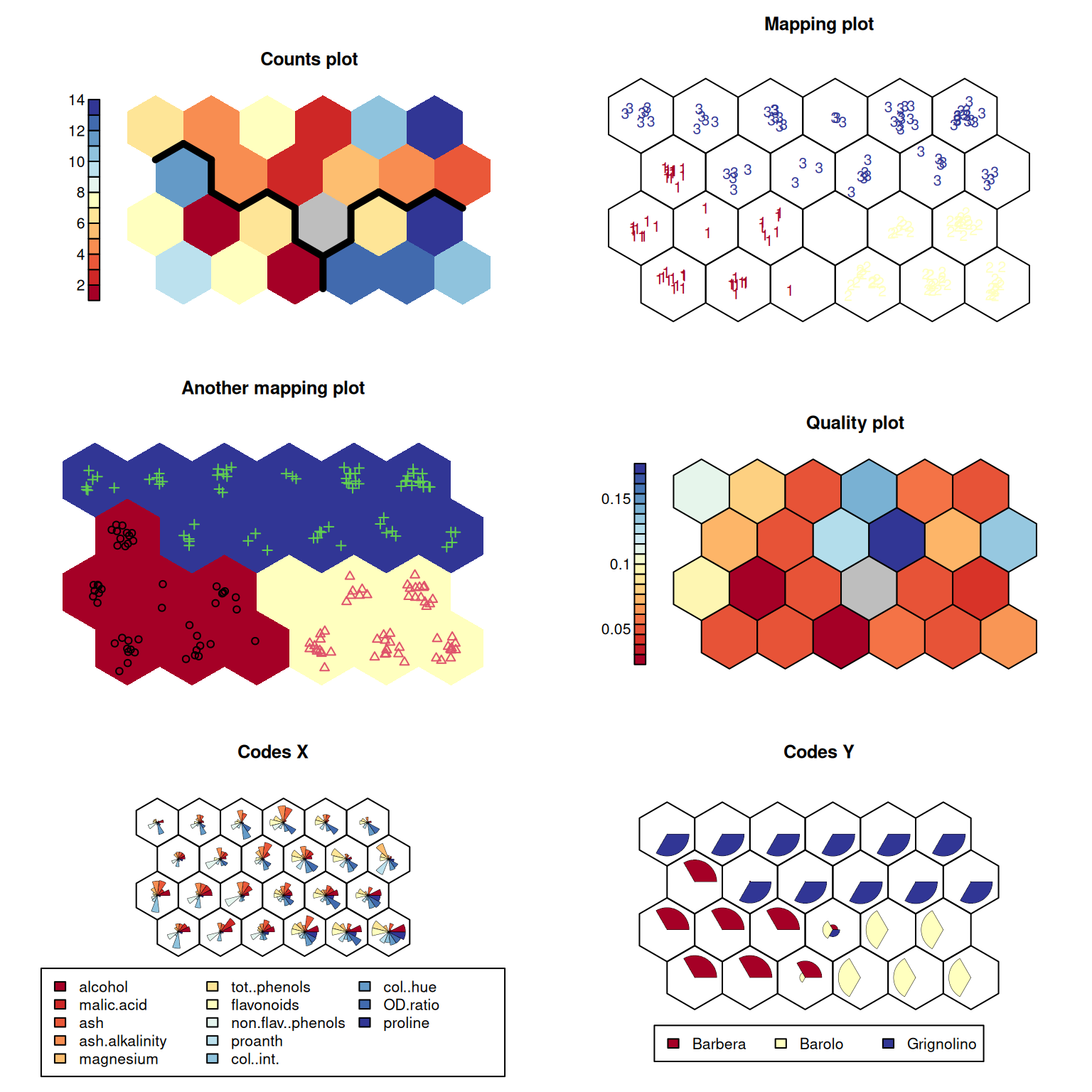

Figure 1: Easy SOM
