Visualizing directed acyclic graphs.

Setup

System Requirements: Cross-platform (Linux/MacOS/Windows)
Programming language: R
Dependent packages: ggdag

# Install packages
if (!requireNamespace("ggdag", quietly = TRUE)) {
  install.packages("ggdag")
}

# Load packages
library(ggdag)

sessioninfo::session_info("attached")

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.6.0 (2026-04-24)
 os       Ubuntu 24.04.4 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-05-09
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.9.37 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package * version date (UTC) lib source
 ggdag   * 0.2.13  2024-07-22 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.6.0/lib/R/site-library
 [3] /opt/R/4.6.0/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
tidy_ggdag <- dagify(
  y ~ x + z2 + w2 + w1,
  x ~ z1 + w1 + w2,
  z1 ~ w1 + v,
  z2 ~ w2 + v,
  w1 ~ ~w2, # bidirected path
  exposure = "x",
  outcome = "y") %>%
  tidy_dagitty()

# View data
head(tidy_ggdag)

$data
# A tibble: 13 × 8
   name       x        y direction to      xend   yend circular
   <chr>  <dbl>    <dbl> <fct>     <chr>  <dbl>  <dbl> <lgl>
 1 v      1.50   0.00162 ->        z1     0.506 -0.999 FALSE
 2 v      1.50   0.00162 ->        z2     0.516  1.01  FALSE
 3 w1    -0.332 -0.489   ->        x     -0.949 -0.569 FALSE
 4 w1    -0.332 -0.489   ->        y     -0.927  0.598 FALSE
 5 w1    -0.332 -0.489   ->        z1     0.506 -0.999 FALSE
 6 w1    -0.332 -0.489   <->       w2    -0.318  0.451 FALSE
 7 w2    -0.318  0.451   ->        x     -0.949 -0.569 FALSE
 8 w2    -0.318  0.451   ->        y     -0.927  0.598 FALSE
 9 w2    -0.318  0.451   ->        z2     0.516  1.01  FALSE
10 x     -0.949 -0.569   ->        y     -0.927  0.598 FALSE
11 y     -0.927  0.598   <NA>      <NA>  NA     NA     FALSE
12 z1     0.506 -0.999   ->        x     -0.949 -0.569 FALSE
13 z2     0.516  1.01    ->        y     -0.927  0.598 FALSE

$dag
dag {
v
w1
w2
x [exposure]
y [outcome]
z1
z2
v -> z1
v -> z2
w1 -> x
w1 -> y
w1 -> z1
w1 <-> w2
w2 -> x
w2 -> y
w2 -> z2
x -> y
z1 -> x
z2 -> y
}

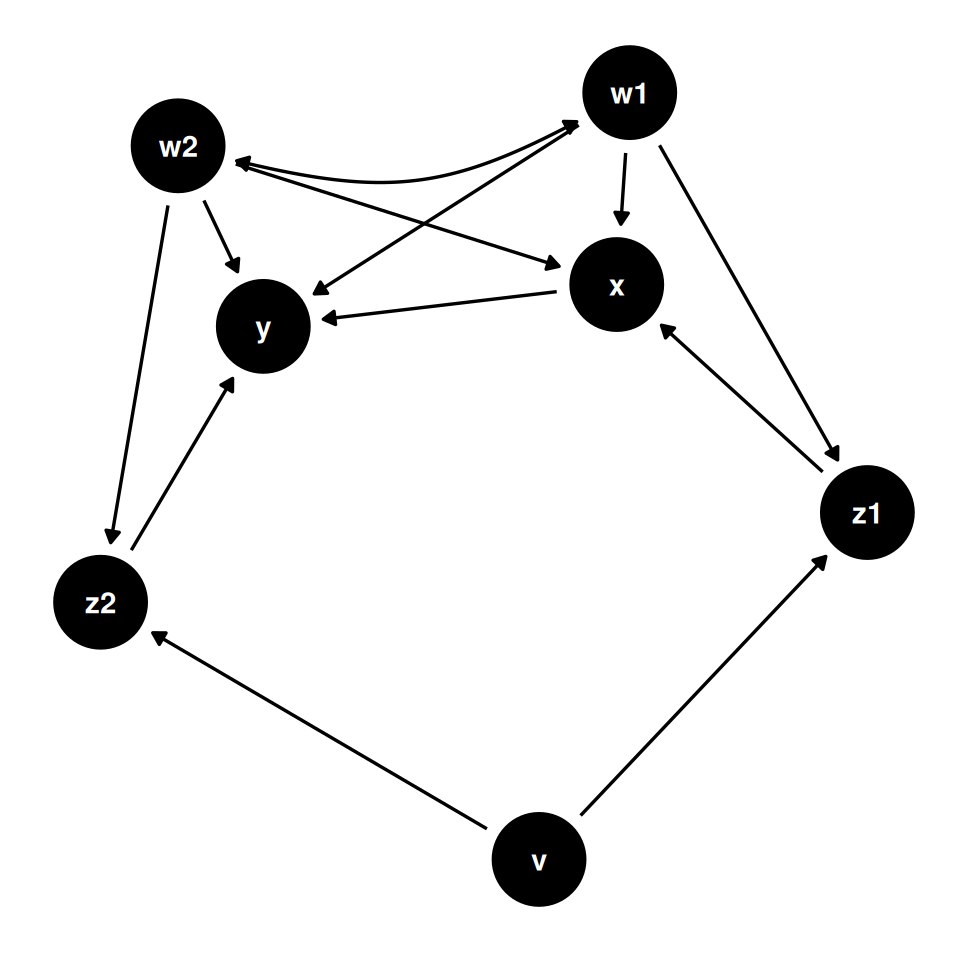

Visualization

# Directed Acyclic Graphs
p <- ggdag(tidy_ggdag) +
  theme_dag()

p
