Eulerr Plot

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Eulerr Plot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/eulerr?lang=en

Setup

System Requirements: Cross-platform (Linux/MacOS/Windows)
Programming language: R
Dependent packages: data.table; jsonlite; eulerr; ggplotify

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("eulerr", quietly = TRUE)) {
  install.packages("eulerr")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}

# Load packages
library(data.table)
library(jsonlite)
library(eulerr)
library(ggplotify)

sessioninfo::session_info("attached")

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 eulerr     * 7.0.4   2025-09-24 [1] RSPM
 ggplotify  * 0.1.3   2025-09-20 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/eulerr/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
genes <- as.numeric(data[, 2])
names(genes) <- as.character(data[, 1])
euler_set <- euler(genes)

# View data
head(data)

      Term Value
1       SE    13
2    Treat    28
3 Anti-CCP   101
4    DAS28    91
5 SE&Treat     1
6 SE&DAS28    14

Visualization

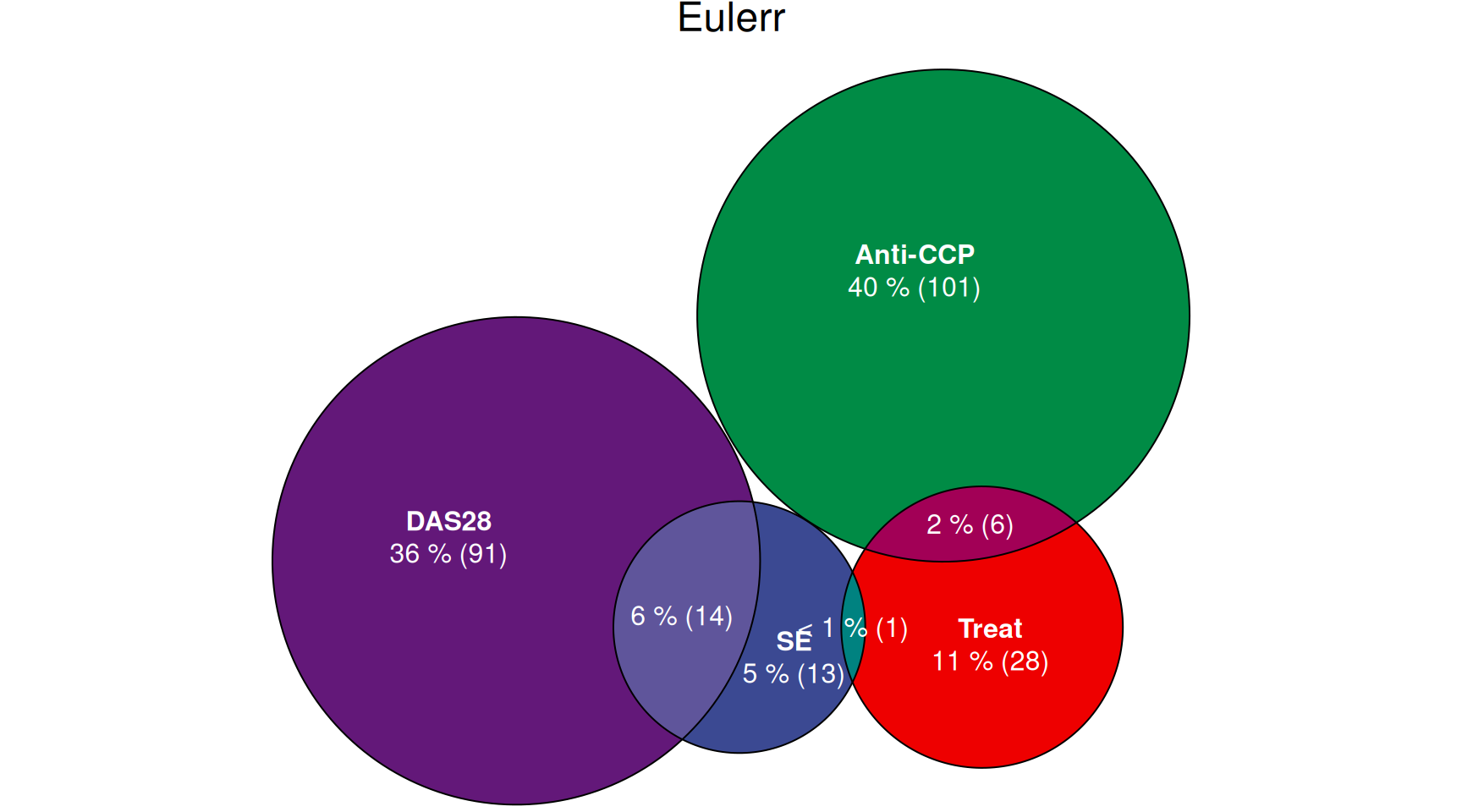

# Eulerr Plot
fill <- c("#3B4992FF","#EE0000FF","#008B45FF","#631879FF","#008280FF","#BB0021FF",
          "#5F559BFF","#A20056FF")
p <- as.ggplot(
  plot(euler_set,
    labels = list(col = rep("white", length(genes))),
    fills = list(fill = fill),
    quantities = list(type = c("percent", "counts"),
    col = rep("white", length(genes))),
    main = "Eulerr")
)

p
