Multiple Barplot&Line

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Multiple Barplot&Line plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/barplot-line-multiple?lang=en

Displaying multiple bar or line plot in one diagram.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; ggplot2; reshape2; ggthemes

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("reshape2", quietly = TRUE)) {
  install.packages("reshape2")
}
if (!requireNamespace("ggthemes", quietly = TRUE)) {
  install.packages("ggthemes")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggplot2)
library(reshape2)
library(ggthemes)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 ggplot2    * 4.0.1   2025-11-14 [1] RSPM
 ggthemes   * 5.2.0   2025-11-30 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 reshape2   * 1.4.5   2025-11-12 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

Data frame with multiple columns data (Numeric).

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/barplot-line-multiple/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
data_melt <- melt(data, id.vars = colnames(data)[1])
data_melt[, 1] <- factor(data_melt[, 1], level = unique(data_melt[, 1]))

# View data
head(data)
  age height weight math biology english chinese
1  12    158    100  120      90     115     140
2  15    160    110  145      80     120     120
3  18    175    120  132      95     118     110
4  20    176    121  124      99     118     136
5  21    176    120  135      98     114     150
6  22    177    124  140      87     110     150

Visualization

1. Multiple Line

# Multiple Line
p <- ggplot(data = data_melt, aes(x = age, y = value, group = variable,
                                  colour = variable)) +
  geom_line(alpha = 1, size = 1) +
  geom_point(aes(shape = variable), alpha = 1, size = 3) +
  labs(title = "Line (Multiple)", x = "X Lable", y = "Value") +
  scale_color_manual(values = c("#3B4992FF","#EE0000FF","#008B45FF","#631879FF",
                               "#008280FF","#BB0021FF")) +
  theme_stata() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

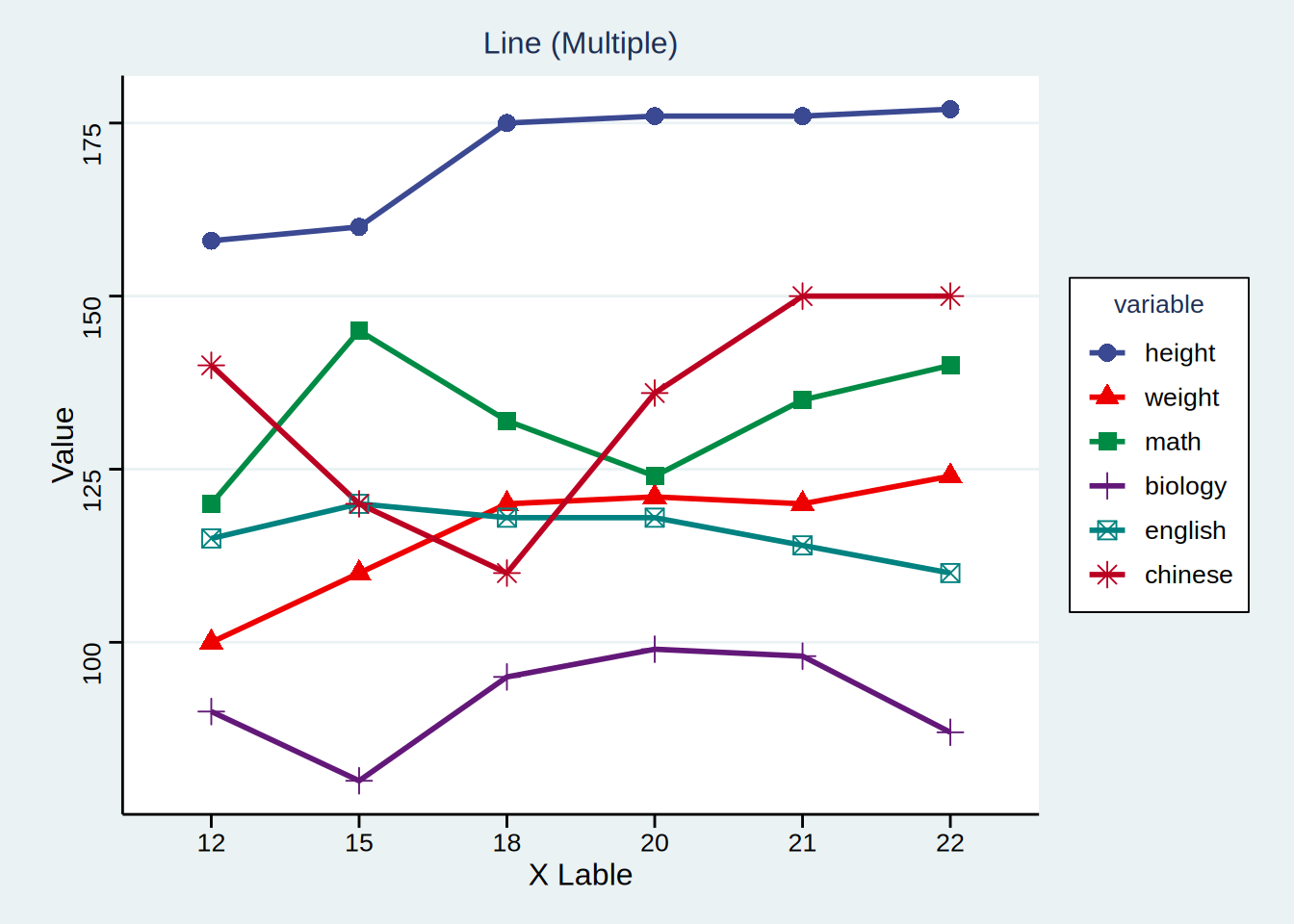

FigureΒ 1: Multiple Line

2. Multiple Barplot

# Multiple Barplot
p <- ggplot(data = data_melt, aes(x = age, y = value, fill = variable)) +
  geom_bar(stat = "identity", position = position_dodge(), colour = "black",
           alpha = 1) +
  labs(title = "", x = "X Lable", y = "Value") +

  scale_fill_manual(values = c("#3B4992FF","#EE0000FF","#008B45FF","#631879FF",
                               "#008280FF","#BB0021FF")) +
  theme_stata() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

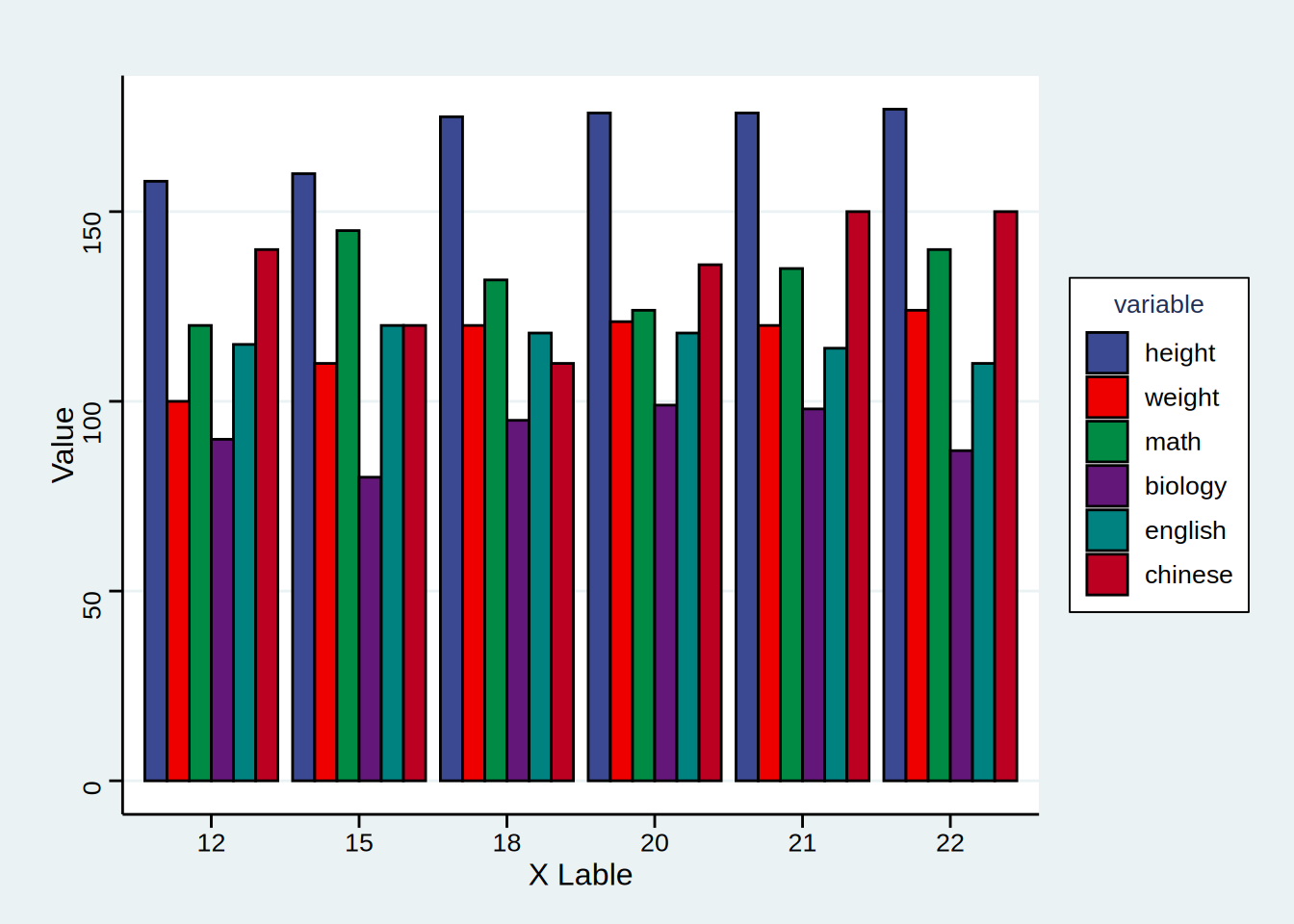

FigureΒ 2: Multiple Barplot
