Area charts emphasize the magnitude of one or more quantities over an ordered axis by filling the region under the line; stacked variants decompose a total into layers, and a streamgraph stacks layers around a wobbling baseline for a smooth composition-over-time view. In biomedical research they fit immune-population dynamics, sequencing output over runs, or cohort accrual. matplotlib provides fill_between and stackplot.

Example

Setup

• System Requirements: Cross-platform (Linux/MacOS/Windows)
• Programming Language: Python
• Dependencies: matplotlib, pandas, numpy

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np

Data Preparation

We simulate weekly flow-cytometry counts of three lymphocyte populations across an 8-week vaccination study.

np.random.seed(71)

weeks = np.arange(1, 9)
populations = {
    'CD4 T': 400 * np.exp(0.10 * weeks) + np.random.normal(0, 25, 8),
    'CD8 T': 300 * np.exp(0.16 * weeks) + np.random.normal(0, 22, 8),
    'B cells': 200 * np.exp(0.06 * weeks) + np.random.normal(0, 15, 8),
}
counts = pd.DataFrame(populations, index=weeks)
counts.index.name = 'Week'
colors = ['#8da0cb', '#e78ac3', '#66c2a5']

Visualization

Single Area Chart

fill_between shades the region between a curve and a baseline — the minimal emphasis form for one series.

fig, ax = plt.subplots(figsize=(6.2, 4))
ax.fill_between(counts.index, counts['CD8 T'], color='#e78ac3', alpha=0.45)
ax.plot(counts.index, counts['CD8 T'], color='#d05fa2', linewidth=1.8)
ax.set_xlabel('Week')
ax.set_ylabel('Cell count (×10$^3$)')
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

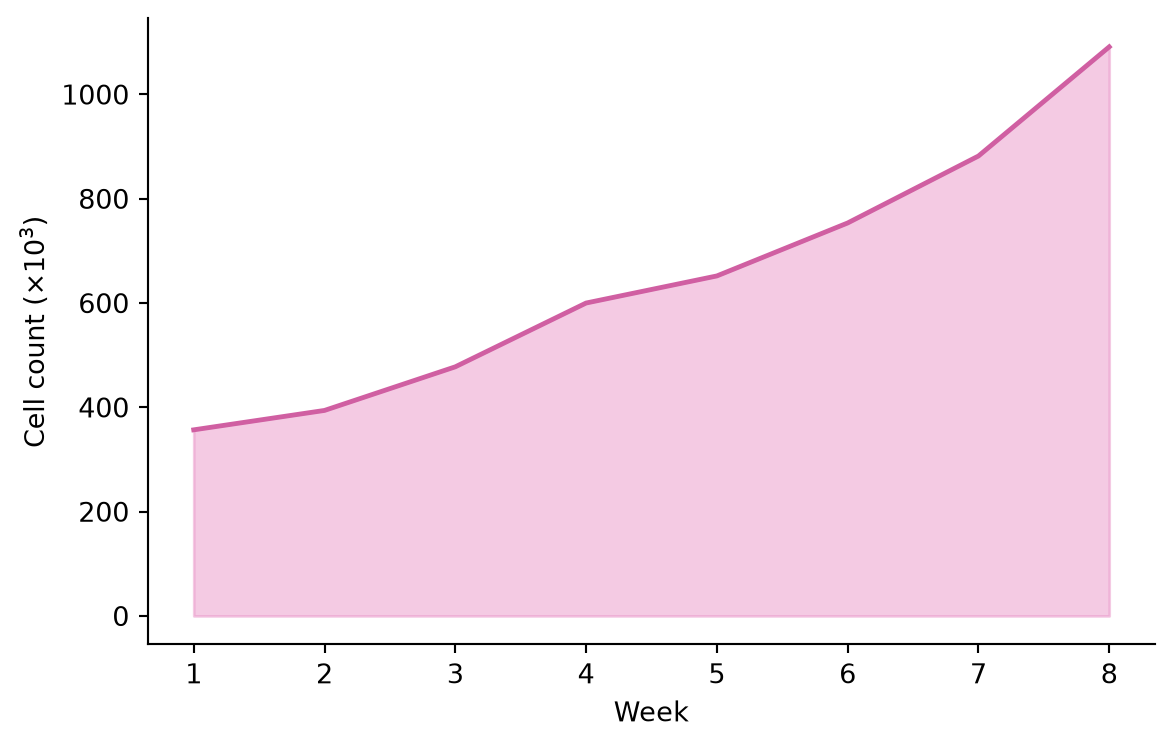

Figure 1: CD8 T-cell counts over the vaccination course

Stacked Area Chart

stackplot layers the populations so the envelope reads as the total while the bands show each contribution.

fig, ax = plt.subplots(figsize=(6.5, 4.2))
ax.stackplot(counts.index, [counts[c] for c in counts.columns],
             labels=counts.columns, colors=colors, alpha=0.85,
             edgecolor='white', linewidth=0.6)
ax.set_xlabel('Week')
ax.set_ylabel('Cell count (×10$^3$)')
ax.legend(frameon=False, loc='upper left')
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

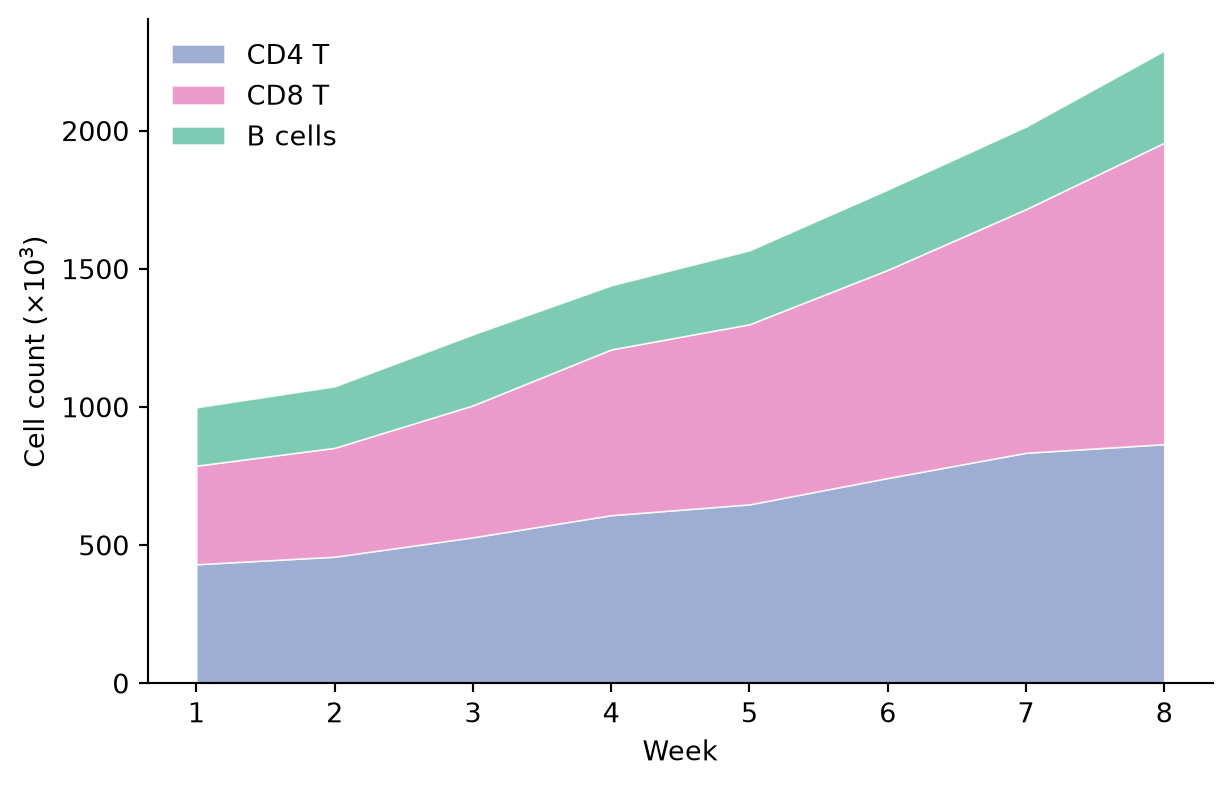

Figure 2: Stacked lymphocyte counts across the study weeks

Streamgraph

A streamgraph (“wiggle” baseline) centers the stack so the eye follows the shape of each band rather than a zero line — attractive for composition-over-time posters and covers.

fig, ax = plt.subplots(figsize=(7, 4.2))
ax.stackplot(counts.index, [counts[c] for c in counts.columns],
             labels=counts.columns, colors=colors, alpha=0.9,
             baseline='wiggle', edgecolor='white', linewidth=0.6)
ax.set_xlabel('Week')
ax.set_ylabel('Cell count (×10$^3$, offset baseline)')
ax.spines[['top', 'right', 'left']].set_visible(False)
ax.set_yticks([])
ax.legend(frameon=False, loc='upper left', bbox_to_anchor=(1.01, 1.0))
plt.tight_layout()
plt.show()

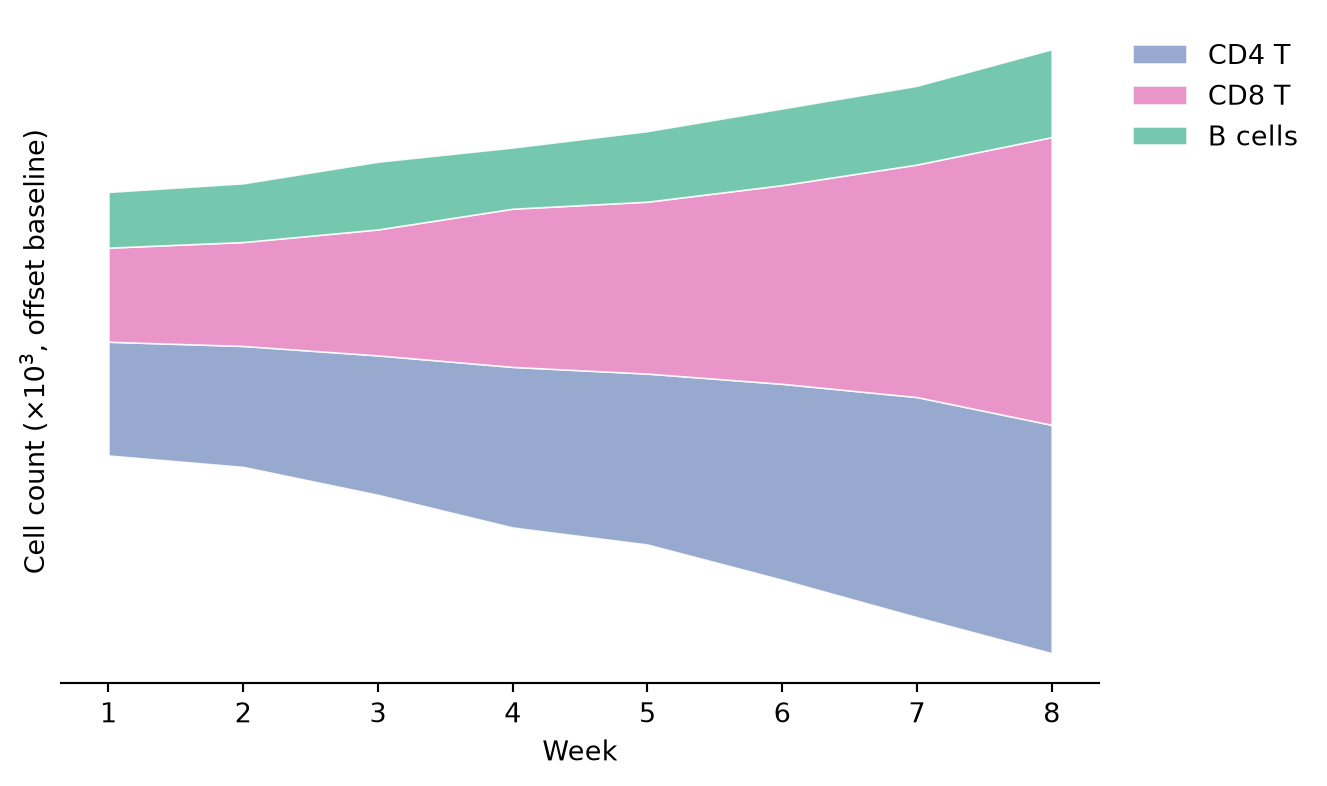

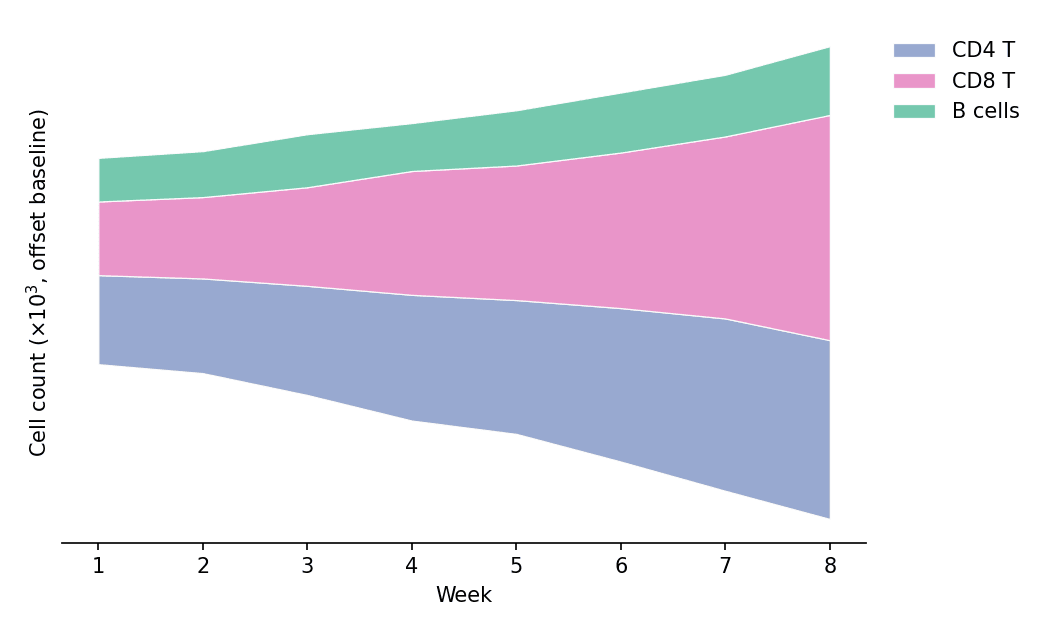

Figure 3: Streamgraph of lymphocyte composition (wiggle baseline)

References

1. Hunter, J. D. (2007). Matplotlib: A 2D graphics environment. Computing in Science & Engineering, 9(3), 90-95.
2. From Data to Viz. Stacked area chart. https://www.data-to-viz.com/graph/stackedarea.html
