Fishplot

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Fishplot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/fishplot?lang=en

Clone evolution analysis

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; fishplot

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("fishplot", quietly = TRUE)) {
  remotes::install_github("chrisamiller/fishplot")
}

# Load packages
library(data.table)
library(jsonlite)
library(fishplot)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 fishplot   * 0.5.2   2025-11-02 [1] Github (chrisamiller/fishplot@3336c93)
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/fishplot/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# View data
head(data)
  timepoints parents sample.name event1 event2 event3 event4
1          0       0     Sample1    100      2      2     98
2         30       1     Sample1     45      0      0      0
3         75       1     Sample1      0      0      2     95
4        150       3     Sample1      0      0      1     40

  • timepoints: specifying the timepoints for each column of the matrix

  • parents: specifying parental relationships between clones

  • samplename: samplename (support multiple samples)

  • other: a numeric matrix containing tumor fraction estimates for all clones at all timepoints

Visualization

## Create a fish object
fish = createFishObject(as.matrix(data[,4:7]), parents=data$parents,
                        timepoints=data$timepoints,
                        col = c("#888888","#e8130c","#f8150d","#55158f"))
## Calculate the layout of the drawing
fish = layoutClones(fish)
## Draw the plot, using the splining method (recommended), and providing both timepoints to label and a plot title
fishPlot(fish,shape="spline", title.btm="Sample1", title = "Fishplot",
         cex.title=1, vlines=c(0,30,75,150),
         vlab=c("Day 0","Day 30","Day 75","Day 150"))

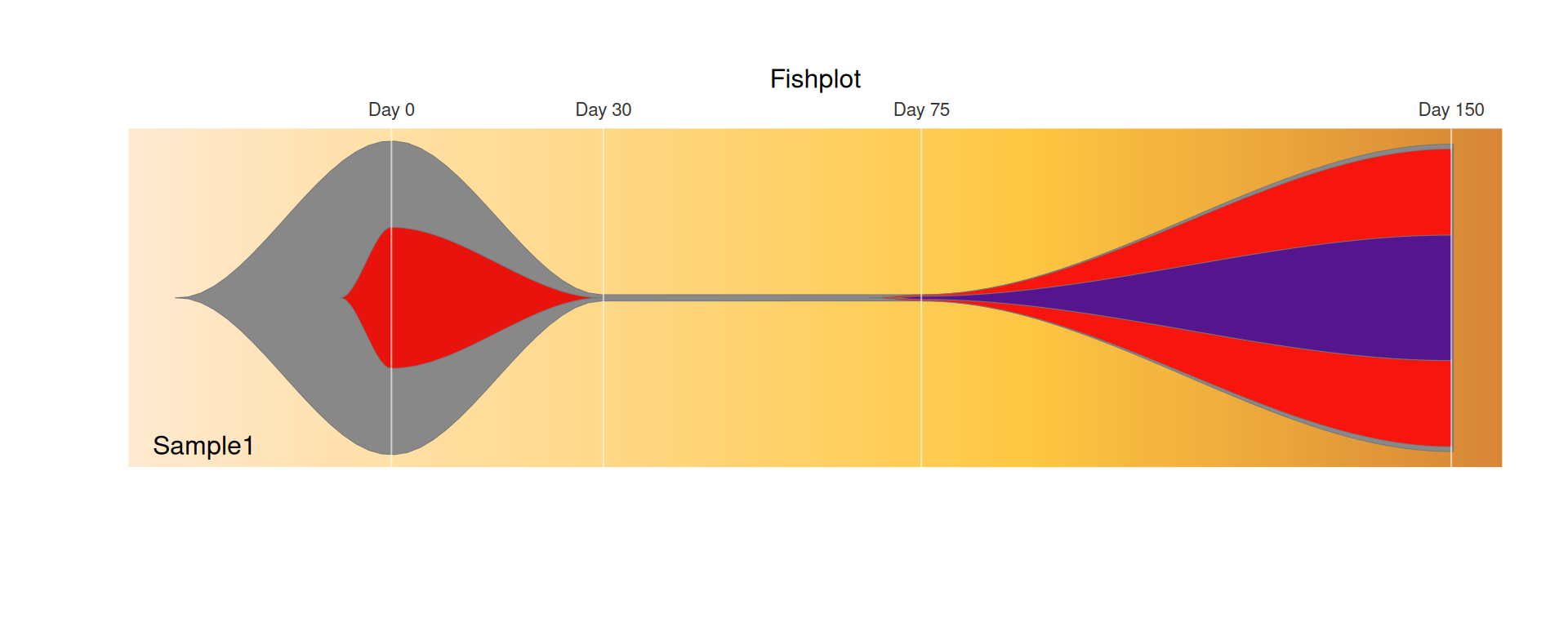

FigureΒ 1: Fishplot
