Diffusion Map

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Diffusion Map plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/diffusion-map?lang=en

Diffusion Map is a nonlinear dimensionality reduction algorithm that can be used to visualize developmental trajectories.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; destiny; ggplotify; scatterplot3d; ggpubr

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("destiny", quietly = TRUE)) {
  install.packages("https://github.com/theislab/destiny/archive/refs/tags/v3.1.1.tar.gz")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}
if (!requireNamespace("scatterplot3d", quietly = TRUE)) {
  install.packages("scatterplot3d")
}
if (!requireNamespace("ggpubr", quietly = TRUE)) {
  install.packages("ggpubr")
}

# Load packages
library(data.table)
library(jsonlite)
library(destiny)
library(ggplotify)
library(scatterplot3d)
library(ggpubr)
library(smoother)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package       * version date (UTC) lib source
 data.table    * 1.18.0  2025-12-24 [1] RSPM
 destiny       * 3.25.0  2025-11-06 [1] Github (theislab/destiny@8cc0bff)
 ggplot2       * 4.0.1   2025-11-14 [1] RSPM
 ggplotify     * 0.1.3   2025-09-20 [1] RSPM
 ggpubr        * 0.6.2   2025-10-17 [1] RSPM
 jsonlite      * 2.0.0   2025-03-27 [1] RSPM
 scatterplot3d * 0.3-44  2023-05-05 [1] RSPM
 smoother      * 1.3     2024-04-03 [1] RSPM
 TTR           * 0.24.4  2023-11-28 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data1 <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/diffusion-map/data.json")$exampleData[[1]]$textarea[[1]])
data1 <- as.data.frame(data1)
data2 <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/diffusion-map/data.json")$exampleData[[1]]$textarea[[2]])
data2 <- as.data.frame(data2)

# convert data structure
sample.info <- data2
rownames(data1) <- data1[, 1]
data1 <- as.matrix(data1[, -1])
## tsne
set.seed(123)
dm_info <- DiffusionMap(t(data1))
dm_info <- cbind(DC1 = dm_info$DC1, DC2 = dm_info$DC2, DC3 = dm_info$DC3)
dm_data <- data.frame(
  sample = colnames(data1),
  dm_info
)

colorBy <- sample.info[match(colnames(data1), sample.info[, 1]), "Group"]
colorBy <- factor(colorBy, level = colorBy[!duplicated(colorBy)])
dm_data$colorBy = colorBy

# View data
head(dm_data)
   sample        DC1        DC2         DC3 colorBy
M1     M1 0.05059918 0.15203860 -0.06533168      G1
M2     M2 0.05030863 0.14435034 -0.06044277      G1
M3     M3 0.04271398 0.09273382 -0.02730427      G1
M4     M4 0.04680742 0.10425273 -0.03789962      G1
M5     M5 0.04971521 0.12786900 -0.05608321      G1
M6     M6 0.04840072 0.12728303 -0.05256815      G1

Visualization

1. 2D

# 2D Diffusion Map
p <- ggscatter(data = dm_data,  x = "DC1", y = "DC2", color = "colorBy",
               size = 2, palette = "lancet", alpha = 1) +
  labs(color = "Group") +
  ggtitle("Diffusion Map") +
  scale_color_manual(values = c("#3B4992FF","#EE0000FF","#008B45FF")) +
  theme_classic() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

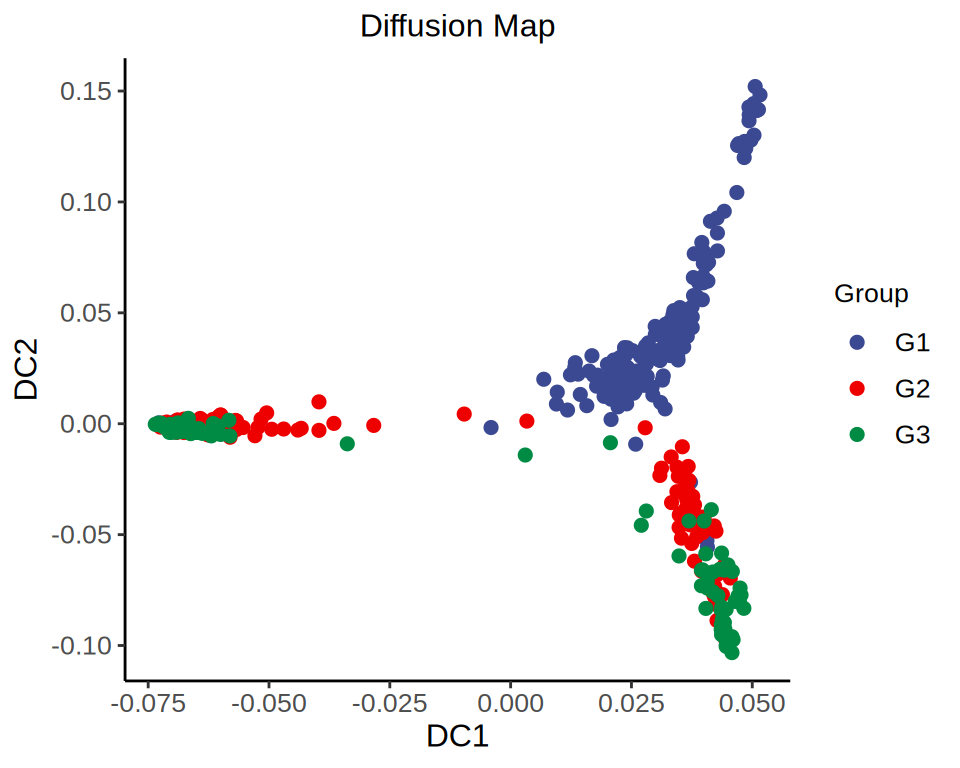

FigureΒ 1: 2D Diffusion Map

2. 3D

# 3D Diffusion Map
group.color <- c("#3B4992FF","#EE0000FF","#008B45FF")
names(group.color) <- unique(dm_data$colorBy)
group.color <- group.color[!is.na(names(group.color))]
if (length(group.color) == 0) {
  group.color <- c(Default="black")
  dm_data$colorBy <- "Default"
}
p <- as.ggplot(function(){
  scatterplot3d(x = dm_data$DC1, y = dm_data$DC2, z = dm_data$DC3,
                color =  alpha(group.color[dm_data$colorBy], 1),
                xlim=c(min(dm_data$DC1), max(dm_data$DC1)),
                ylim=c(min(dm_data$DC2), max(dm_data$DC2)),
                zlim=c(min(dm_data$DC3), max(dm_data$DC3)),
                pch = 16, cex.symbols  = 0.6,
                scale.y = 0.8,
                xlab = "DC1", ylab = "DC2", zlab = "DC3",
                angle = 40,
                main = "Diffusion Map",
                col.axis = "#444444", col.grid = "#CCCCCC")
  legend("right", legend = names(group.color),
         col = alpha(group.color, 0.8), pch = 16)
    })
p <- p + theme_classic()

p

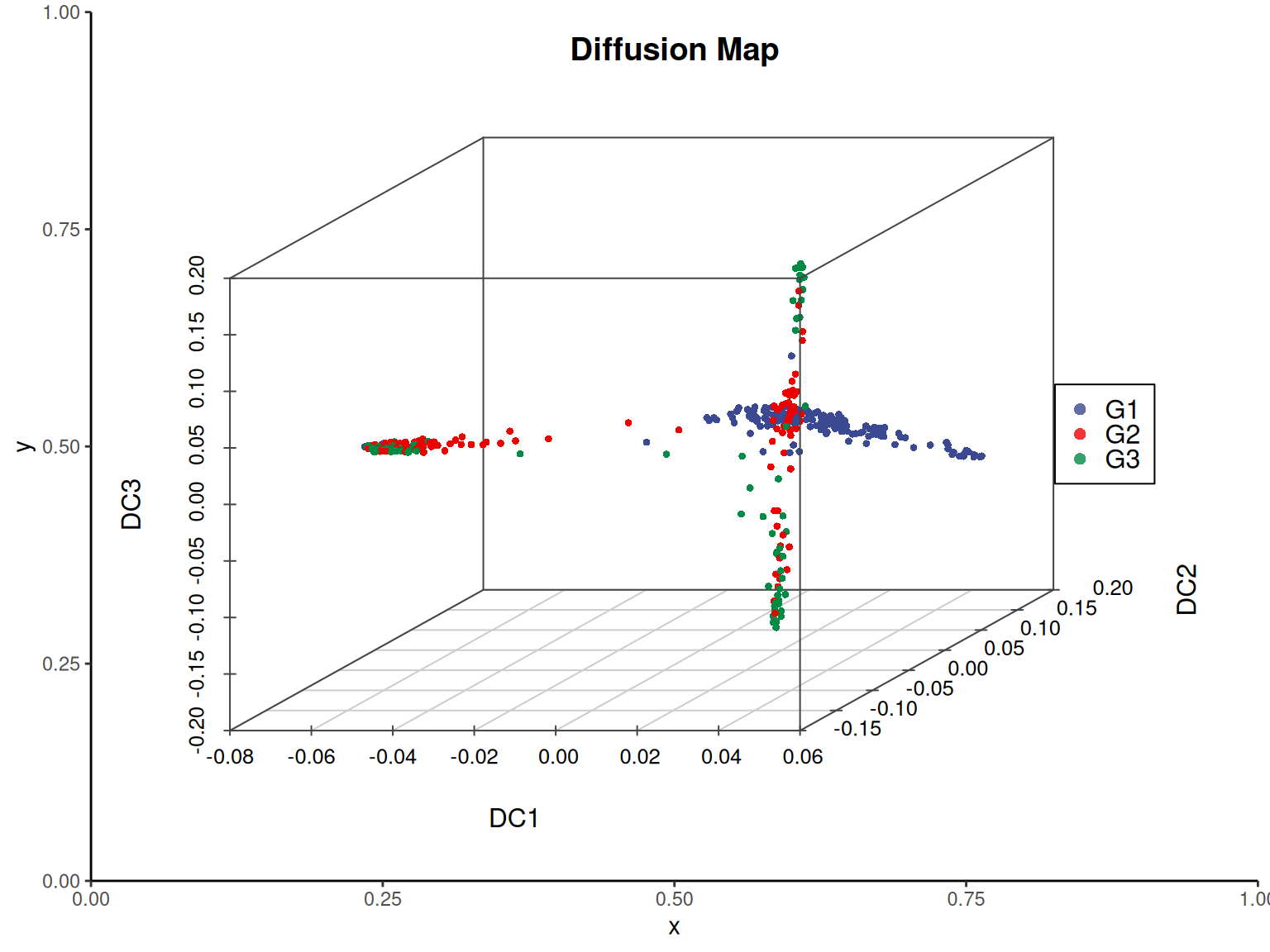

FigureΒ 2: 3D Diffusion Map
