Barstats

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Barstats plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/ggbarstats?lang=en

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; ggstatsplot; ggplot2; cowplot

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggstatsplot", quietly = TRUE)) {
  install.packages("ggstatsplot")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("cowplot", quietly = TRUE)) {
  install.packages("cowplot")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggstatsplot)
library(ggplot2)
library(cowplot)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package     * version date (UTC) lib source
 cowplot     * 1.2.0   2025-07-07 [1] RSPM
 data.table  * 1.18.0  2025-12-24 [1] RSPM
 ggplot2     * 4.0.1   2025-11-14 [1] RSPM
 ggstatsplot * 0.13.4  2025-12-09 [1] RSPM
 jsonlite    * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/ggbarstats/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# Convert data structure
axis <- c("relig", "partyid", "race")
data[, axis[1]] <- factor(data[, axis[1]], levels = rev(unique(data[, axis[1]])))
data[, axis[2]] <- factor(data[, axis[2]], levels = unique(data[, axis[2]]))
data[, axis[3]] <- factor(data[, axis[3]], levels = unique(data[, axis[3]]))

# View data
head(data)
  year       marital age  race        rincome            partyid      relig
1 2000 Never married  26 White  $8000 to 9999       Ind,near rep Protestant
2 2000      Divorced  48 White  $8000 to 9999 Not str republican Protestant
3 2000       Widowed  67 White Not applicable        Independent Protestant
4 2000      Divorced  25 White Not applicable   Not str democrat       None
5 2000       Married  25 White $20000 - 24999    Strong democrat Protestant
6 2000      Divorced  44 White  $7000 to 7999       Ind,near dem Protestant
              denom tvhours
1  Southern baptist      12
2  Baptist-dk which      NA
3   No denomination       2
4    Not applicable       1
5  Southern baptist      NA
6 Lutheran-mo synod      NA

Visualization

# Barstats
g <- unique(data[,axis[3]])
plist <- list()
for (i in 1:length(g)) {
  fil <- data[,axis[3]] == g[i]
  plist[[i]] <- ggbarstats(
    data = data[fil,], x = relig, y = partyid,
    plotgrid.args = list(ncol = 1), paired = F, k = 2) +
    scale_fill_manual(values = c("#00468BFF","#ED0000FF","#42B540FF"))
}
p <- plot_grid(plotlist = plist, ncol = 1)

p

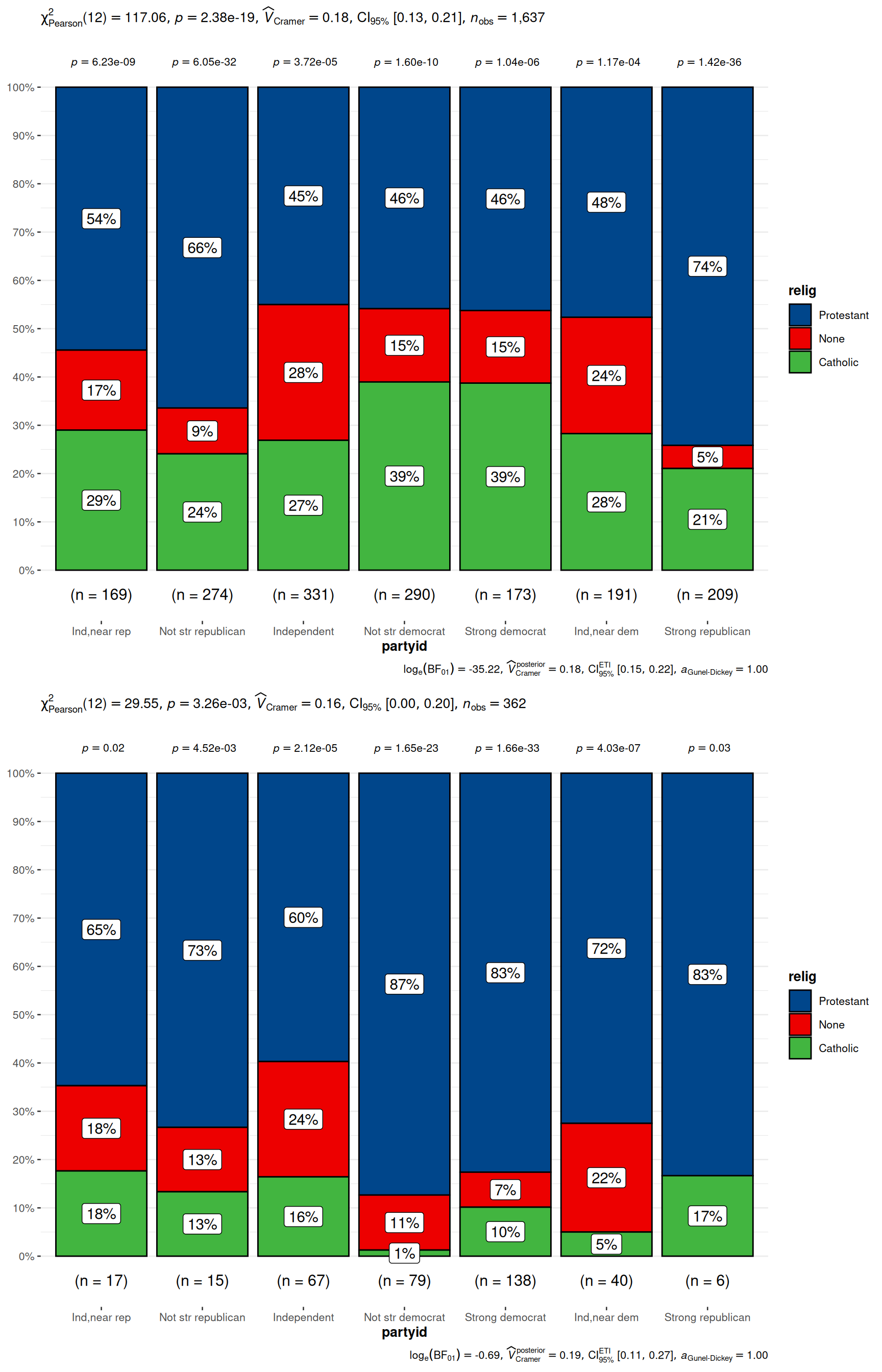

FigureΒ 1: Barstats
