GOCircle Plot

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot GOCircle Plot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/gocircle?lang=en

The gocircle plot is used to display the circular plot combines gene expression and gene- annotation enrichment data. A subset of terms is displayed like the GOBar plot in combination with a scatter plot of the gene expression data. The whole plot is drawn on a specific coordinate system to achieve the circular layout. The segments are labeled with the term ID.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; GOplot; ggplotify

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("GOplot", quietly = TRUE)) {
  install.packages("GOplot")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}

# Load packages
library(data.table)
library(jsonlite)
library(GOplot)
library(ggplotify)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package      * version date (UTC) lib source
 data.table   * 1.18.0  2025-12-24 [1] RSPM
 ggdendro     * 0.2.0   2024-02-23 [1] RSPM
 ggplot2      * 4.0.1   2025-11-14 [1] RSPM
 ggplotify    * 0.1.3   2025-09-20 [1] RSPM
 GOplot       * 1.0.2   2016-03-30 [1] RSPM
 gridExtra    * 2.3     2017-09-09 [1] RSPM
 jsonlite     * 2.0.0   2025-03-27 [1] RSPM
 RColorBrewer * 1.1-3   2022-04-03 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

The loaded data are the results of GO enrichment with seven columns: category, GO id, GO term, gene count, gene name, logFC, adjust pvalue and zscore.

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/gocircle/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# Convert data structure
colnames(data) <- c("category","ID","term","count","genes","logFC","adj_pval","zscore")
data <- data[!is.na(data$adj_pval),]
data$adj_pval <- as.numeric(data$adj_pval)
data$zscore <- as.numeric(data$zscore)
data$count <- as.numeric(data$count)

# View data
head(data)
  category         ID              term count  genes      logFC adj_pval
1       BP GO:0007507 heart development    54   DLC1 -0.9707875 2.17e-06
2       BP GO:0007507 heart development    54   NRP2 -1.5153173 2.17e-06
3       BP GO:0007507 heart development    54   NRP1 -1.1412315 2.17e-06
4       BP GO:0007507 heart development    54   EDN1  1.3813006 2.17e-06
5       BP GO:0007507 heart development    54 PDLIM3 -0.8876939 2.17e-06
6       BP GO:0007507 heart development    54   GJA1 -0.8179480 2.17e-06
      zscore
1 -0.8164966
2 -0.8164966
3 -0.8164966
4 -0.8164966
5 -0.8164966
6 -0.8164966

Visualization

# GOCircle Plot
p <- function () {
  GOCircle(data, title = "GO Enrichment Circleplot",
           nsub = 10, rad1 = 2, rad2 = 3, table.legend = T, label.size = 5,
           zsc.col = c("#FC8D59","#FFFFBF","#99D594")) +
    theme(plot.title = element_text(hjust = 0.5))
}
p <- as.ggplot(p)

p
GOCircle Plot

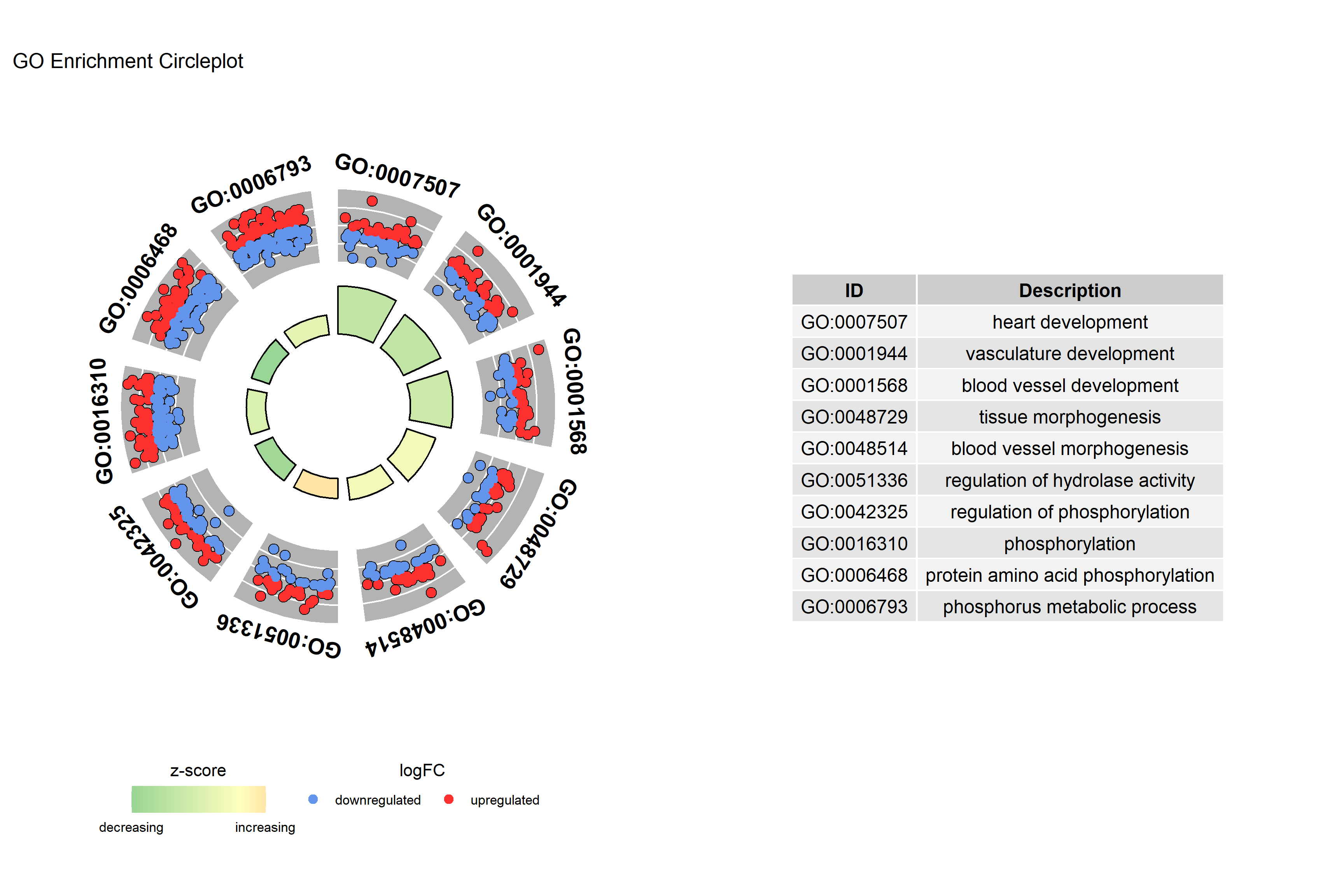

FigureΒ 1: GOCircle Plot

As shown in the example figure, the outer circle shows a scatter plot for each term of the logFC of the assigned genes. Red circles display up-regulation and blue ones down-regulation by default.
