The dendrogram is a diagram representing a tree. This diagrammatic representation is frequently used in different contexts:In hierarchical clustering, it illustrates the arrangement of the clusters produced by the corresponding analyses.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; ape; ggplotify

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ape", quietly = TRUE)) {
  install.packages("ape")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}

# Load packages
library(data.table)
library(jsonlite)
library(ape)
library(ggplotify)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 ape        * 5.8-1   2024-12-16 [1] RSPM
 data.table * 1.18.0  2025-12-24 [1] RSPM
 ggplotify  * 0.1.3   2025-09-20 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/dendrogram/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
data <- data[, -1]

# View data
head(data)
        M1       M2        M3       M4       M5       M6       M7       M8
1 6.599344 5.226266  3.693288 3.938501 4.527193 9.308119 8.987865 7.658312
2 5.760380 4.892783  5.448924 3.485413 3.855669 8.662081 8.793320 8.765915
3 9.561905 4.549168  3.998655 5.614384 3.904793 9.790770 7.133188 7.379591
4 8.396409 8.717055  8.039064 7.643060 9.274649 4.417013 4.725270 3.542217
5 8.419766 8.268430  8.451181 9.200732 8.598207 4.590033 5.368268 4.136667
6 7.653074 5.780393 10.633550 5.913684 8.805605 5.890120 5.527945 3.822596
        M9      M10
1 8.666038 7.419708
2 8.097206 8.262942
3 7.938063 6.154118
4 4.305187 6.964710
5 4.910986 4.080363
6 4.041078 7.956589

Visualization

# Dendrogram
d <- dist(t(data), method = "euclidean")
hc <- hclust(d, method = "complete")
clus <- cutree(hc, 4)

p <- as.ggplot(function() {
  par(mar = c(5, 5, 10, 5), mgp = c(2.5, 1, 0))
  plot(as.phylo(hc),
       type = "phylogram",
       tip.color = c("#00468bff","#ed0000ff","#42b540ff","#0099b4ff")[clus],
       label.offset = 1,
       cex = 1, font = 2, use.edge.length = T
       )
  title("Dendrogram Plot", line = 1)
  })

p

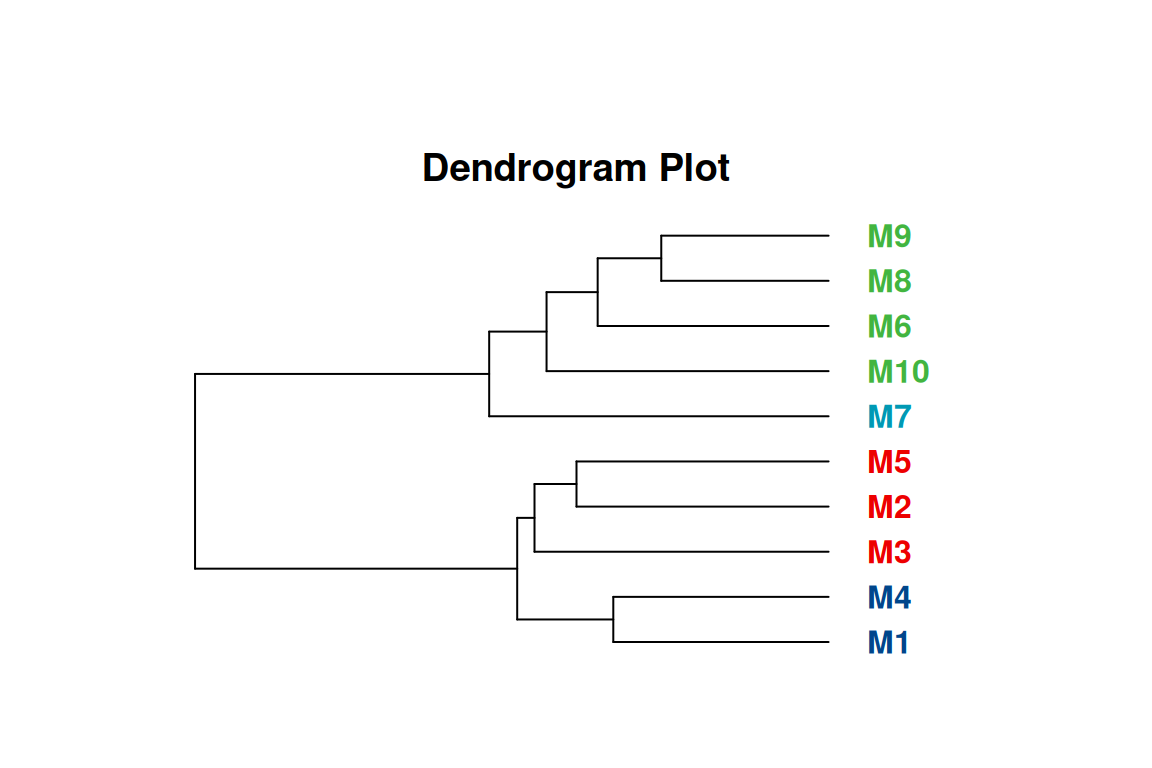

FigureΒ 1: Dendrogram
