Circular Barplot

Authors

[Editor] Hu Zheng;

[Contributors]

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Circular Barplot plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/circular-barplot?lang=en

Drawing circular barplot

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; ggplot2; dplyr

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("dplyr", quietly = TRUE)) {
  install.packages("dplyr")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggplot2)
library(dplyr)

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/circular-barplot/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
data$group <- as.factor(data$group)
empty_bar <- 2
to_add <- data.frame(matrix(NA, empty_bar*nlevels(data$group), ncol(data)))
colnames(to_add) <- colnames(data)
to_add$group <- rep(levels(data$group), each=empty_bar)
data <- rbind(data, to_add)
data <- data %>% arrange(group)
data$id <- seq(1, nrow(data))

label_data <- data
number_of_bar <- nrow(label_data)
angle <- 90 - 360 * (label_data$id-0.5) /number_of_bar
label_data$hjust <- ifelse( angle < -90, 1, 0)
label_data$angle <- ifelse(angle < -90, angle+180, angle)

base_data <- data %>%
  group_by(group) %>%
  dplyr::summarize(start=min(id), end=max(id) - empty_bar) %>%
  rowwise() %>%
  mutate(title=mean(c(start, end)))

# View data
head(data)
  individual group value id
1   Mister 1     A    82  1
2   Mister 2     A    98  2
3   Mister 3     A    72  3
4   Mister 4     A    34  4
5   Mister 5     A    60  5
6   Mister 6     A    61  6

Visualization

# Circular Barplot
p <- ggplot(data, aes(x=as.factor(id), y=value, fill=group)) +
  geom_bar(aes(x=as.factor(id), y=value, fill=group), stat="identity", alpha=0.5) +
  ylim(-50,max(na.omit(data$value))+30) +
  geom_segment(data=base_data, aes(x = start, y = -5, xend = end, yend = -5), colour = "black", alpha=0.8, size=0.8 , inherit.aes = FALSE )  +
  geom_text(data=base_data, aes(x = title, y = -12, label=group), colour = "black", alpha=0.8, size=4, fontface="bold", inherit.aes = FALSE) +
  geom_text(data=label_data, aes(x=id, y=value+8, label=individual, hjust=hjust), color="black", fontface="bold",alpha=0.6, size=3, angle= label_data$angle, inherit.aes = FALSE ) +
  geom_text(data=label_data, aes(x=id, y=value-10, label=value, hjust=hjust), color="black", fontface="bold",alpha=0.6, size=3, angle= label_data$angle, inherit.aes = FALSE ) +
  coord_polar() +
  scale_fill_manual(values = c("#3b4992ff","#ee0000ff","#008b45ff","#631879ff")) +
  theme_minimal() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_blank(),
        axis.text = element_blank(),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10),
        panel.grid = element_blank(),
        plot.margin = unit(rep(-1,4), "cm"))

p

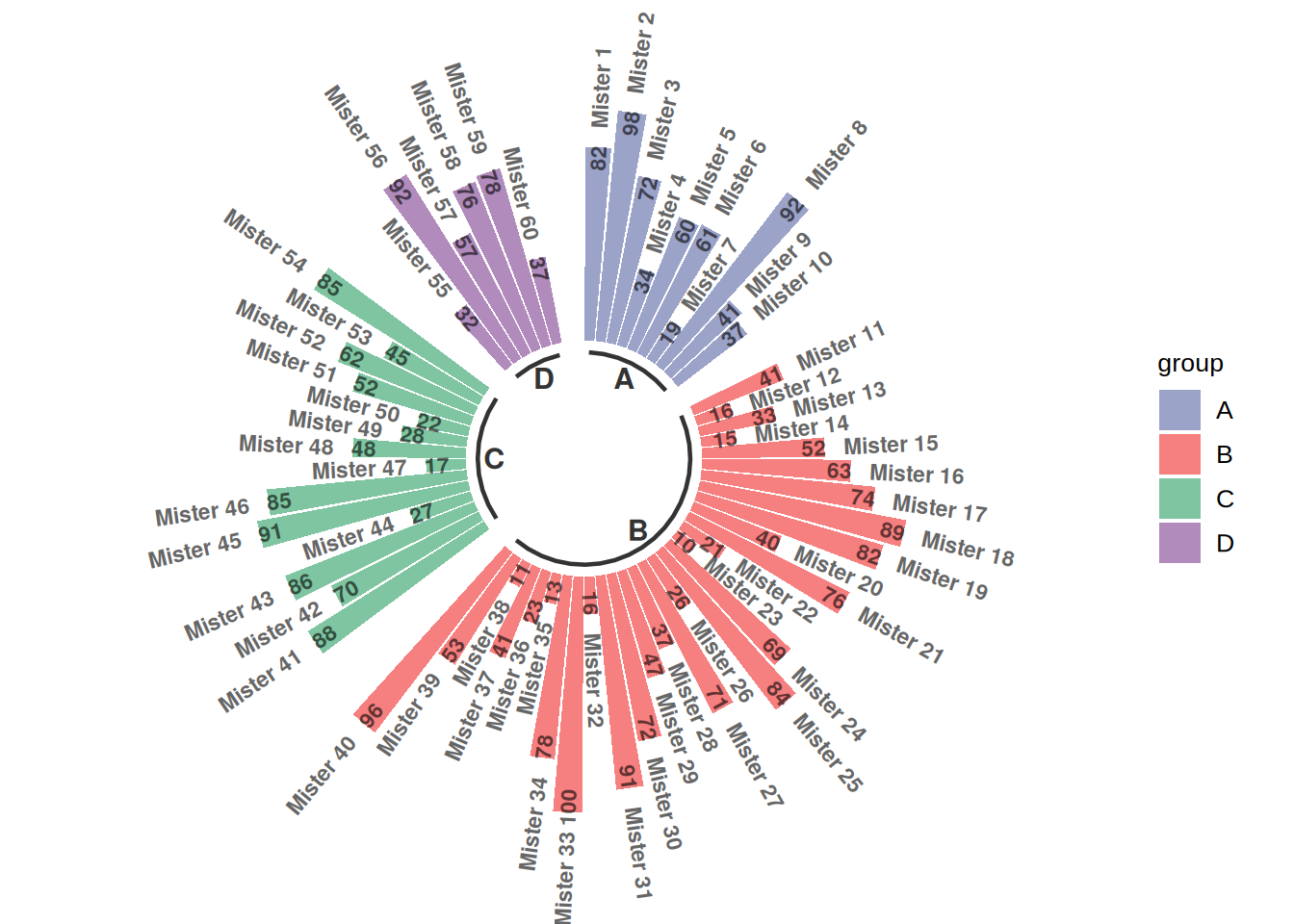

FigureΒ 1: Circular Barplot
