Scatterpie

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Scatterpie plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/scatterpie?lang=en

Scatter Pie can be used to visualize data fraction in different space coordinates.

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; scatterpie

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("scatterpie", quietly = TRUE)) {
  install.packages("scatterpie")
}

# Load packages
library(data.table)
library(jsonlite)
library(scatterpie)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 ggplot2    * 4.0.1   2025-11-14 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 scatterpie * 0.2.6   2025-09-12 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/scatterpie/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# View data
head(data)
            x          y          A        B        C        D
1  -56.047565  12.665926 0.71040656 2.887786 1.309570 2.892264
2  -23.017749  -1.427338 0.25688371 1.403569 1.375096 4.945092
3    7.050839  68.430114 0.24669188 0.524395 3.189978 5.138863
4   12.928774 -11.288549 0.34754260 3.144288 3.789556 2.295894
5 -126.506123  29.230687 0.95161857 3.029335 1.048951 2.471943
6  -68.685285   6.192712 0.04502772 3.203072 2.596539 4.439393

Visualization

# Scatterpie
p <- ggplot() +
  geom_scatterpie(data = data, aes(x = x, y = y), cols = colnames(data)[-c(1, 2)]) +
  scale_fill_manual(values = c("#E64B35FF","#4DBBD5FF","#00A087FF","#3C5488FF")) +
  labs(x="x", y="y") +
  theme_minimal() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

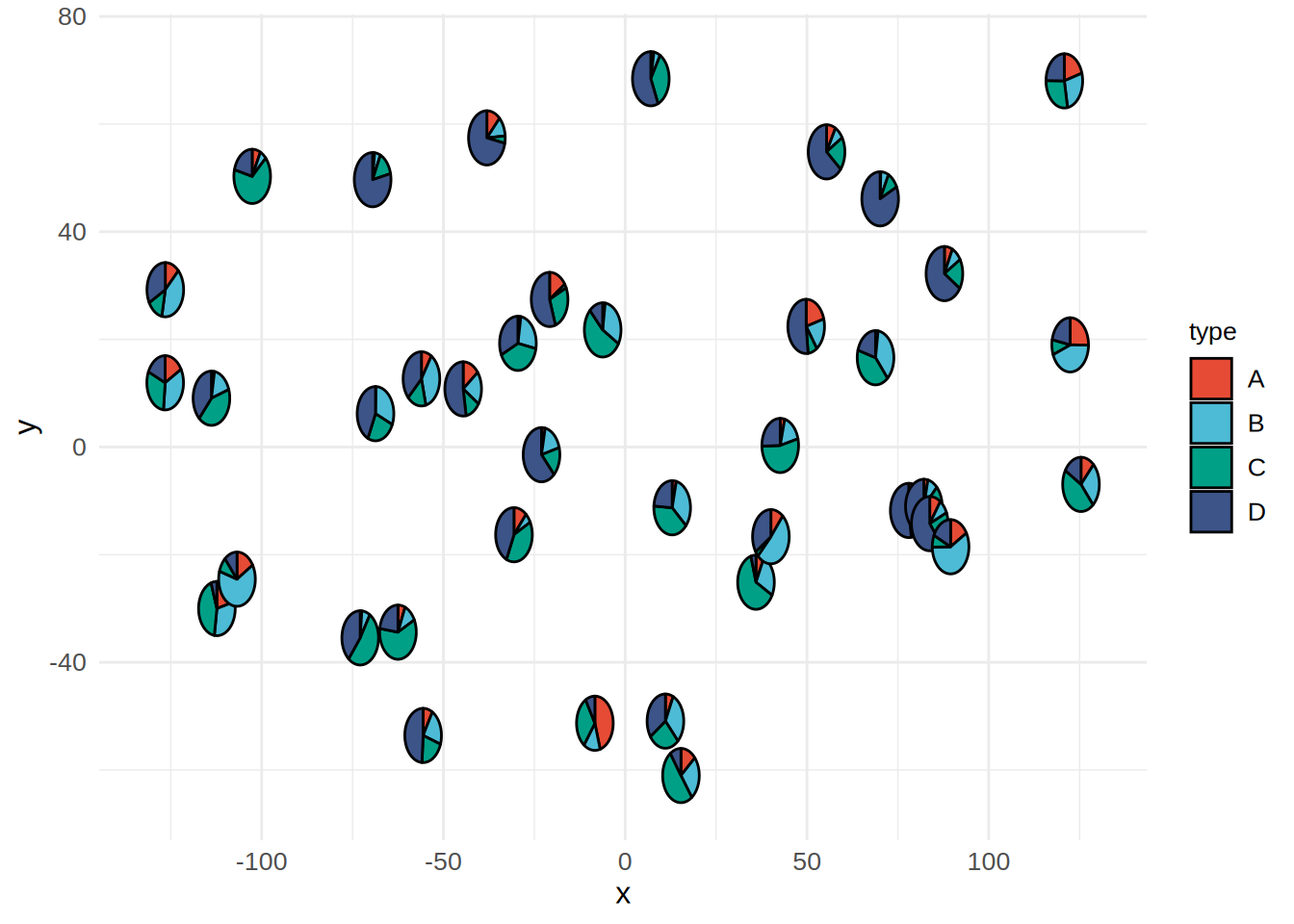

FigureΒ 1: Scatterpie
