Simplified Correlation Heatmap

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-27

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Simplified Correlation Heatmap plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/cor-heatmap-simple?lang=en

Simplified variables correlation heatmap

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; ggplot2; ggisoband

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("sigminer", quietly = TRUE)) {
  BiocManager::install("sigminer")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggplot2)
library(sigminer)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-27
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package      * version date (UTC) lib source
 Biobase      * 2.70.0  2025-10-29 [1] Bioconduc~
 BiocGenerics * 0.56.0  2025-10-29 [1] Bioconduc~
 data.table   * 1.18.0  2025-12-24 [1] RSPM
 generics     * 0.1.4   2025-05-09 [1] RSPM
 ggplot2      * 4.0.1   2025-11-14 [1] RSPM
 jsonlite     * 2.0.0   2025-03-27 [1] RSPM
 sigminer     * 2.3.1   2024-05-11 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/cor-heatmap-simple/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# View data
head(data)
   mpg cyl disp  hp drat    wt  qsec vs am gear carb
1 21.0   6  160 110 3.90 2.620 16.46  0  1    4    4
2 21.0   6  160 110 3.90 2.875 17.02  0  1    4    4
3 22.8   4  108  93 3.85 2.320 18.61  1  1    4    1
4 21.4   6  258 110 3.08 3.215 19.44  1  0    3    1
5 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2
6 18.1   6  225 105 2.76 3.460 20.22  1  0    3    1

Visualization

# Simplified Correlation Heatmap
p <- show_cor(
  data = data,
  x_vars = c("mpg","cyl","disp"),
  y_vars = c("wt","hp","drat"),
  cor_method = "pearson",
  vis_method = "square",
  lab = T,
  test = T,
  hc_order = F,
  legend.title = "Corr"
  ) +
  ggtitle("") +
  labs(x="", y="") +
  theme_bw() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

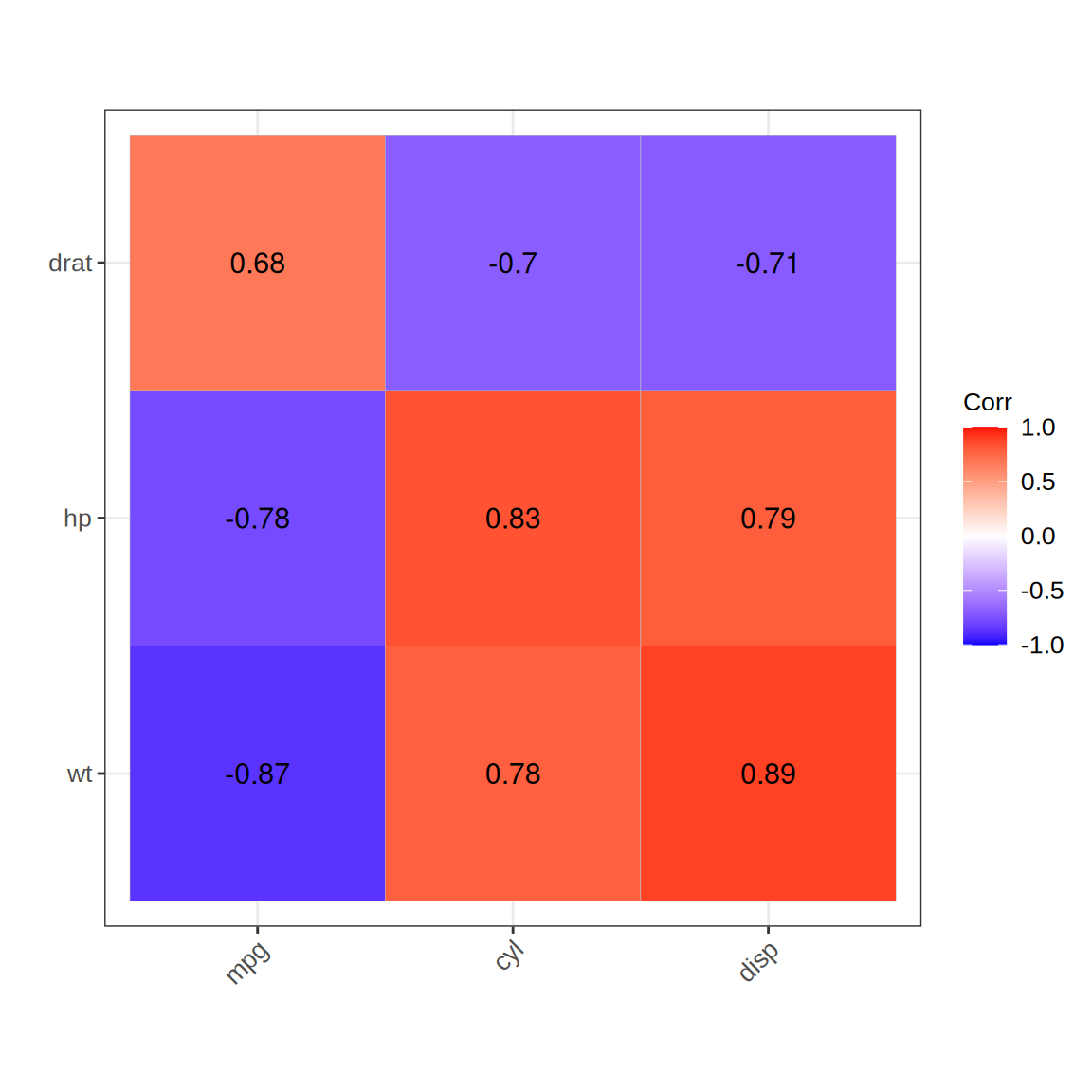

FigureΒ 1: Simplified Correlation Heatmap
