Visdat

Authors

[Editor] Hu Zheng;

[Contributors]

Modified

2026-01-17

Note

Hiplot website

This page is the tutorial for source code version of the Hiplot Visdat plugin. You can also use the Hiplot website to achieve no code ploting. For more information please see the following link:

https://hiplot.cn/basic/visdat?lang=en

Setup

  • System Requirements: Cross-platform (Linux/MacOS/Windows)

  • Programming language: R

  • Dependent packages: data.table; jsonlite; visdat; ggplot2; dplyr; patchwork

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("visdat", quietly = TRUE)) {
  install.packages("visdat")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("dplyr", quietly = TRUE)) {
  install.packages("dplyr")
}
if (!requireNamespace("patchwork", quietly = TRUE)) {
  install.packages("patchwork")
}

# Load packages
library(data.table)
library(jsonlite)
library(visdat)
library(ggplot2)
library(dplyr)
library(patchwork)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-17
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 dplyr      * 1.1.4   2023-11-17 [1] RSPM
 ggplot2    * 4.0.1   2025-11-14 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 patchwork  * 1.3.2   2025-08-25 [1] RSPM
 visdat     * 0.6.0   2023-02-02 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/visdat/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# View data
head(data)
  RowNames Ozone Solar.R Wind Temp Month Day
1        1    41     190  7.4   67     5   1
2        2    36     118  8.0   72     5   2
3        3    12     149 12.6   74     5   3
4        4    18     313 11.5   62     5   4
5        5    NA      NA 14.3   56     5   5
6        6    28      NA 14.9   66     5   6

Visualization

# Visdat
add_palette <- function (p) {
  ## add color palette
  p <- p + scale_fill_manual(values = c("#3B4992FF", "#EE0000FF"))
}
pobj <- list()
pobj[["p1"]] <- add_palette(vis_dat(data)) + ggtitle(':vis_dat')
pobj[["p2"]] <- add_palette(vis_guess(data)) + ggtitle(':vis_guess')
pobj[["p3"]] <- vis_miss(data, cluster = T, sort_miss = T) + ggtitle(':vis_miss')
pobj[["p4"]] <- add_palette(vis_expect(data, ~.x >= 20 )) + ggtitle(':vis_expect')
pobj[["p5"]] <- vis_cor(data) +
  scale_fill_gradientn(colours = c("#0571B0", "#92C5DE", "#F4A582", "#CA0020")) +
  ggtitle(':vis_cor')
pobj[["p6"]] <- data %>%
      select_if(is.numeric) %>%
      vis_value() + ggtitle(':vis_value')
pobj[["p6"]] <- pobj[["p6"]] +
  scale_fill_gradientn(colours = c("#0571B0","#92C5DE","#F7F7F7","#F4A582",
                                   "#CA0020"))

pstr <- paste0(sprintf("pobj[[%s]]", 1:length(pobj)), collapse = " + ")
p <- eval(parse(text =
  sprintf("%s + plot_layout(ncol = 2) +
plot_annotation(tag_levels = 'A')", pstr)))

p

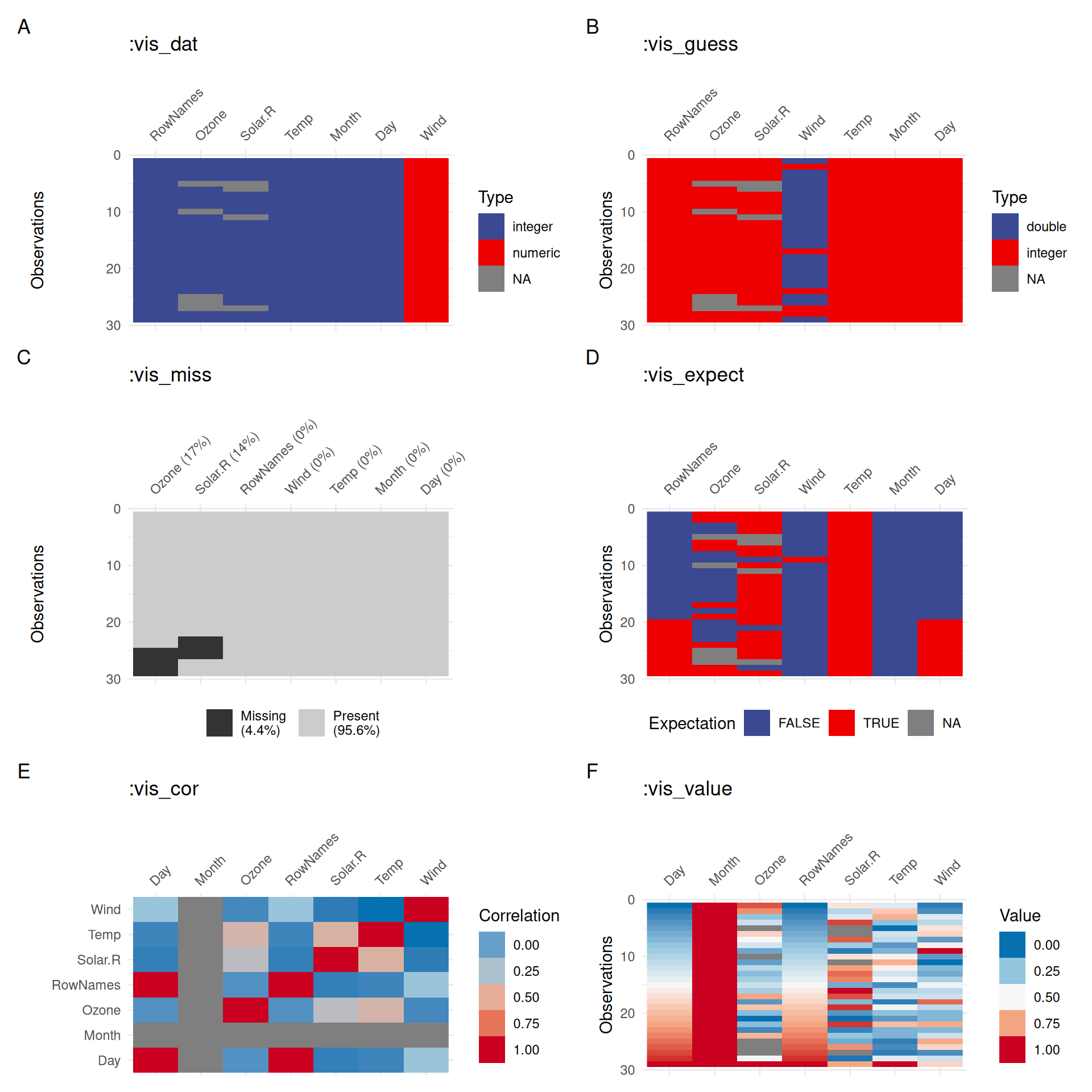

FigureΒ 1: Visdat
