Density

The kernel density map is a graph used to observe the distribution of continuous variables.

Setup

• System Requirements: Cross-platform (Linux/MacOS/Windows)

• Programming language: R

• Dependent packages: data.table; jsonlite; ggplot2; ggthemes

# Install packages
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("ggthemes", quietly = TRUE)) {
  install.packages("ggthemes")
}

# Load packages
library(data.table)
library(jsonlite)
library(ggplot2)
library(ggthemes)

Data Preparation

# Load data
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/density/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# convert data structure
data[,2] <- factor(data[,2], levels = unique(data[,2]))

# View data
head(data)

  Value Group2
1   4.2 treat1
2  11.5 treat1
3   7.3 treat1
4   5.8 treat1
5   6.4 treat1
6  10.0 treat1

Visualization

# Density
data["group_add_by_code"] <- "g1"

p <- ggplot(data, aes_(as.name(colnames(data[1])))) +
  geom_density(col = "white", alpha = 0.85,
               aes_(fill = as.name(colnames(data[2])))) +
  ggtitle("") +
  scale_fill_manual(values = c("#e04d39","#5bbad6")) +
  theme_stata() +
  theme(text = element_text(family = "Arial"),
        plot.title = element_text(size = 12,hjust = 0.5),
        axis.title = element_text(size = 12),
        axis.text = element_text(size = 10),
        axis.text.x = element_text(angle = 0, hjust = 0.5,vjust = 1),
        legend.position = "right",
        legend.direction = "vertical",
        legend.title = element_text(size = 10),
        legend.text = element_text(size = 10))

p

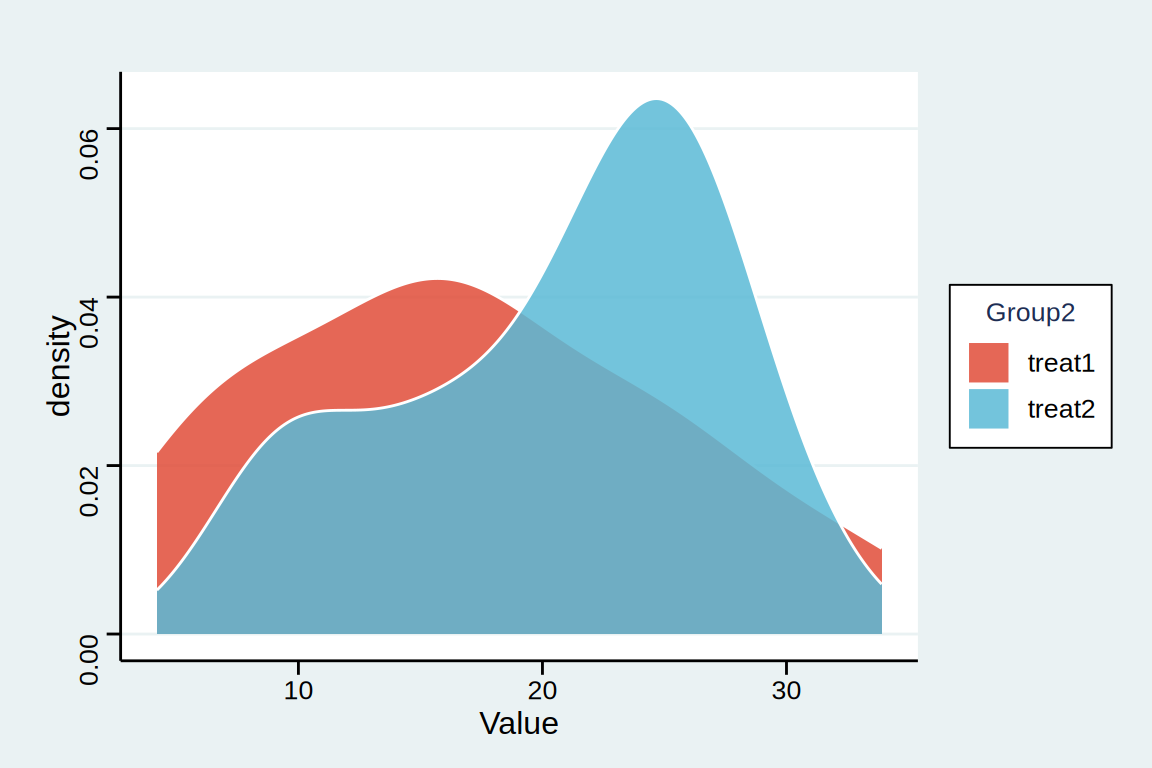

Figure 1: Density
