泰勒图

作者

[编辑] 郑虎;

[审核] .

修改于

2026-01-27

注记

Hiplot 网站

本页面为 Hiplot Taylor Diagram 插件的源码版本教程，您也可以使用 Hiplot 网站实现无代码绘图，更多信息请查看以下链接:

https://hiplot.cn/basic/taylor-diagram?lang=zh_cn

可以用于同时展示模型标准差（standard deviation, SD）、均方根（root mean square，RMS）误差和相关系数。

环境配置

系统: Cross-platform (Linux/MacOS/Windows)
编程语言: R
依赖包: openair

# 安装包
if (!requireNamespace("openair", quietly = TRUE)) {
  install.packages("openair")
}

# 加载包
library(openair)

sessioninfo::session_info("attached")

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-28
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package * version date (UTC) lib source
 openair * 2.19.0  2025-08-28 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

数据准备

# 加载数据
dat <- selectByDate(mydata, year = 2003)

# 整理数据格式
dat <- data.frame(date = mydata$date, obs = mydata$nox, mod = mydata$nox)
dat <- transform(dat, month = as.numeric(format(date, "%m")))
mod1 <- transform(dat, mod = mod + 10 * month + 10 * month * rnorm(nrow(dat)),
model = "model 1")
mod1 <- transform(mod1, mod = c(mod[5:length(mod)], mod[(length(mod) - 3) :
length(mod)]))
mod2 <- transform(dat, mod = mod + 7 * month + 7 * month * rnorm(nrow(dat)),
model = "model 2")
mod3 <- transform(dat, mod = mod + 3 * month + 3 * month * rnorm(nrow(dat)),
model = "model 3")
mod.dat <- rbind(mod1, mod2, mod3)

# 查看数据
head(mod.dat)

                 date obs      mod month   model
1 1998-01-01 00:00:00 285 489.8066     1 model 1
2 1998-01-01 01:00:00  NA 261.6268     1 model 1
3 1998-01-01 02:00:00  NA 169.4279     1 model 1
4 1998-01-01 03:00:00 493 217.0566     1 model 1
5 1998-01-01 04:00:00 468 130.7512     1 model 1
6 1998-01-01 05:00:00 264 113.8605     1 model 1

可视化

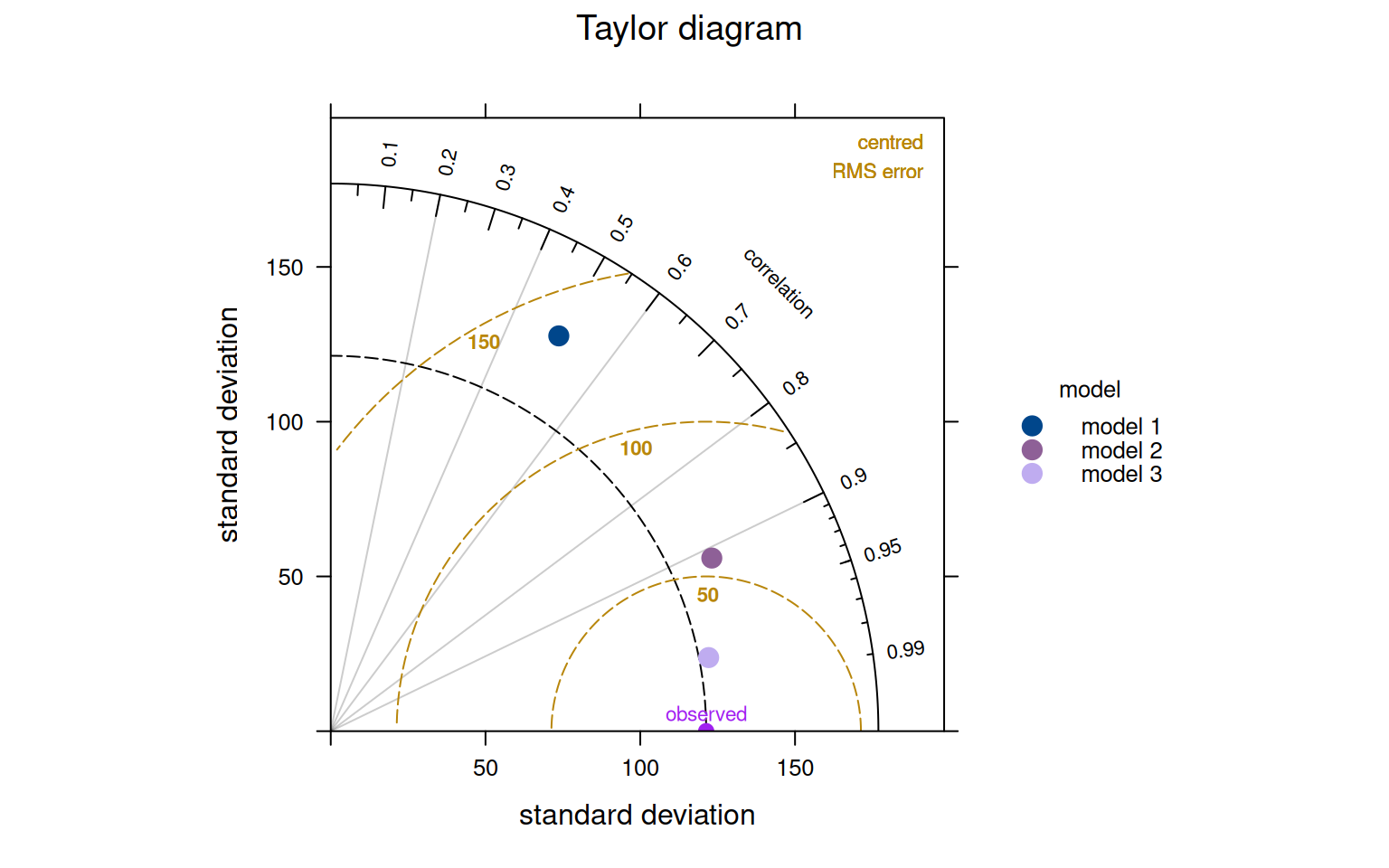

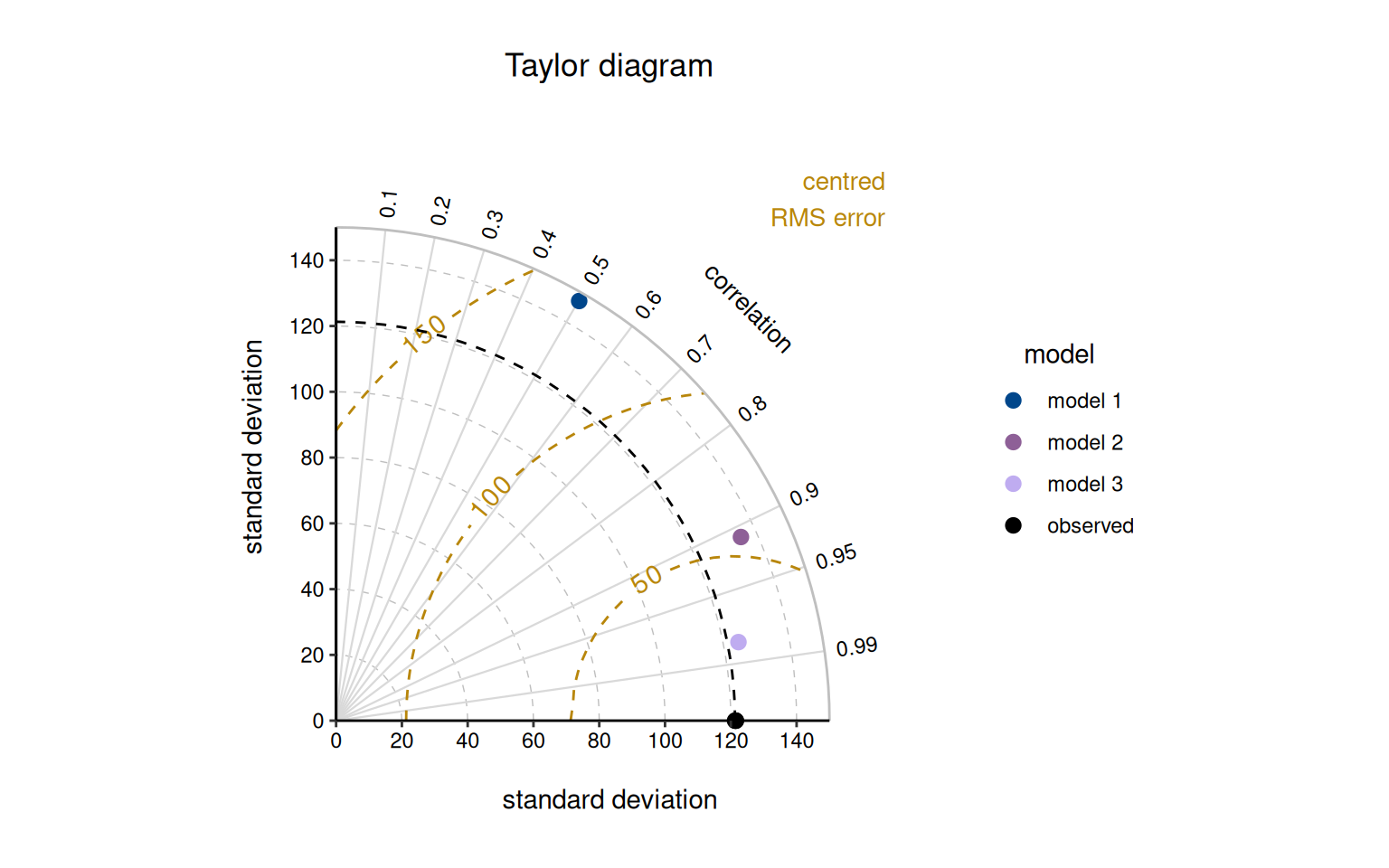

# 泰勒图
TaylorDiagram(mod.dat, obs = "obs", mod = "mod", group = "model",
              main = "Taylor diagram",
              cols = c("#00468BFF","#8e6097","#BFACF0FF"))
