饼图矩阵

作者

[编辑] 郑虎;

[审核] .

修改于

2026-01-27

注记

Hiplot 网站

本页面为 Hiplot Pie Matrix 插件的源码版本教程，您也可以使用 Hiplot 网站实现无代码绘图，更多信息请查看以下链接:

https://hiplot.cn/basic/pie-matrix?lang=zh_cn

环境配置

  • 系统: Cross-platform (Linux/MacOS/Windows)

  • 编程语言: R

  • 依赖包: data.table; jsonlite; ggplot2; dplyr; tidyr; stringr

# 安装包
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("dplyr", quietly = TRUE)) {
  install.packages("dplyr")
}
if (!requireNamespace("tidyr", quietly = TRUE)) {
  install.packages("tidyr")
}
if (!requireNamespace("stringr", quietly = TRUE)) {
  install.packages("stringr")
}

# 加载包
library(data.table)
library(jsonlite)
library(ggplot2)
library(dplyr)
library(tidyr)
library(stringr)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-28
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 dplyr      * 1.1.4   2023-11-17 [1] RSPM
 ggplot2    * 4.0.1   2025-11-14 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 stringr    * 1.6.0   2025-11-04 [1] RSPM
 tidyr      * 1.3.2   2025-12-19 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

数据准备

# 加载数据
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/pie-matrix/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# 整理数据格式
data[,"genre"] <- factor(data[,"genre"], levels = unique(data[,"genre"]))
data[,"mpaa"] <- factor(data[,"mpaa"], levels = unique(data[,"mpaa"]))
data[,"status"] <- factor(data[,"status"], levels = unique(data[,"status"]))
col <- c("#E64B35FF","#4DBBD5FF")
df <- matrix(NA, nrow = length(unique(data[,"mpaa"])),
             ncol = length(unique(data[,"genre"])))
row.names(df) <- unique(data[,"mpaa"])
colnames(df) <- unique(data[,"genre"])
for (i in 1:nrow(df)) {
    for (j in 1:ncol(df)) {
      for (k in unique(data[,"status"])) {
        if (is.na(df[i, j])) {
          df[i, j] <- sum(data[,"genre"] == unique(data[,"genre"])[j] &
            data[,"mpaa"] == unique(data[,"mpaa"])[i] &
            data[,"status"] == k)
        } else {
          df[i, j] <- paste0(df[i, j], ",",
            sum(data[,"genre"] == unique(data[,"genre"])[j] &
              data[,"mpaa"] == unique(data[,"mpaa"])[i] &
              data[,"status"] == k))
        }
      }
    }
}
df <- as.matrix(df)

# 查看数据
head(data[,1:5])
                                               title year length budget rating
1                          Shawshank Redemption, The 1994    142     25    9.1
2     Lord of the Rings: The Return of the King, The 2003    251     94    9.0
3 Lord of the Rings: The Fellowship of the Ring, The 2001    208     93    8.8
4             Lord of the Rings: The Two Towers, The 2002    223     94    8.8
5                                       Pulp Fiction 1994    168      8    8.8
6                                   Schindler's List 1993    195     25    8.8

可视化

# 饼图矩阵
p <- df %>% as.table() %>%
  as.data.frame() %>%
  mutate(Freq = str_split(Freq,",")) %>%
  unnest(Freq) %>%
  mutate(Freq = as.integer(Freq)) %>%
  # 将值转换为百分比（每个图表加起来为 1）
  group_by(Var1, Var2) %>%
  mutate(Freq = ifelse(is.na(Freq), NA, Freq / sum(Freq)),
         color = row_number()) %>%
  ungroup() %>%
  # Plot
  ggplot(aes("", Freq, fill=factor(color, labels = unique(data[,"status"])))) +
  geom_bar(width = 2, stat = "identity") +
  coord_polar("y") +
  facet_wrap(~Var1+Var2, ncol = ncol(df)) +
  scale_fill_manual(values = col) +
  theme_void() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid = element_blank(), axis.title = element_blank(),
        legend.position = "bottom", legend.direction = "horizontal") +
  guides(fill = guide_legend(nrow = 1, title = "status"))

p

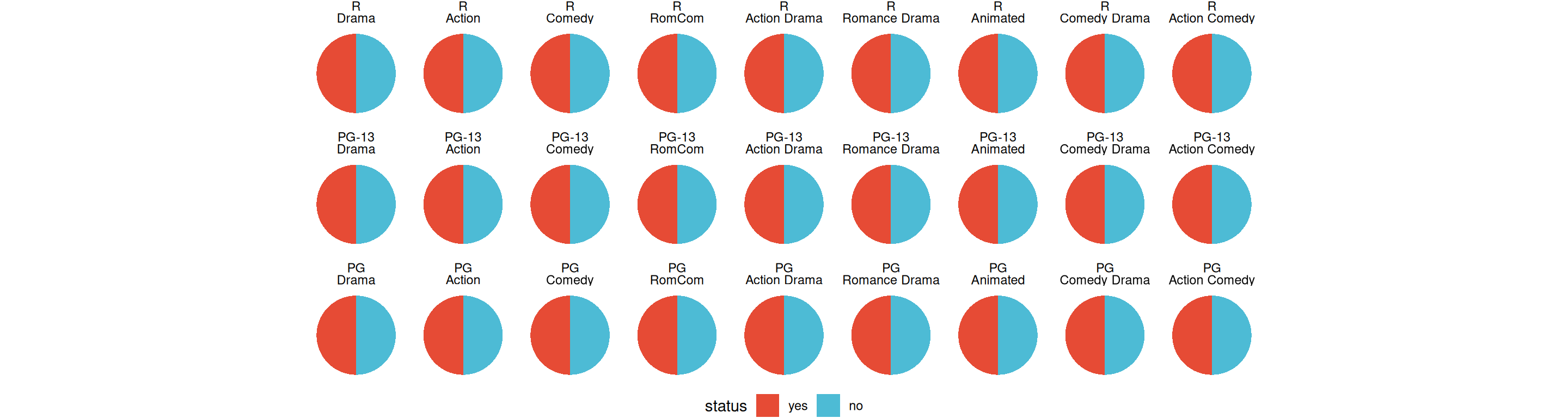

图 1: 饼图矩阵
