风险因子分析

作者

[编辑] 郑虎;

[审核] .

修改于

2026-10-27

🤖 AI Skill — Download the Bizard unified skill for your AI assistant ⬇️ Download Skill ZIP
🔌 MCP Server — Let AI agents (Claude Code, Cursor, …) query Bizard live: claude mcp add bizard -- npx @openbiox/bizard-mcp — or the free hosted instance (no install, faster from mainland China): claude mcp add --transport http bizard http://biotree.top:38123/bizard-mcp/mcp 📖 MCP Docs
📖 Cite Bizard — if Bizard helps your research, please cite: Li, K., Zheng, H., Huang, K., et al. (2026). Bizard: A Community-Driven Platform for Accelerating and Enhancing Biomedical Data Visualization. iMetaMed, e70038. 🔗 DOI / BibTeX
注记

Hiplot 网站

本页面为 Hiplot Risk Factor Analysis 插件的源码版本教程，您也可以使用 Hiplot 网站实现无代码绘图，更多信息请查看以下链接:

https://hiplot.cn/basic/risk-plot?lang=zh_cn

环境配置

  • 系统: Cross-platform (Linux/MacOS/Windows)

  • 编程语言: R

  • 依赖包: data.table; jsonlite; survminer; cutoff; ggplot2; cowplot

# 安装包
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("survminer", quietly = TRUE)) {
  install.packages("survminer")
}
if (!requireNamespace("cutoff", quietly = TRUE)) {
  remotes::install_github("choisy/cutoff")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("cowplot", quietly = TRUE)) {
  install.packages("cowplot")
}

# 加载包
library(data.table)
library(jsonlite)
library(survminer)
library(cutoff)
library(ggplot2)
library(cowplot)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.6.1 (2026-06-24)
 os       Ubuntu 24.04.5 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-10-27
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.10.19 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 ! package    * version    date (UTC) lib source
 P cowplot    * 1.2.0      2025-07-07 [?] RSPM
 P cutoff     * 0.1.0      2026-10-10 [?] Github (choisy/cutoff@517686c)
 P data.table * 1.18.6.1   2026-08-24 [?] RSPM
 P ggplot2    * 4.0.3.9000 2026-10-26 [?] Github (tidyverse/ggplot2@b638d65)
 P ggpubr     * 1.0.0      2026-07-06 [?] RSPM
 P jsonlite   * 2.0.0      2025-03-27 [?] RSPM
 P survminer  * 0.5.2      2026-02-25 [?] RSPM

 [1] /home/runner/.cache/R/renv/library/Bizard-5140bdc6/linux-ubuntu-noble/R-4.6/x86_64-pc-linux-gnu
 [2] /opt/R/4.6.1/lib/R/library

 * ── Packages attached to the search path.
 P ── Loaded and on-disk path mismatch.

──────────────────────────────────────────────────────────────────────────────

数据准备

# 加载数据
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/risk-plot/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# 整理数据格式
data <- data[order(data[, "riskscore"], decreasing = F), ]
cutoff_point <- median(x = data$riskscore, na.rm = TRUE)
data$Group <- ifelse(data$riskscore > cutoff_point, "High", "Low")
cut.position <- (1:nrow(data))[data$riskscore == cutoff_point]
if (length(cut.position) == 0) {
  cut.position <- which.min(abs(data$riskscore - cutoff_point))
} else if (length(cut.position) > 1) {
  cut.position <- cut.position[length(cut.position)]
}
## 生成画 A B 图所需data.frame
data2 <- data[, c("time", "event", "riskscore", "Group")]

# 查看数据
head(data)
  time event riskscore    TAGLN2       PDPN     TIMP1      EMP3 Group
1 1014     0 0.8206424 1.0612565 0.04879016 0.1484200 0.1906204   Low
2  246     1 1.0582599 1.2584610 0.20701417 0.3506569 0.2546422   Low
3 2283     0 1.1693457 1.2697605 0.00000000 0.2231436 0.3364722   Low
4 1757     0 1.2274565 1.7209793 0.00000000 0.5822156 0.2231436   Low
5 3107     1 1.2806984 0.5933268 0.37156356 0.1043600 0.5709795   Low
6  332     1 1.2891095 1.2892326 0.09531018 0.2070142 0.3987761   Low

可视化

# 风险因子分析
## Figure A
fA <- ggplot(data = data2, aes(x = 1:nrow(data2), y = data2$riskscore,
                               color = Group)) +
  geom_point(size = 2) +
  scale_color_manual(name = "Risk Group",
                     values = c("Low" = "#0B45A5", "High" = "#E20B0B")) +
  geom_vline(xintercept = cut.position, linetype = "dotted", size = 1) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.ticks.x = element_blank(), axis.line.x = element_blank(),
        axis.text.x = element_blank(), axis.title.x = element_blank(),
        axis.title.y = element_text(size = 14, vjust = 1, angle = 90),
        axis.text.y = element_text(size = 11),
        axis.line.y = element_line(size = 0.5, colour = "black"),
        axis.ticks.y = element_line(size = 0.5, colour = "black"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  coord_trans() +
  ylab("Risk Score") +
  scale_x_continuous(expand = c(0, 3))
## Figure B
fB <- ggplot(data = data2, aes(x = 1:nrow(data2), y = data2[, "time"],
             color = factor(ifelse(data2[, "event"] == 1, "Dead", "Alive")))) +
  geom_point(size = 2) +
  scale_color_manual(name = "Status", values = c("Alive" = "#0B45A5", "Dead" = "#E20B0B")) +
  geom_vline(xintercept = cut.position, linetype = "dotted", size = 1) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.ticks.x = element_blank(), axis.line.x = element_blank(),
        axis.text.x = element_blank(), axis.title.x = element_blank(),
        axis.title.y = element_text(size = 14, vjust = 2, angle = 90),
        axis.text.y = element_text(size = 11),
        axis.ticks.y = element_line(size = 0.5),
        axis.line.y = element_line(size = 0.5, colour = "black"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  ylab("Survival Time") +
  coord_trans() +
  scale_x_continuous(expand = c(0, 3))
## middle
middle <- ggplot(data2, aes(x = 1:nrow(data2), y = 1)) +
  geom_tile(aes(fill = data2$Group)) +
  scale_fill_manual(name = "Risk Group", values = c("Low" = "#0B45A5", "High" = "#E20B0B")) +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.line = element_blank(), axis.ticks = element_blank(),
        axis.text = element_blank(), axis.title = element_blank(),
        plot.margin = unit(c(0.15, 0, -0.3, 0), "cm"),
        legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  scale_x_continuous(expand = c(0, 3)) +
  xlab("")
## Figure C
heatmap_genes <- c("TAGLN2", "PDPN", "TIMP1", "EMP3")
data3 <- data[, heatmap_genes]
if (length(heatmap_genes) == 1) {
  data3 <- data.frame(data3)
  colnames(data3) <- heatmap_genes
}
# 归一化
for (i in 1:ncol(data3)) {
  data3[, i] <- (data3[, i] - mean(data3[, i], na.rm = TRUE)) /
  sd(data3[, i], na.rm = TRUE)
}
data4 <- cbind(id = 1:nrow(data3), data3)
data5 <- reshape2::melt(data4, id.vars = "id")
fC <- ggplot(data5, aes(x = id, y = variable, fill = value)) +
  geom_raster() +
  theme(panel.grid = element_blank(), panel.background = element_blank(),
        axis.line = element_blank(), axis.ticks = element_blank(),
        axis.text.x = element_blank(), axis.title = element_blank(),
        plot.background = element_blank()) +
  scale_fill_gradient2(name = "Expression", low = "#0B45A5", mid = "#FFFFFF",
                       high = "#E20B0B") +
  theme(axis.text = element_text(size = 11)) +
  theme(legend.title = element_text(size = 13),
        legend.text = element_text(size = 12)) +
  scale_x_continuous(expand = c(0, 3))

p <- plot_grid(fA, fB, middle, fC, ncol = 1, rel_heights = c(0.1, 0.1, 0.01, 0.15))

p

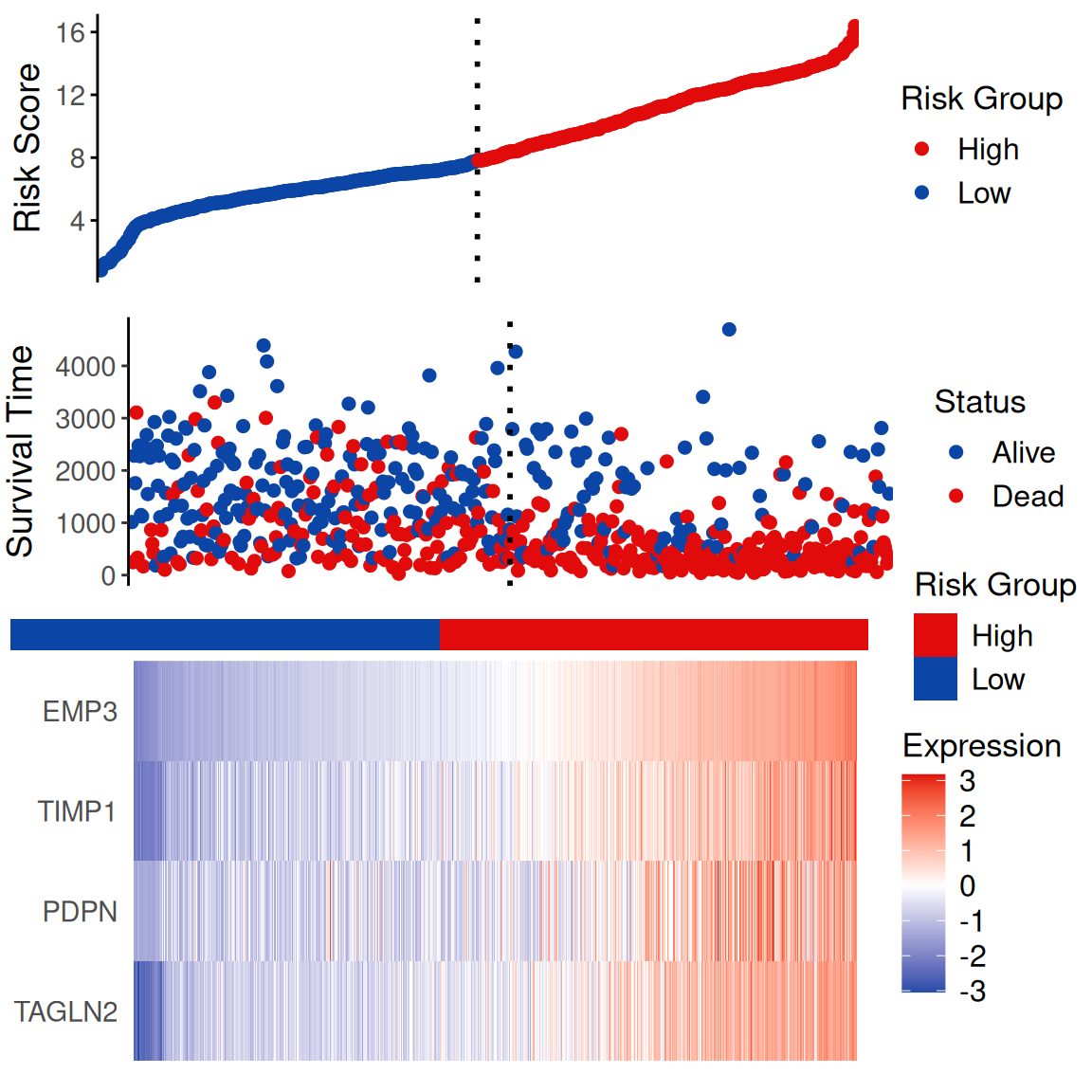

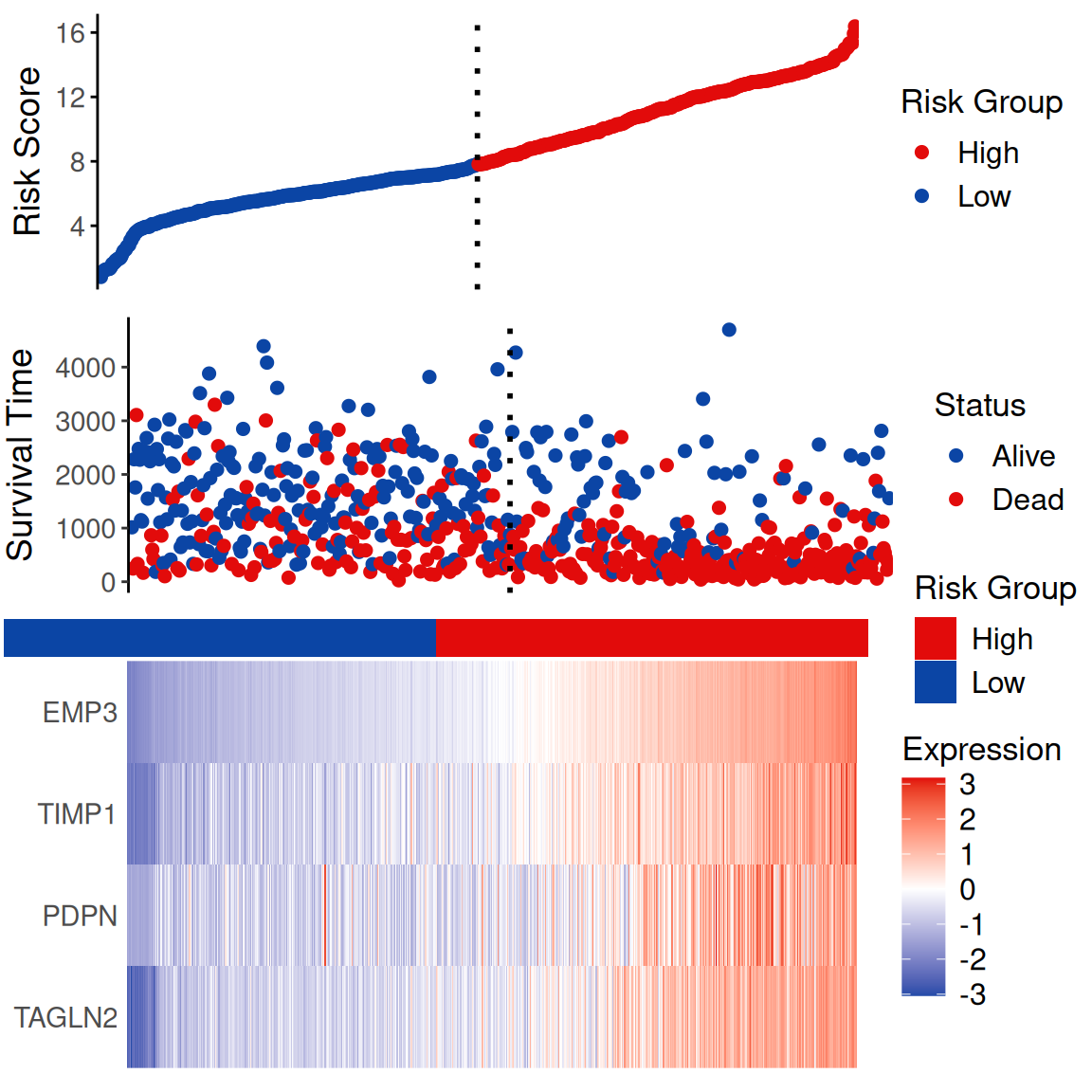

图 1: 风险因子分析
