漏斗图 (metafor)

作者

[编辑] 郑虎;

[审核] .

修改于

2026-01-27

注记

Hiplot 网站

本页面为 Hiplot Funnel Plot (metafor) 插件的源码版本教程，您也可以使用 Hiplot 网站实现无代码绘图，更多信息请查看以下链接:

https://hiplot.cn/basic/funnel-plot-metafor?lang=zh_cn

可以用于分析 Meta 分析结果中潜在偏倚因子。

环境配置

  • 系统: Cross-platform (Linux/MacOS/Windows)

  • 编程语言: R

  • 依赖包: data.table; jsonlite; metafor; ggplotify

# 安装包
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("metafor", quietly = TRUE)) {
  install.packages("metafor")
}
if (!requireNamespace("ggplotify", quietly = TRUE)) {
  install.packages("ggplotify")
}

# 加载包
library(data.table)
library(jsonlite)
library(metafor)
library(ggplotify)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-28
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version    date (UTC) lib source
 data.table * 1.18.0     2025-12-24 [1] RSPM
 ggplotify  * 0.1.3      2025-09-20 [1] RSPM
 jsonlite   * 2.0.0      2025-03-27 [1] RSPM
 Matrix     * 1.7-4      2025-08-28 [3] CRAN (R 4.5.2)
 metadat    * 1.4-0      2025-02-04 [1] RSPM
 metafor    * 4.8-0      2025-01-28 [1] RSPM
 numDeriv   * 2016.8-1.1 2019-06-06 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

数据准备

# 加载数据
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/funnel-plot-metafor/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# 整理数据格式
data2 <- escalc(ri=ri, ni=ni, data = data, measure="ZCOR")
res <- rma(yi, vi, data = data2)

# 查看数据
head(data)
              authors year  ni    ri controls          design   a_measure
1     Axelsson et al. 2009 109 0.187     none cross-sectional self-report
2     Axelsson et al. 2011 749 0.162     none cross-sectional self-report
3        Bruce et al. 2010  55 0.340     none     prospective       other
4  Christensen et al. 1999 107 0.320     none cross-sectional self-report
5 Christensen & Smith 1995  72 0.270     none     prospective       other
6        Cohen et al. 2004  65 0.000     none     prospective       other
  c_measure meanage quality
1     other   22.00       1
2       NEO   53.59       1
3       NEO   43.36       2
4     other   41.70       1
5       NEO   46.39       2
6       NEO   41.20       2

可视化

# 漏斗图
p <- as.ggplot(function(){
  funnel(x = res, main = "Funnel Plot (metafor)",
         level = c(90, 95, 99), shade = c("white","#a90e07","#d23e0b"), refline = 0)
  })

p

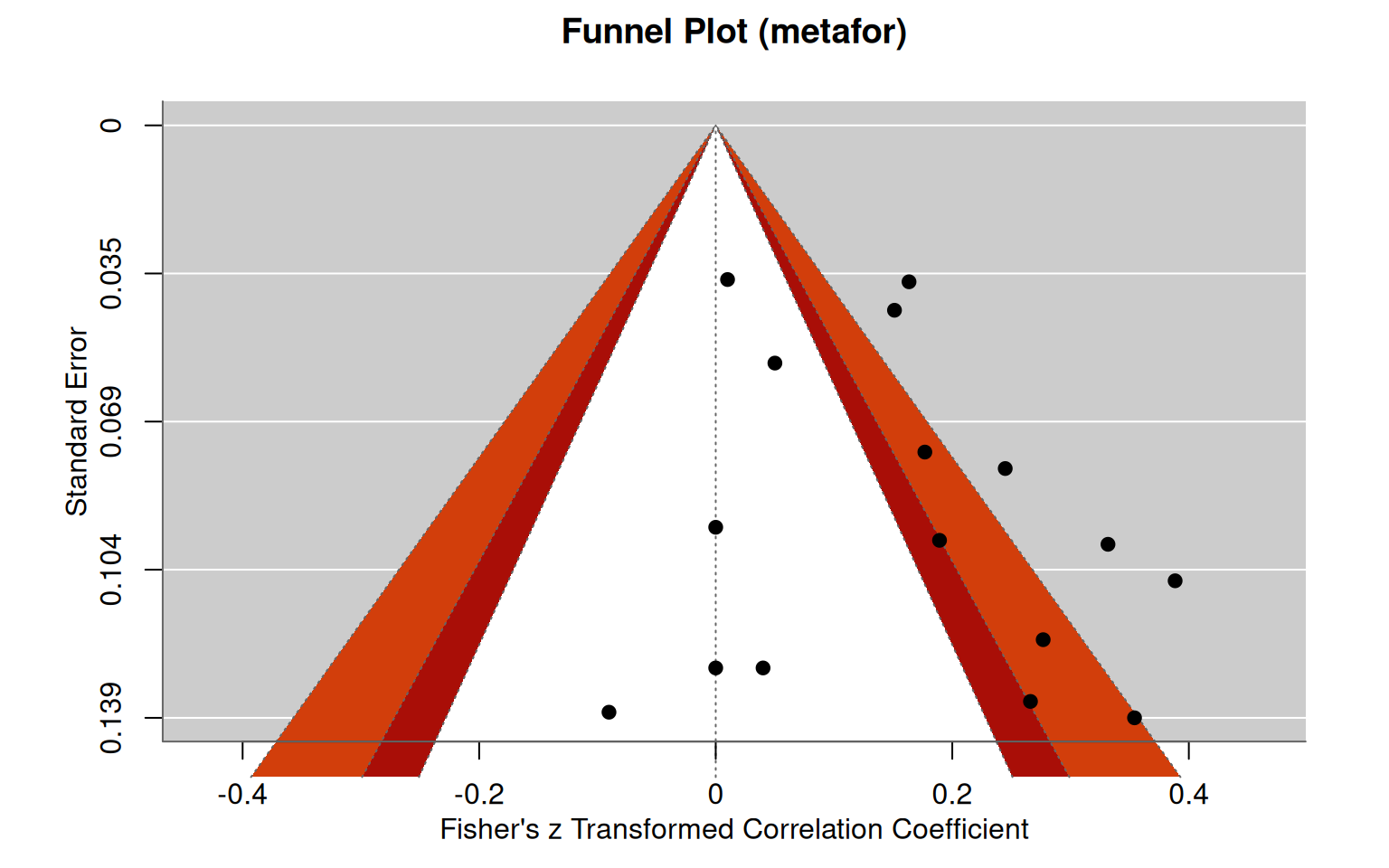

图 1: 漏斗图
