动画图

作者

[编辑] 黄可昕, 彭钰洁;

[贡献] 王诗翔, 罗鹏, 杨泓, 李柯馨, 石盈, 郑虎.

环境配置

  • 系统要求： 跨平台（Linux/MacOS/Windows）

  • 编程语言：R

  • 依赖包：gapminder; ggplot2; gganimate; gifski; Cairo; babynames; hrbrthemes; dplyr; viridis; tidyr;

# 安装包
if (!requireNamespace("gapminder", quietly = TRUE)) {
  install.packages("gapminder")
}
if (!requireNamespace("ggplot2", quietly = TRUE)) {
  install.packages("ggplot2")
}
if (!requireNamespace("gganimate", quietly = TRUE)) {
  install.packages("gganimate")
}
if (!requireNamespace("gifski", quietly = TRUE)) {
  install.packages("gifski")
}
if (!requireNamespace("Cairo", quietly = TRUE)) {
  install.packages("Cairo")
}
if (!requireNamespace("babynames", quietly = TRUE)) {
  install.packages("babynames")
}
if (!requireNamespace("hrbrthemes", quietly = TRUE)) {
  install.packages("hrbrthemes")
}
if (!requireNamespace("dplyr", quietly = TRUE)) {
  install.packages("dplyr")
}
if (!requireNamespace("viridis", quietly = TRUE)) {
  install.packages("viridis")
}
if (!requireNamespace("tidyr", quietly = TRUE)) {
  install.packages("tidyr")
}

# 加载包
library(gapminder)
library(ggplot2)
library(gganimate)
library(gifski)
library(Cairo)
library(babynames)
library(hrbrthemes)
library(dplyr)
library(viridis)
library(tidyr)

数据准备

主要利用R自带数据集和新冠感染数据进行绘图

# data_gapminder
data_gapminder <- gapminder

# data_babynames
data_babynames <- babynames

# data_covi19
data_covi19 <- readr::read_csv("https://bizard-1301043367.cos.ap-guangzhou.myqcloud.com/data_covi19.csv")
data_covi19$date <- c(6:12)
data_covi19 <- gather(data_covi19, key = "area", value = "cases", 2:7)

# data_covi19_bar
data_covi19_bar_10 <- filter(data_covi19, date == 10)
data_covi19_bar_10$frame <- rep("a",6)

data_covi19_bar_12 <- filter(data_covi19, date == 12)
data_covi19_bar_12$frame <- rep("b",6)

data_covi19_bar <- rbind(data_covi19_bar_10,data_covi19_bar_12)

可视化

1. 散点气泡动画图

1.1 以gapminder数据集为例

#散点气泡动画图----
p <- ggplot(data_gapminder, aes(gdpPercap, lifeExp, size = pop, color = continent)) +
  geom_point() +
  scale_x_log10() +
  theme_bw() +
  #绘制动画
  labs(title = 'Year: {frame_time}', x = 'GDP per capita', y = 'life expectancy') +
  transition_time(year) +
  ease_aes('linear')

animate(p, renderer = gifski_renderer())

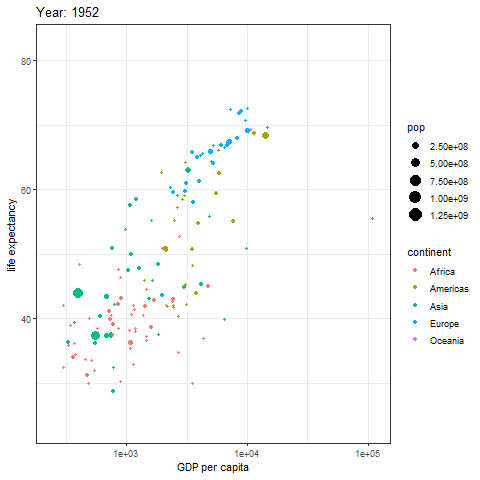

PointAnimation
图 1: 散点气泡动画图

上图为随着时间变化各地区首都寿命与GDP的散点动画图，其中散点大小表示人口，颜色表示地区。

1.2 分组散点气泡动画图

除了将分组展示在一张图上，还可以分开绘制

# 分组散点气泡图
p <- ggplot(data_gapminder, aes(gdpPercap, lifeExp, size = pop, colour = country)) +
  geom_point(alpha = 0.7, show.legend = FALSE) +
  scale_colour_manual(values = country_colors) +
  scale_size(range = c(2, 12)) +
  scale_x_log10() +
  facet_wrap(~continent) +  #按地区填色分组
  # 绘制动画图
  labs(title = 'Year: {frame_time}', x = 'GDP per capita', y = 'life expectancy') +
  transition_time(year) +
  ease_aes('linear')

animate(p, renderer = gifski_renderer())

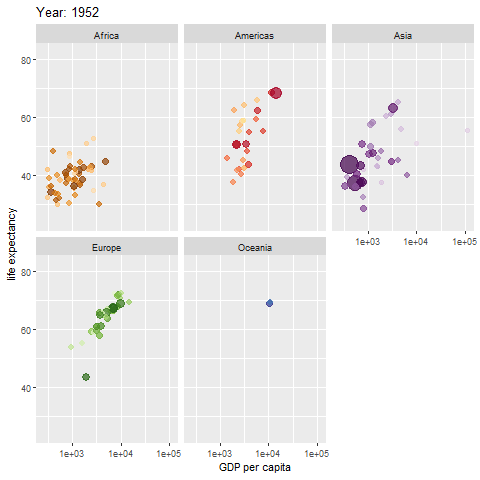

GroupPointAnimation
图 2: 分组散点气泡动画图

上图将不同地区分开绘制。

2. 区间过渡条形图

区间过渡条形图可以在两组数据间实现过渡动画。

# 区间过渡条形图----
a <- data.frame(group=c("A","B","C"), values=c(3,2,4), frame=rep('a',3))
b <- data.frame(group=c("A","B","C"), values=c(5,3,7), frame=rep('b',3))
data <- rbind(a,b)


# 区间过渡动画
p <- ggplot(data, aes(x=group, y=values, fill=group)) +
  geom_bar(stat='identity') +
  theme_bw() +
# 绘制动画
  transition_states(
    frame,  #frame作为区间依据
    transition_length = 2,
    state_length = 1
  ) +
  ease_aes('sine-in-out')

animate(p, renderer = gifski_renderer())

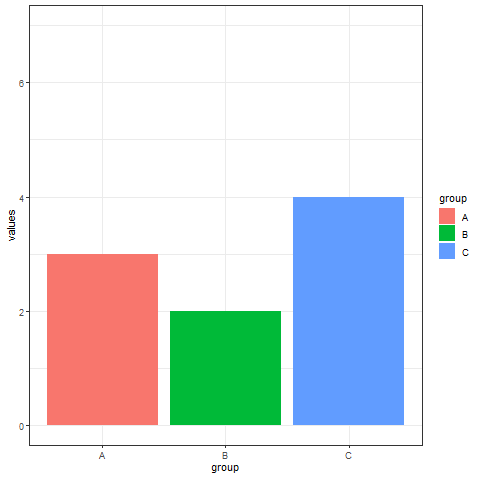

frame
图 3: 区间过渡条形图

实现两组数据的过渡动画。

以新冠感染数据为例

#以新冠数据为例
##筛选数据
data_covi19_bar <- subset(data_covi19_bar, cases > 50000)

p <- ggplot(data_covi19_bar, aes(x=area, y=cases, fill=area)) +
  geom_bar(stat='identity') +
  theme_bw() +
# 绘制动画
  transition_states(
    frame,
    transition_length = 2,
    state_length = 1
  ) +
  ease_aes('sine-in-out')

animate(p, renderer = gifski_renderer())

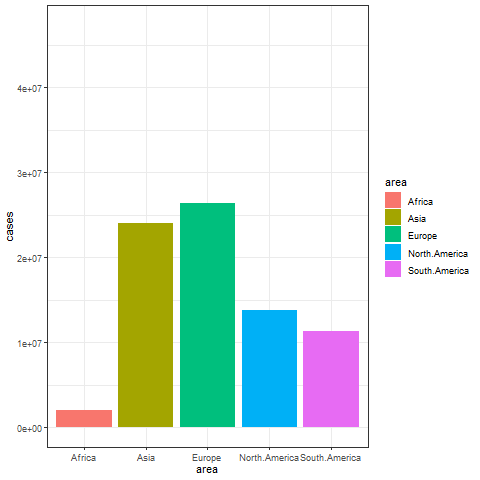

covi19
图 4: 以新冠感染数据为例

上图展示了2020年10月与12月各地区新增感染人数的过渡动画图。

3. 动态折线图

以babynames数据集为例

#动态折线图----
don <- data_babynames %>%
  filter(name %in% c("Ashley", "Patricia", "Helen")) %>%
  filter(sex=="F")


#绘图
don %>%
  ggplot( aes(x=year, y=n, group=name, color=name)) +
  geom_line() +
  geom_point() +
  scale_color_viridis(discrete = TRUE) +
  ggtitle("使用三种名字各年新生儿数的动态折线图") +
  theme_ipsum() +
  ylab("Number of babies born") +
  transition_reveal(year) #以时间作为动画依据

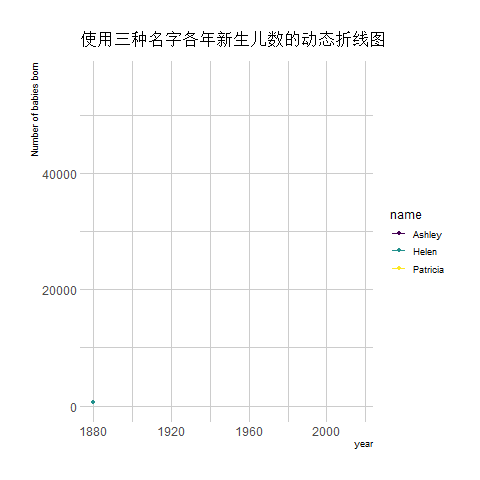

babynames
图 5: 动态折线图

上图展示了各年使用以上三种名字的新生儿的数量变化动画图。

以新冠感染数据为例

##新冠数据为例
data_covi19 %>%
  ggplot( aes(x=date, y=cases, group=area, color=area)) +
  geom_line() +
  geom_point() +
  scale_color_viridis(discrete = TRUE) +
  ggtitle("2020年下半年各地区新冠新增感染例数") +
  theme_ipsum() +
  ylab("cases") +
  xlab("month") +
  transition_reveal(date) #以时间作为动画依据

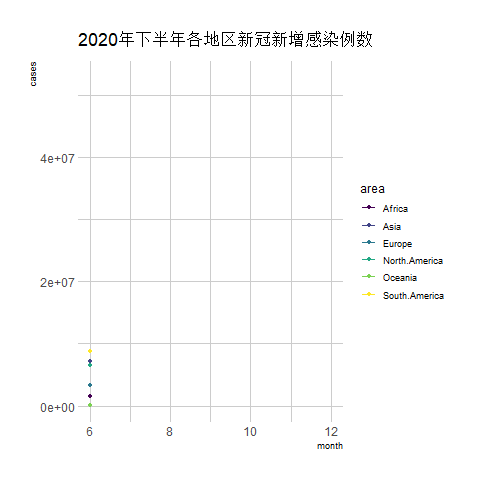

2covi19
图 6: 以新冠感染数据为例

上图为2020年下半年各地区新冠新增感染例数的折线动画图，横坐标表示月份。

应用场景

动画图可应用于各种shiny网页，实现数据的动态更新与实况展示。

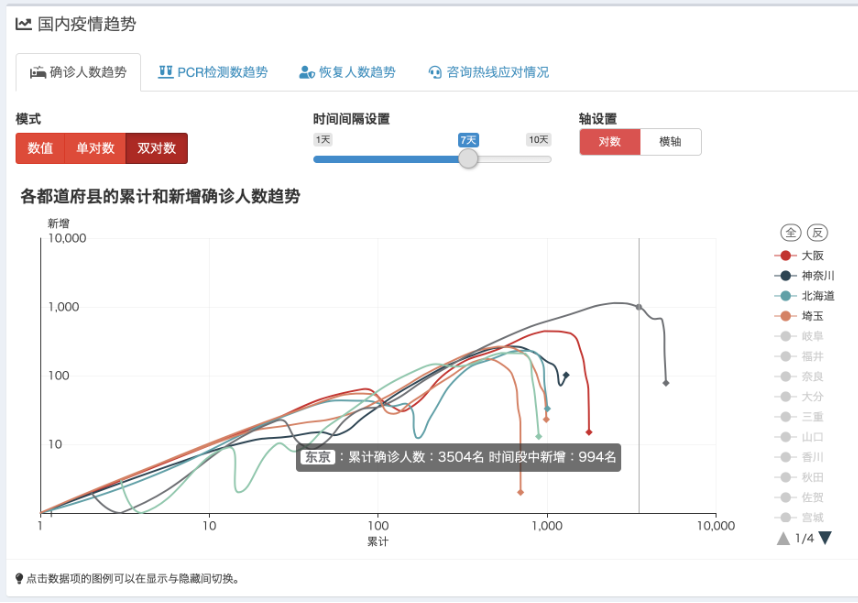

AnimationApp1
图 7: 动画图应用场景

上图为疫情期间实时展现日本疫情动态的shiny网页工具GitHub - swsoyee/2019-ncov-japan: 🦠 Interactive dashboard for real-time recording of COVID-19 outbreak in Japan

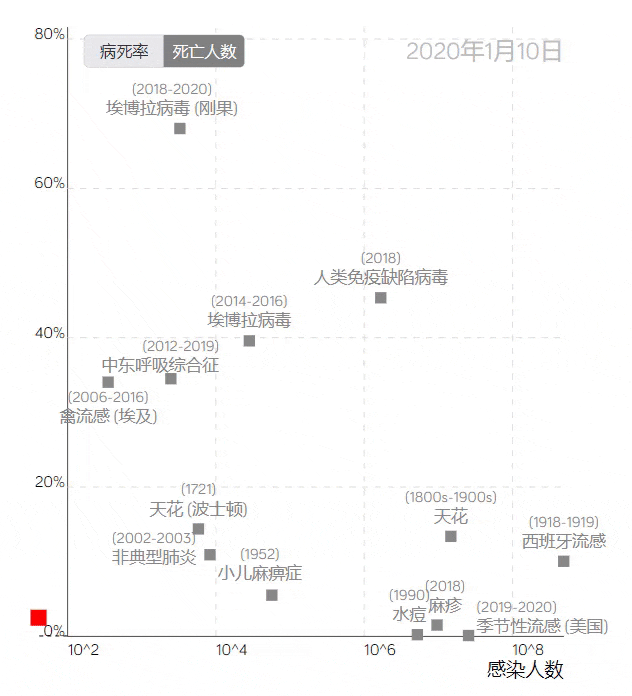

AnimationApp2
图 8: 动画图应用场景

北京大学可视化与可视分析实验室研发的疫情轨迹图。

上图的疫情轨迹线从病死率和感染人数两个维度出发，以红色方块代表新冠肺炎，将其置于其他传染病的数据中间，为疫情发展给出一个直观的侧写，明确地反映新冠肺炎和其他大规模的流行病之间的差异。
