树型图

作者

[编辑] 郑虎;

[审核] .

修改于

2026-01-27

注记

Hiplot 网站

本页面为 Hiplot Treemap 插件的源码版本教程，您也可以使用 Hiplot 网站实现无代码绘图，更多信息请查看以下链接:

https://hiplot.cn/basic/treemap?lang=zh_cn

树形图是一种用图形形式来表示层次结构的树形结构图。

环境配置

  • 系统: Cross-platform (Linux/MacOS/Windows)

  • 编程语言: R

  • 依赖包: data.table; jsonlite; treemap

# 安装包
if (!requireNamespace("data.table", quietly = TRUE)) {
  install.packages("data.table")
}
if (!requireNamespace("jsonlite", quietly = TRUE)) {
  install.packages("jsonlite")
}
if (!requireNamespace("treemap", quietly = TRUE)) {
  install.packages("treemap")
}

# 加载包
library(data.table)
library(jsonlite)
library(treemap)
sessioninfo::session_info("attached")
─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.5.2 (2025-10-31)
 os       Ubuntu 24.04.3 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  C.UTF-8
 ctype    C.UTF-8
 tz       UTC
 date     2026-01-28
 pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
 quarto   1.8.27 @ /usr/local/bin/quarto

─ Packages ───────────────────────────────────────────────────────────────────
 package    * version date (UTC) lib source
 data.table * 1.18.0  2025-12-24 [1] RSPM
 jsonlite   * 2.0.0   2025-03-27 [1] RSPM
 treemap    * 2.4-4   2023-05-25 [1] RSPM

 [1] /home/runner/work/_temp/Library
 [2] /opt/R/4.5.2/lib/R/site-library
 [3] /opt/R/4.5.2/lib/R/library
 * ── Packages attached to the search path.

──────────────────────────────────────────────────────────────────────────────

数据准备

载入数据为不同分组及其数据。

# 加载数据
data <- data.table::fread(jsonlite::read_json("https://hiplot.cn/ui/basic/treemap/data.json")$exampleData$textarea[[1]])
data <- as.data.frame(data)

# 查看数据
head(data)
   group value
1 Group1    13
2 Group2    34
3 Group3    21
4 Group4    43

可视化

# 树型图
treemap(data, index = colnames(data)[1], vSize = colnames(data)[2],
        vColor = colnames(data)[1], type = "index", title = "",
        algorithm = "pivotSize", sortID = colnames(data)[1], border.lwds = 1,
        fontcolor.labels = "#000000", inflate.labels = F, overlap.labels = 0.5,
        fontfamily.title = "Arial", fontfamily.legend = "Arial",
        fontfamily.labels = "Arial",
        palette = c("#E64B35FF","#4DBBD5FF","#00A087FF","#3C5488FF","#F39B7FFF"),
        aspRatio = 6 / 6)

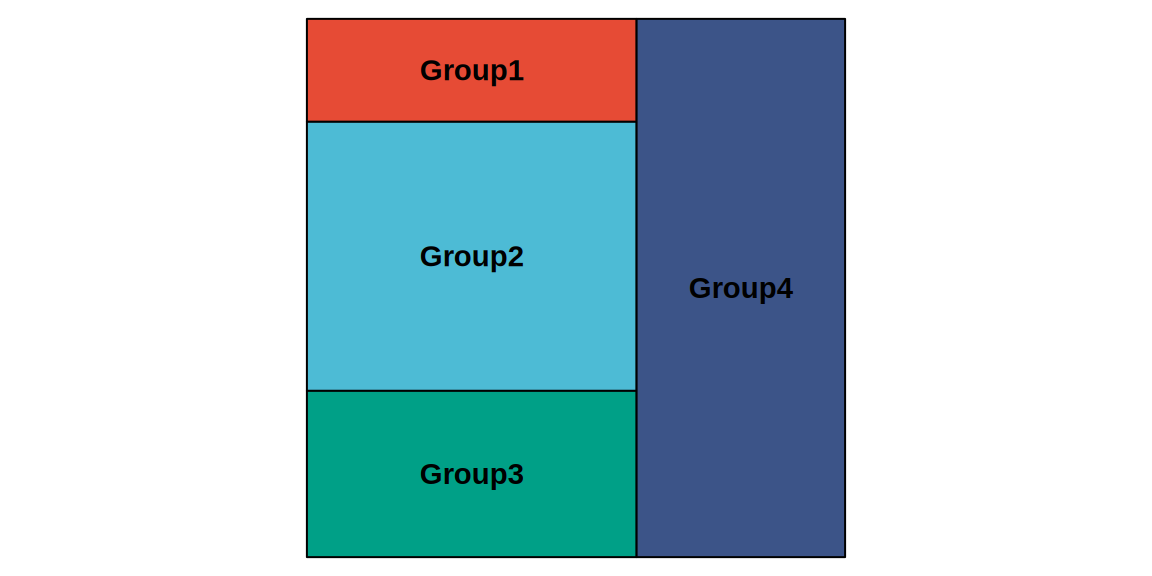

图 1: 树型图

不同颜色表示不同组群 ，不同面积表示数据及占比。
