# 安装包
if (!requireNamespace("igraph", quietly = TRUE)) {
install.packages("igraph")
}
if (!requireNamespace("cowplot", quietly = TRUE)) {
install.packages("cowplot")
}
if (!requireNamespace("RColorBrewer", quietly = TRUE)) {
install.packages("RColorBrewer")
}
if (!requireNamespace("networkD3", quietly = TRUE)) {
install.packages("networkD3")
}
# 加载包
library(igraph)
library(cowplot)
library(RColorBrewer)
library(networkD3)网络图

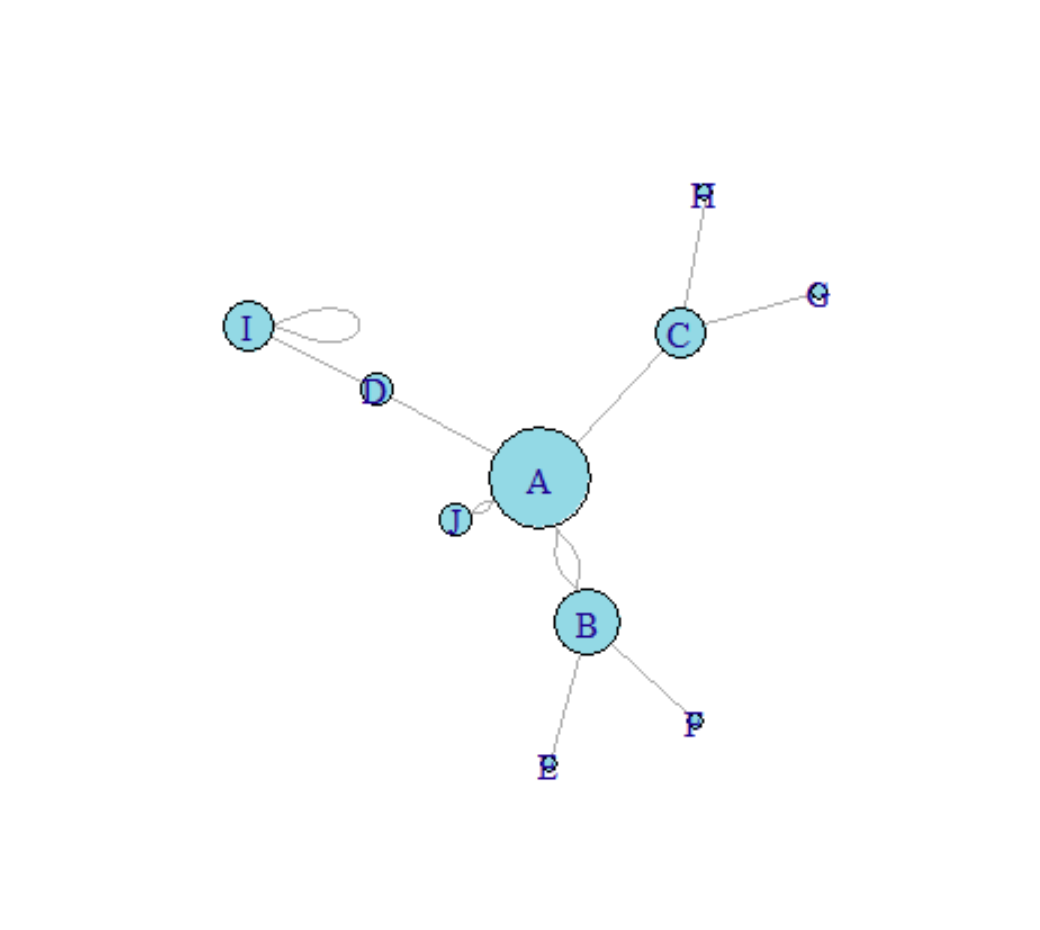

网络图是一种图解模型，形状如同网络，由节点和链接组成，其中链接可为有向或无向。
示例
环境配置
系统要求： 跨平台（Linux/MacOS/Windows）
编程语言：R
依赖包：
igraph;cowplot;RColorBrewer;networkD3
数据准备
主要利用R自带数据集进行绘制
# network_pmat
## matcars数据集各指标相关性分析结果
data_pmat_links<- readr::read_csv("https://bizard-1301043367.cos.ap-guangzhou.myqcloud.com/data_mat.csv")
data_pmat_links <- na.omit(data_pmat_links)
colnames(data_pmat_links) <- c("from", "to", "p.log")
data_pmat_node <- colnames(mtcars)
network_pmat <- graph_from_data_frame(d=data_pmat_links, vertices=data_pmat_node, directed=F)
# data_mat
## mtcars聚类分析
## 计算相关系数矩阵
data_mat <- cor(t(mtcars[,c(1,3:6)]))
## 筛选高相关数据
data_mat[data_mat<0.995] <- 0网络图的输入数据类型
网络图的数据输入主要有四种：领接矩阵、入射矩阵、边缘矩阵和连接的文本列表。
这里我们用随机数据进行演示
##邻接矩阵（方阵）-----
set.seed(10)
data1 <- matrix(sample(0:2, 25, replace=TRUE), nrow=5)
colnames(data1) = rownames(data1) = LETTERS[1:5]
#创建graph图
network1 <- graph_from_adjacency_matrix(data1)
data1 A B C D E
A 2 2 1 2 2
B 0 2 2 1 1
C 1 2 1 2 1
D 2 2 1 1 0
E 1 2 0 2 0##入射矩阵（行列不一定相等，默认情况由行定向到列）-----
set.seed(1)
data2 <- matrix(sample(0:2, 15, replace=TRUE), nrow=3)
colnames(data2) <- letters[1:5] #小写字母
rownames(data2) <- LETTERS[1:3] #大写字母
#创建graph图
network2 <- graph_from_incidence_matrix(data2)Warning: `graph_from_incidence_matrix()` was deprecated in igraph 1.6.0.
ℹ Please use `graph_from_biadjacency_matrix()` instead.data2 a b c d e
A 0 1 2 2 0
B 2 0 1 2 0
C 0 2 1 0 1##边缘列表（两列分别表示源和目标）-----
links <- data.frame(
source=c("A","A", "A", "A", "A","F", "B"),
target=c("B","B", "C", "D", "F","A","E")
)
#创建graph图
network3 <- graph_from_data_frame(d=links, directed=F)
links source target
1 A B
2 A B
3 A C
4 A D
5 A F
6 F A
7 B E##连接的文本列表----

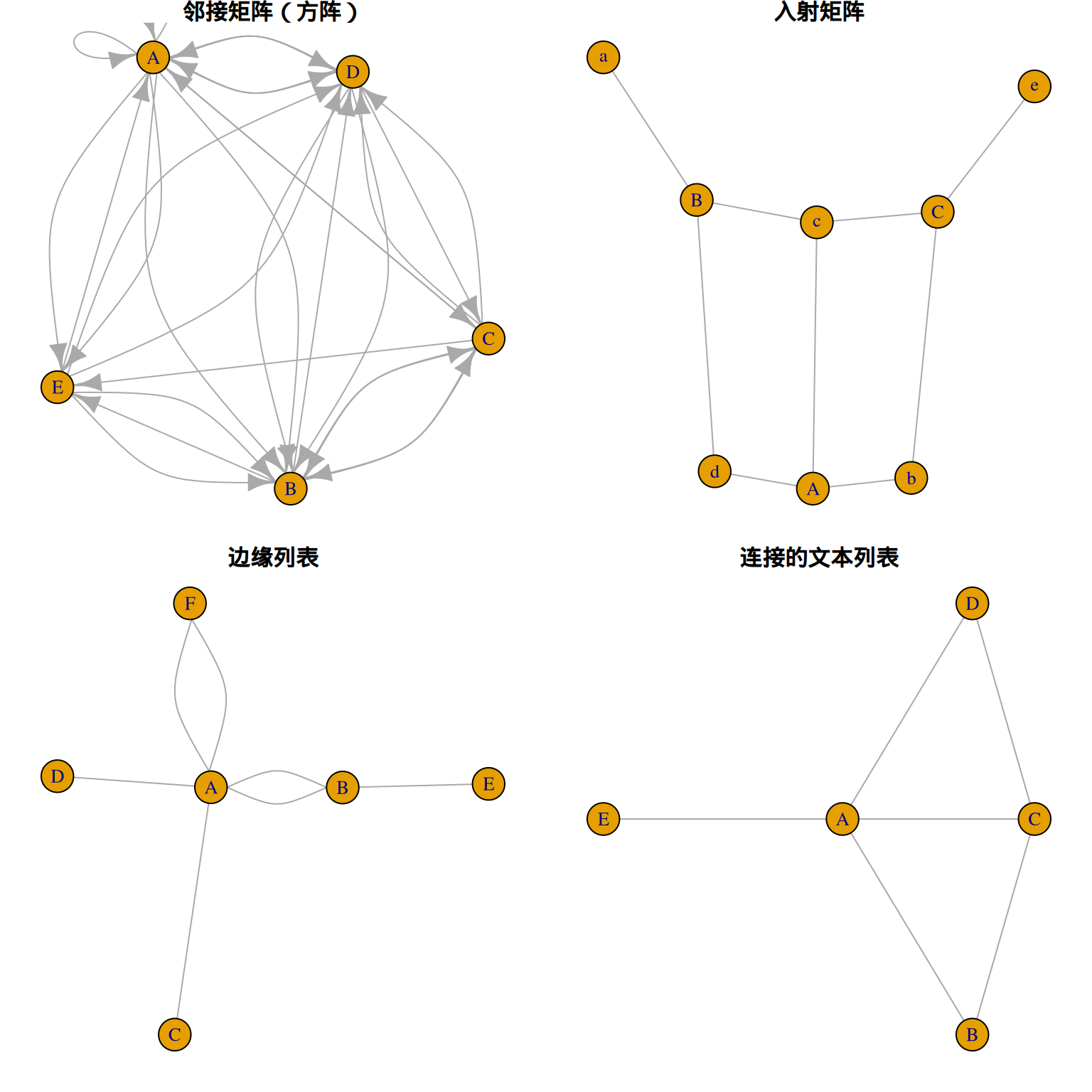

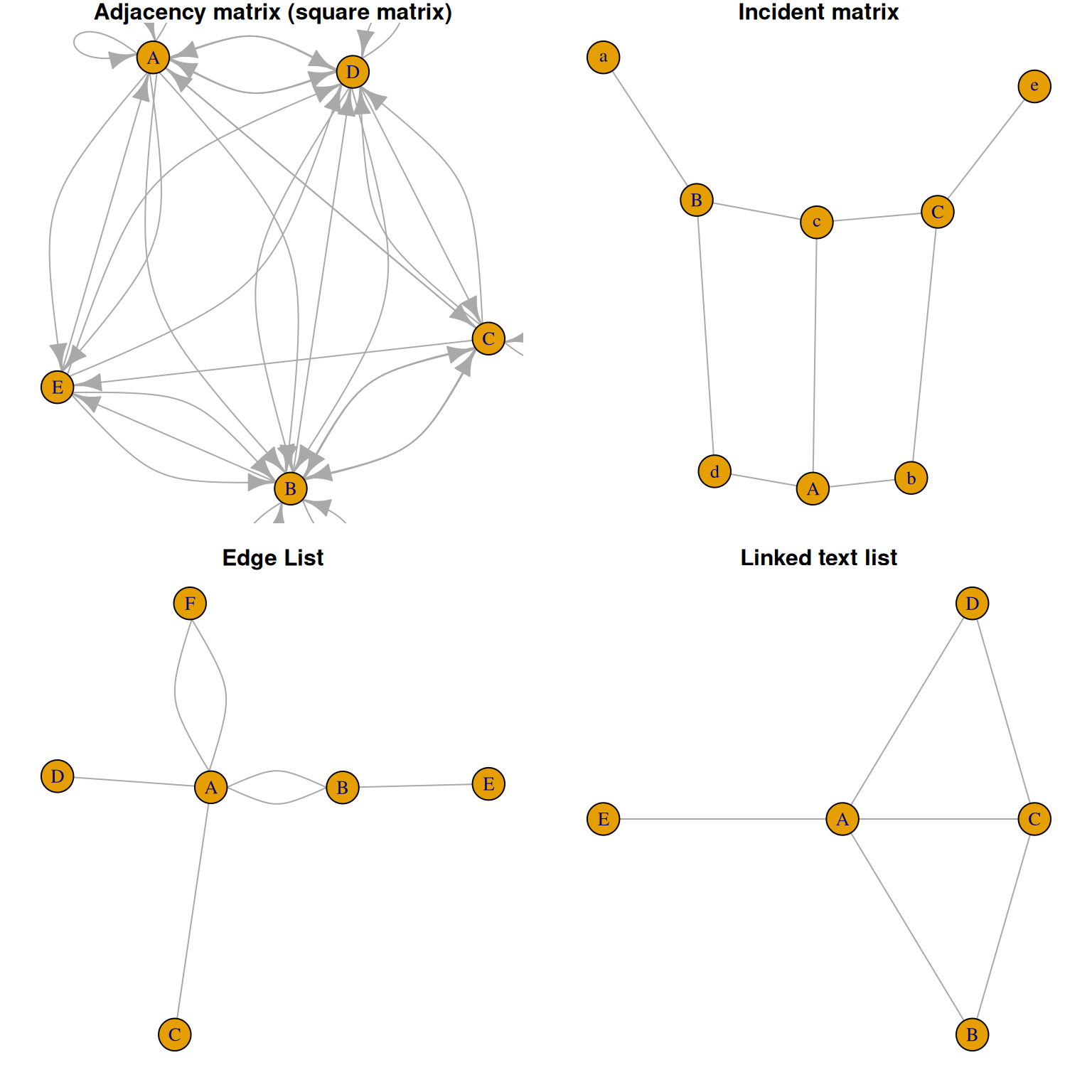

network4 <- graph_from_literal( A-B-C-D, E-A-E-A, D-C-A, D-A-D-C )四种数据类型绘图实例
#绘制----
par(mfrow=c(2,2), mar=c(1,1,1,1))
plot(network1, main="邻接矩阵（方阵）")
plot(network2, main="入射矩阵")
plot(network3, main="边缘列表")
plot(network4, main="连接的文本列表")
可视化

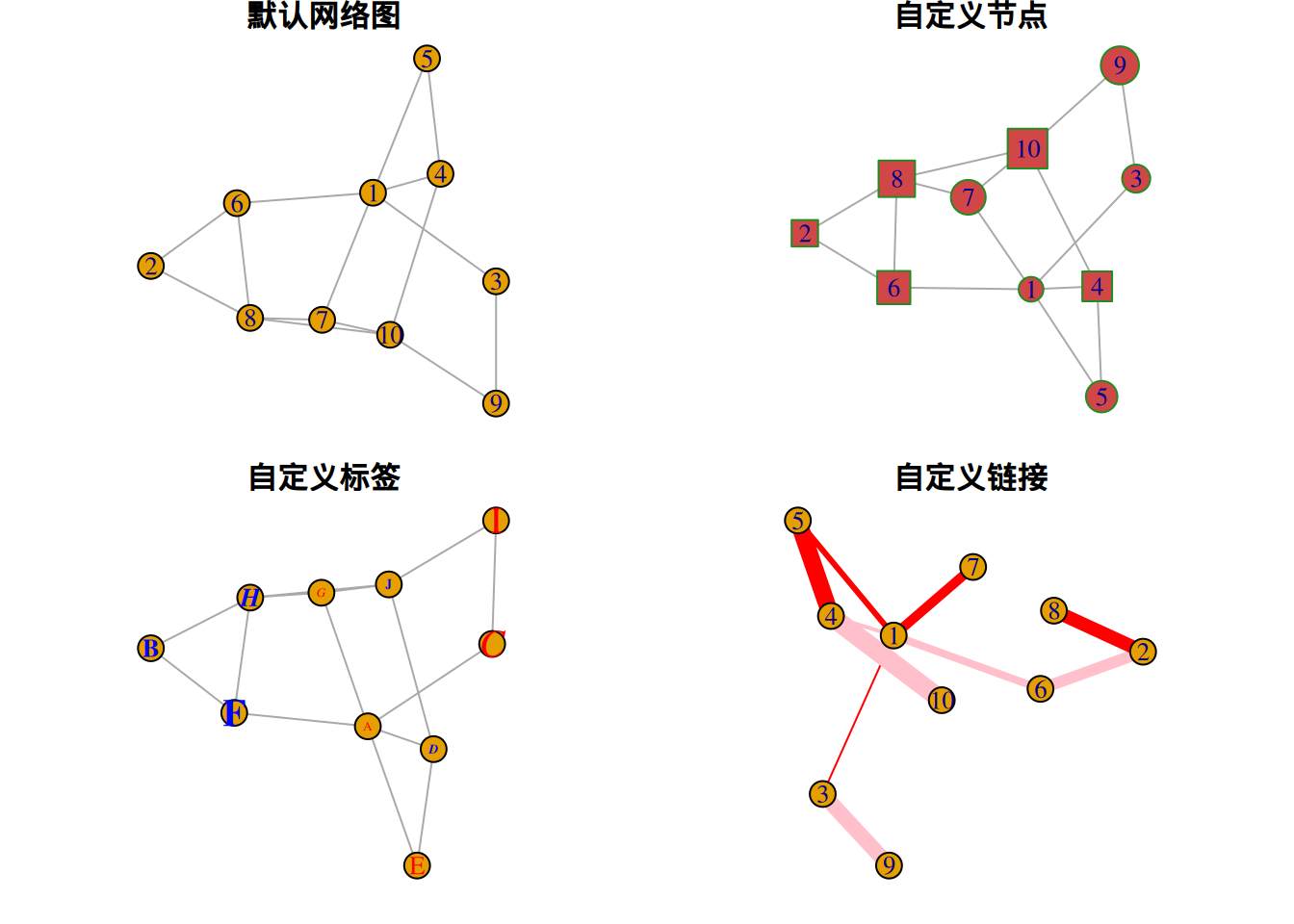

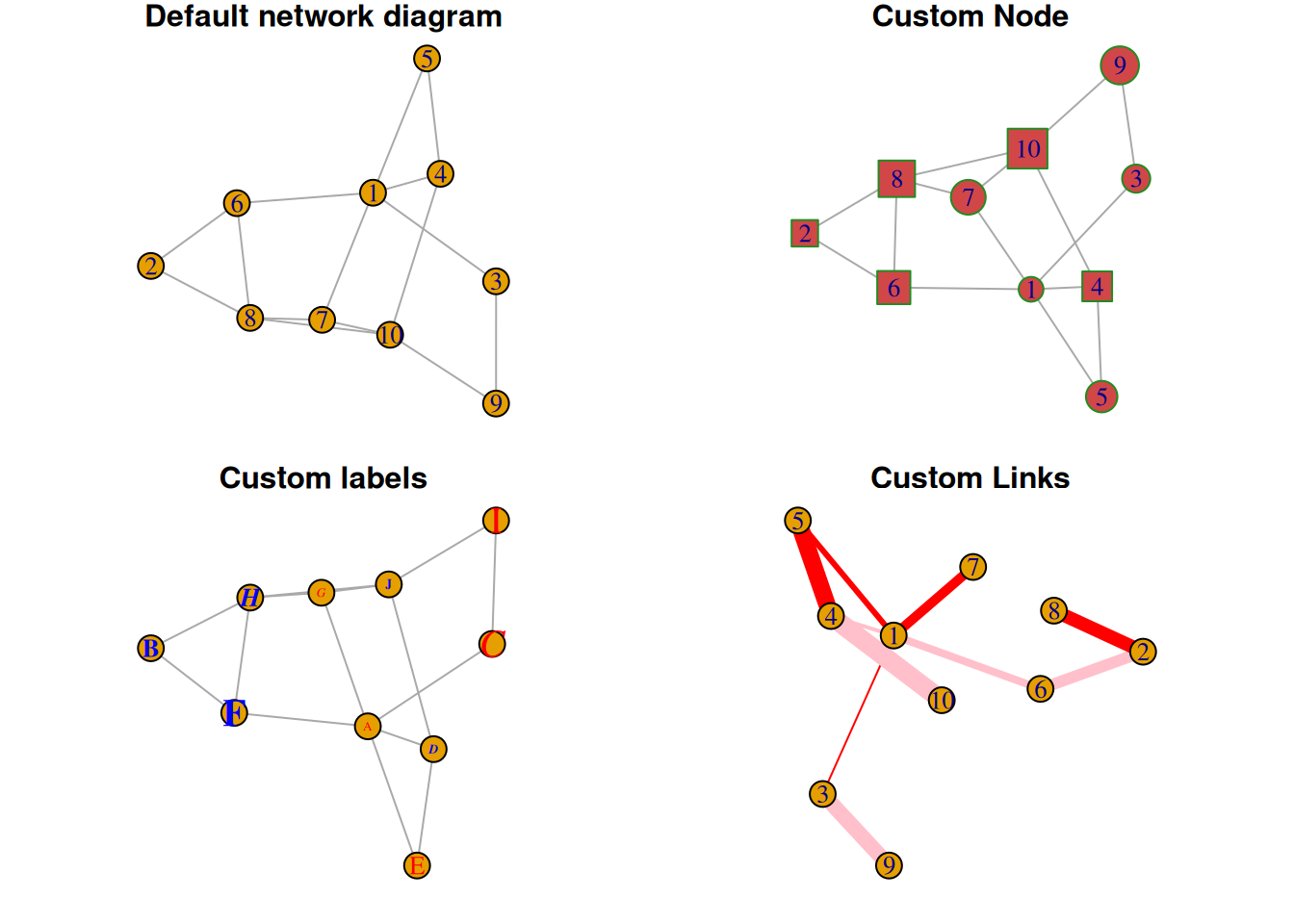

1. 节点、链接、标签自定义
#自定义----
#生成随机数据
set.seed(1)
data3 <- matrix(sample(0:1, 100, replace=TRUE, prob=c(0.8,0.2)), nc=10)
network5 <- graph_from_adjacency_matrix(data3 , mode='undirected', diag=F )
par(mfrow=c(2,2), mar=c(1,1,1,1))
#默认网络图
plot(network5, main = "默认网络图")
#自定义节点
plot(network5,
vertex.color = rgb(0.8,0.2,0.2,0.9), # 颜色
vertex.frame.color = "Forestgreen", # 边框颜色
vertex.shape=c("circle","square"), # 节点形状，可选：“none”, “circle”, “square”, “csquare”, “rectangle” “crectangle”, “vrectangle”, “pie”, “raster”, “sphere”
vertex.size=c(15:24),
main = "自定义节点"
)
#自定义标签
plot(network5,
vertex.label=LETTERS[1:10], # 标签内容
vertex.label.color=c("red","blue"),
vertex.label.family="Times", # 字体
vertex.label.font=c(1,2,3,4), # 字体
vertex.label.cex=c(0.5,1,1.5), # 字体大小
vertex.label.dist=0, # 标签与节点的距离
vertex.label.degree=0, # 标签位置
main = "自定义标签"
)
#自定义链接
plot(network5,
edge.color=rep(c("red","pink"),5), # 链接颜色
edge.width=seq(1,10), # 链接宽度
edge.arrow.size=1, # 箭头大小
edge.arrow.width=1, # 箭头宽度
edge.lty=c("solid"), # 链接线条类型
main = "自定义链接"
)

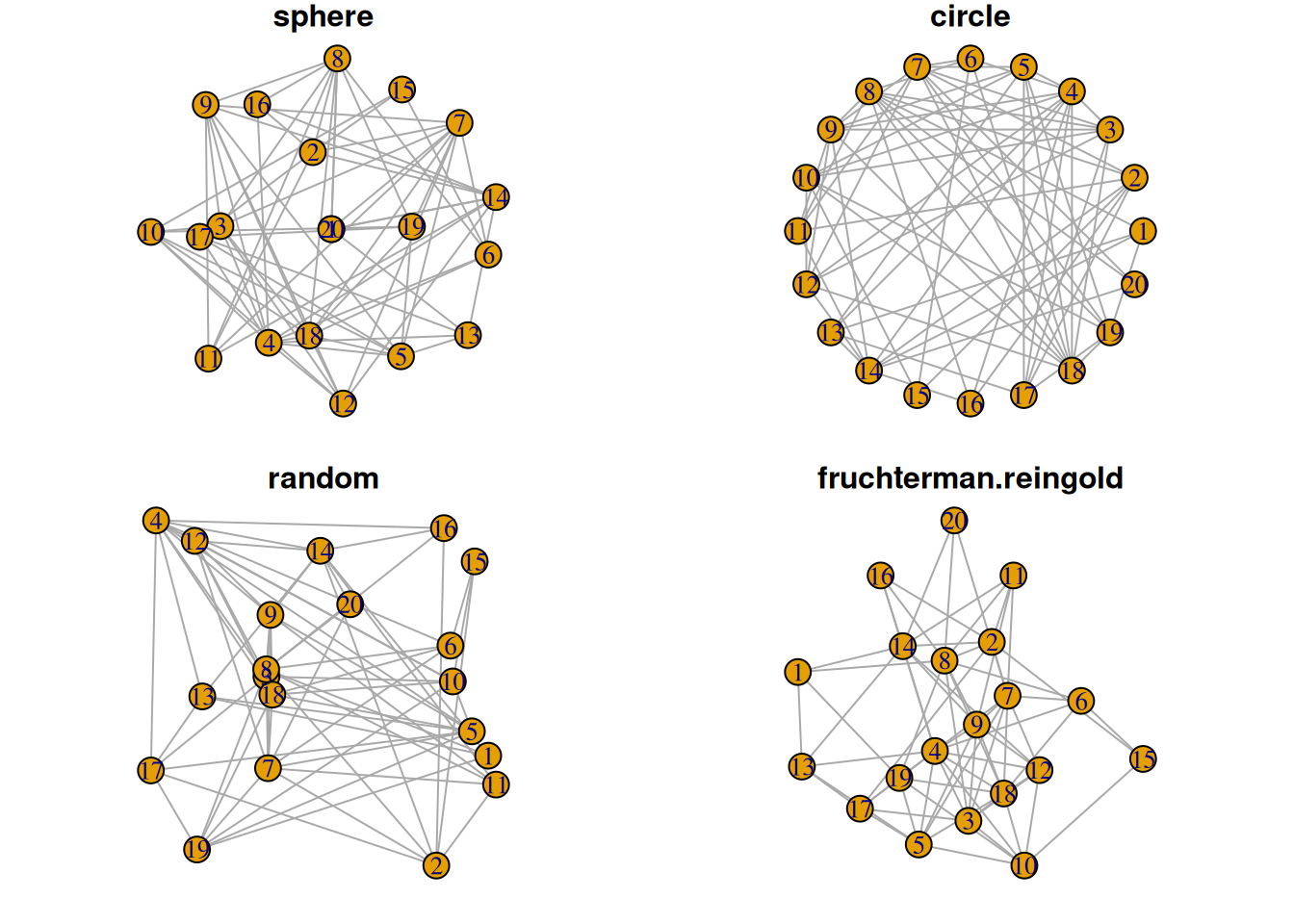

2. 布局
可以根据需要使用不同的网络图布局，比如sphere、circle、random、fruchterman.reingold等。
#布局（layout）----
#生成随机数据
data4 <- matrix(sample(0:1, 400, replace=TRUE, prob=c(0.8,0.2)), nrow=20)
network6 <- graph_from_adjacency_matrix(data4 , mode='undirected', diag=F )
#不同的layout布局
par(mfrow=c(2,2), mar=c(1,1,1,1))
plot(network6, layout=layout.sphere, main="sphere")
plot(network6, layout=layout.circle, main="circle")
plot(network6, layout=layout.random, main="random")
plot(network6, layout=layout.fruchterman.reingold, main="fruchterman.reingold")
3. 变量映射到节点和连接

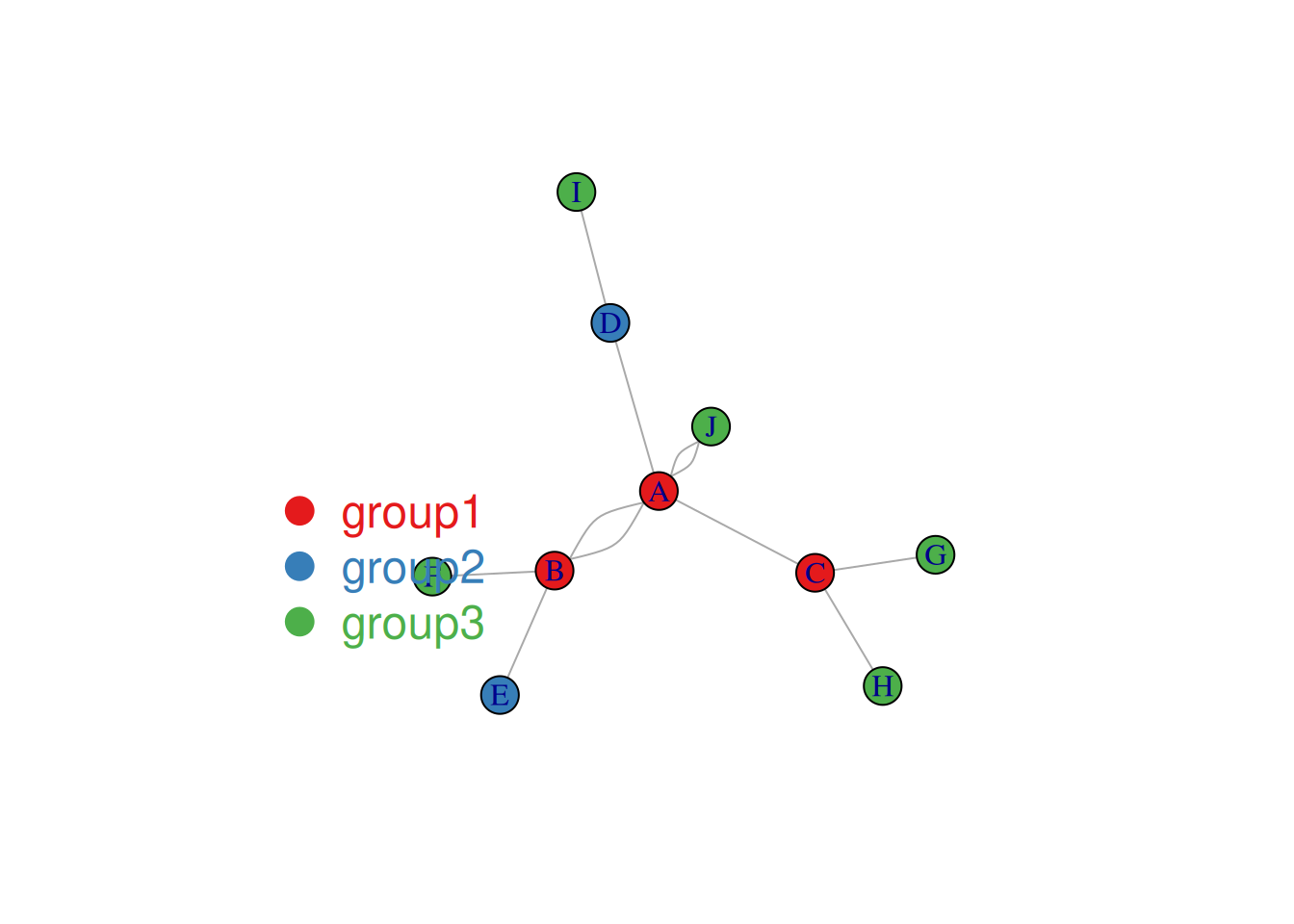

3.1 变量分类映射到节点
##映射到节点
#生成随机数据
links <- data.frame(
source=c("A","A", "A", "A", "A","J", "B", "B", "C", "C", "D","I"),
target=c("B","B", "C", "D", "J","A","E", "F", "G", "H", "I","I"),
importance=(sample(1:4, 12, replace=T))
)
nodes <- data.frame(
name=LETTERS[1:10],
carac=c( rep("group1",3),rep("group2",2), rep("group3",5))
)
#igraph图
network <- graph_from_data_frame(d=links, vertices=nodes, directed=F)
#颜色
coul <- brewer.pal(3, "Set1")
#颜色向量
my_color <- coul[as.numeric(as.factor(V(network)$carac))]
#绘图
plot(network, vertex.color=my_color)
#添加标签
legend("bottomleft",
legend=levels(as.factor(V(network)$carac)) ,
col = coul , bty = "n", pch=20 , pt.cex = 3, cex = 1.5, text.col=coul ,
horiz = FALSE, inset = c(0.1, 0.1))
上图中节点颜色代表分类

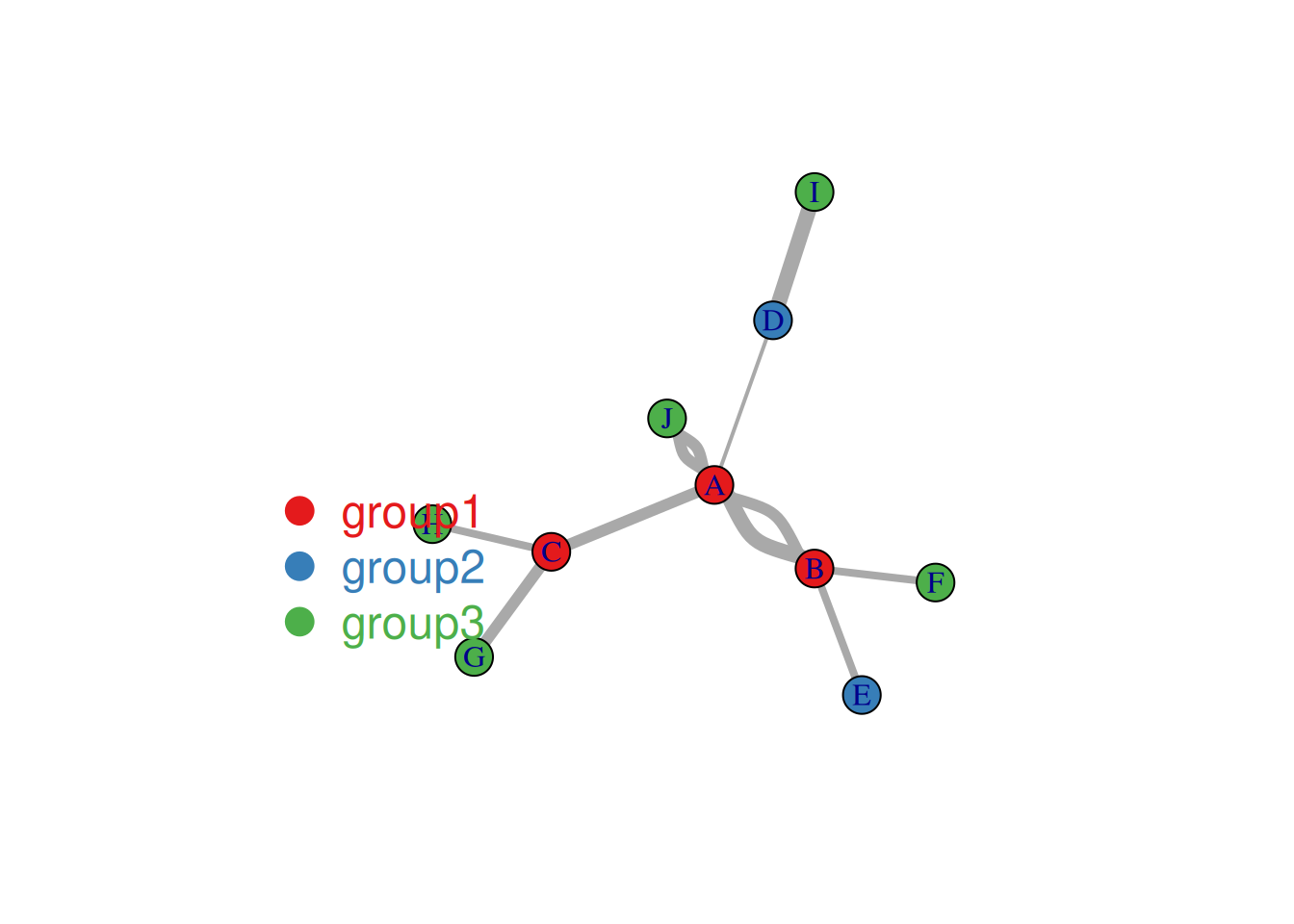

3.2 变量映射到链接
## 映射到链接
plot(network, vertex.color=my_color, edge.width=E(network)$importance*2 )
legend("bottomleft",
legend=levels(as.factor(V(network)$carac)) ,
col = coul ,
bty = "n",
pch=20 ,
pt.cex = 3,
cex = 1.5,
text.col=coul,
horiz = FALSE,
inset = c(0.1, 0.1))
上图展示了mtcars数据集各指标的相关性分析结果（α=0.01），使用边缘列表的数据输入类型。链接表示两个指标具有相关性，链接的粗细代表p值的-log10，链接越粗表示结果越可靠。

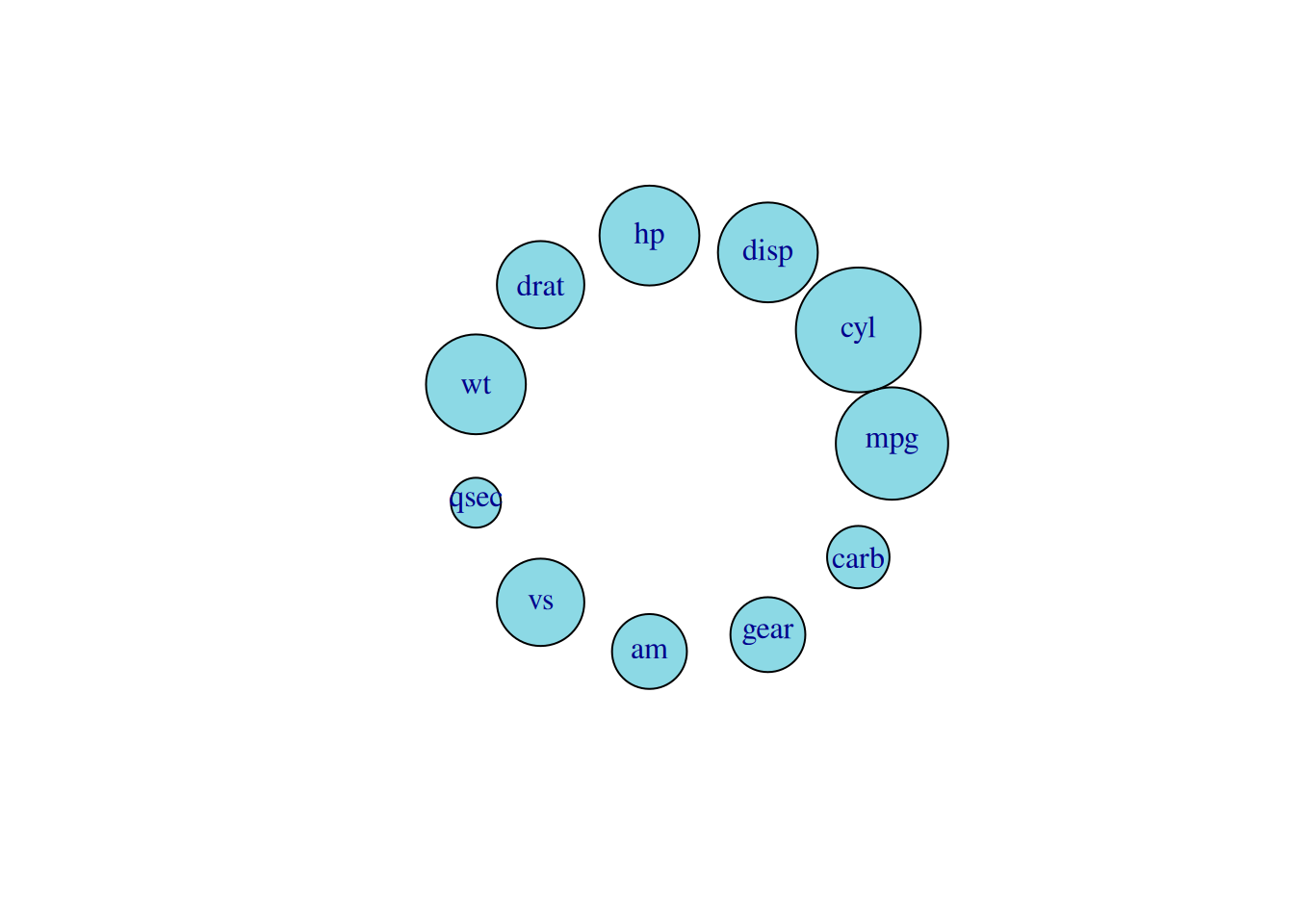

4. 节点大小映射连接数
这里可以使用degree函数计算连接数
##节点大小对应链接数（degree函数）----
#计算链接数
deg <- degree(network_pmat, mode="all")
#绘图
plot(network_pmat,
vertex.size=deg*6,
layout=layout.circle,
vertex.color=rgb(0.1,0.7,0.8,0.5),
edge.width=E(network_pmat)$value*0.5)
上图中节点大小代表该节点的链接数（与之相关的指标数）。

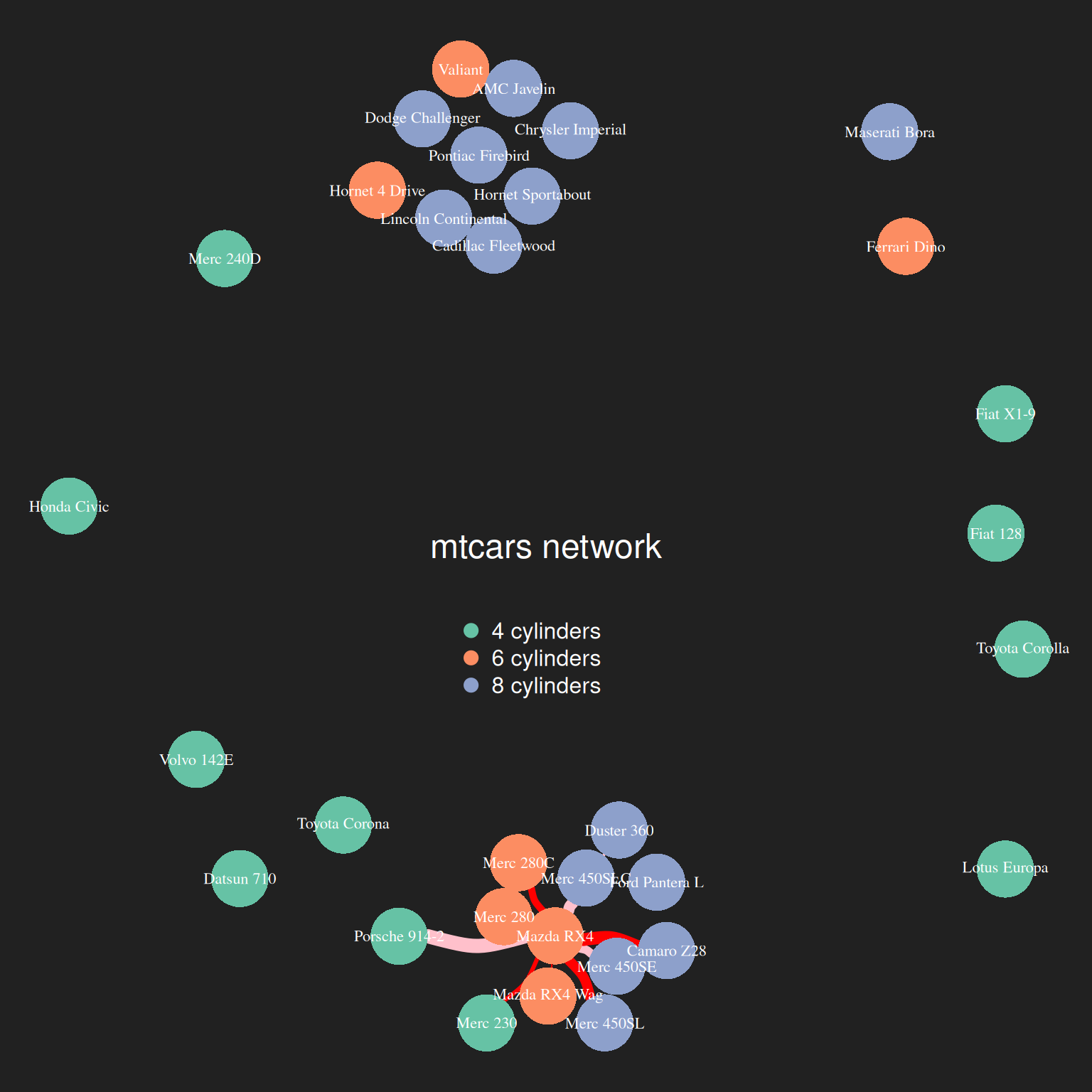

5. 聚类结果可视化
这里以mtcars数据集为例进行聚类分析
# 聚类结果可视化----
# 建立igraph图
network <- graph_from_adjacency_matrix( data_mat, weighted=T, mode="undirected", diag=F)
# 颜色，建立映射，不同颜色表示不同cyl
coul <- brewer.pal(nlevels(as.factor(mtcars$cyl)), "Set2")
my_color <- coul[as.numeric(as.factor(mtcars$cyl))]
# 绘制
par(bg="grey13", mar=c(0,0,0,0))
set.seed(4)
plot(network,
vertex.size=12,
vertex.color=my_color,
vertex.label.cex=0.7,
vertex.label.color="white",
vertex.frame.color="transparent",
edge.color=rep(c("red","pink"),5),
edge.width=seq(1,10),
edge.arrow.size=1,
edge.arrow.width=1,
edge.lty=c("solid"),
edge.curved=0.3
)
# 添加标题与标签
text(0,0,"mtcars network",col="white", cex=1.5)
legend(x=-0.2, y=-0.12,
legend=paste( levels(as.factor(mtcars$cyl)), " cylinders", sep=""),
col = coul ,
bty = "n", pch=20 , pt.cex = 2, cex = 1,
text.col="white" , horiz = F)
上图展示了以mpg、disp、gp、drat为依据对mtcars数据集进行聚类分析的结果。不同颜色表示不同的cyl。
6. 3D交互网络图
使用networkD3包可以实现网络图的3D交互。
##交互（networkD3）----
p <- simpleNetwork(data_pmat_links, height="100px", width="100px")
p3D交互网络图
可以利用交互实现高亮显示、拖拽等功能（上图为拖拽carb节点）
应用场景

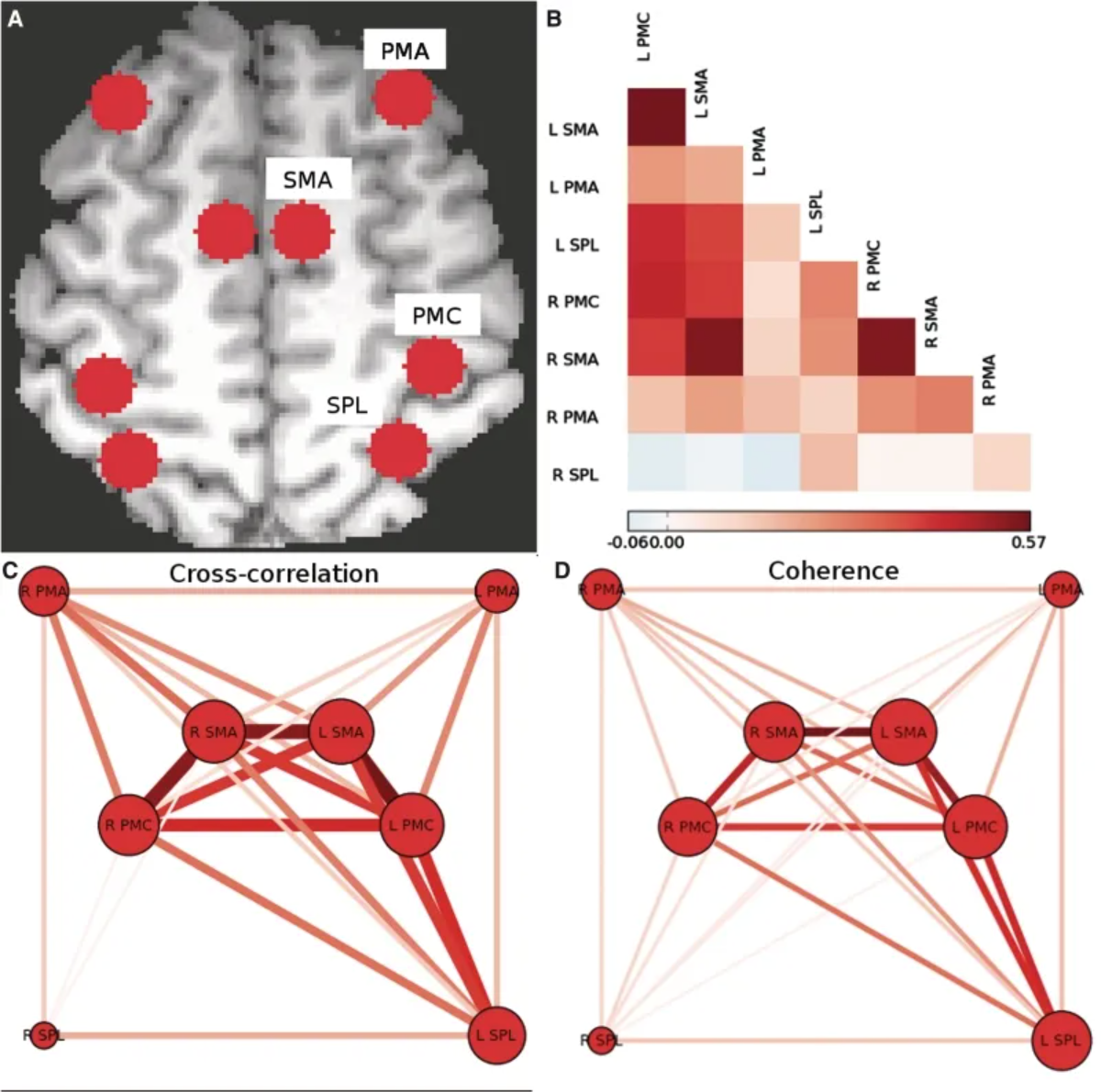

上图为实验对照组受试者的运动网络。（A）在每个半球的双侧识别出与 PMC、SMA、PMA 和 SPL 对应的区域的质心的单个体素。（B）计算每个区域之间的成对 Pearson 互相关系数，构建邻接矩阵。（C）从互相关的邻接矩阵构建加权无向网络图。（D）使用 0.08–0.15 Hz 频段的一致性构建邻接矩阵，构建加权无向网络图，与互相关得出的图相似。 [1]
